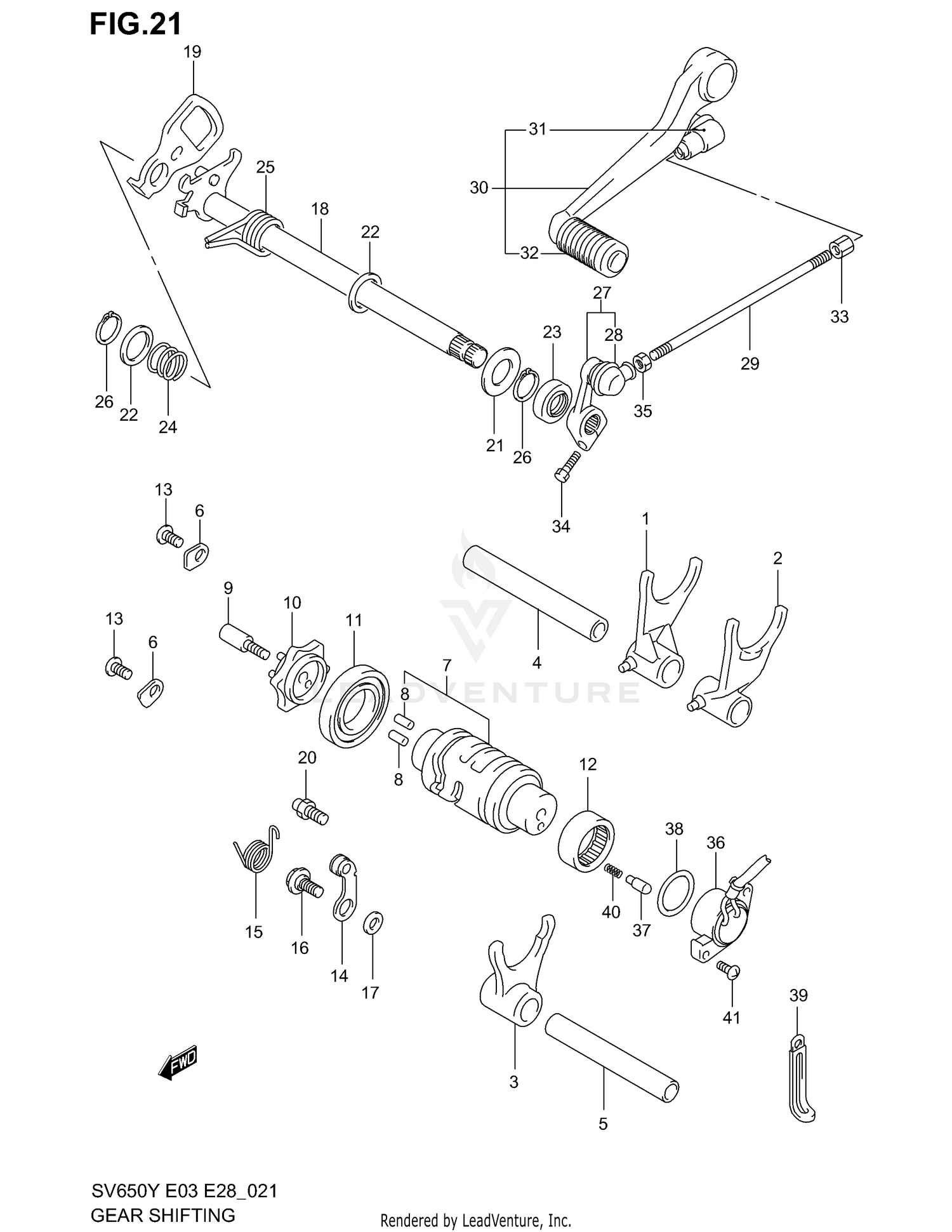

2000 Suzuki SV 650 GEAR SHIFTING OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 FORK, GEAR SHIFT NO.1 25211-42E10	$82.92
Available: Ships in 7-12 days. Add to View Price
#2 FORK, GEAR SHIFT NO.2 25221-42E10	$82.92
Available: Ships in 7-12 days. Add to View Price
#3 FORK, GEAR SHIFT NO.3 25231-42E10	$84.30
Available: Ships in 7-12 days. Add to View Price
#4 SHAFT, GEAR SHIFT FORK NO.1 25411-26D01	$22.49
Available: Ships in 7-12 days. Add to View Price
#5 SHAFT, GEAR SHIFT FORK NO.2 25411-44B00	$27.77
Available: Ships in 7-12 days. Add to View Price
#6 RETAINER, SHIFT CAM BEARING 24741-21A00	$2.75
Available: Ships in 7-12 days. Add to View Price
#7 CAM, GEAR SHIFT 25310-19F00	$125.84
Available: Ships in 7-12 days. Add to View Price
#8 KNOCK PIN 04221-04089	$1.09
Available: Ships in 7-12 days. Add to View Price
#9 PIN, SHIFT CAM DRIVEN GEAR 25312-12C00	$7.04
Available: Ships in 7-12 days. Add to View Price
#10 PLATE, GEAR SHIFT CAM 25381-19F00	$65.20
Available: Ships in 7-12 days. Add to View Price
#11 BEARING (25X47X8) 09262-25006	$25.47
Available: Ships in 7-12 days. Add to View Price
#12 BEARING (25X32X12) 09263-25018	$21.33
Available: Ships in 7-12 days. Add to View Price
#13 SCREW 02112-06123 Superseded by 02112-0612A	$1.40
Available: Ships in 7-12 days. Add to View Price
#14 STOPPER, GEAR SHIFT CAM 25350-24B00	$13.00
Available: Ships in 7-12 days. Add to View Price
#15 SPRING, STOPPER ARM 25355-20F00	$3.14
Unavailable
#16 BOLT (6X14.3) 09111-06041	$2.47
Available: Ships in 7-12 days. Add to View Price
#17 WASHER 08211-06141	$1.56
Available: Ships in 7-12 days. Add to View Price
#18 SHAFT, GEAR SHIFT 25510-19F00	$102.19
Available: Ships in 7-12 days. Add to View Price
#19 PLATE, GEAR SHIFT CAM DRIVE 25512-13E11	$31.18
Available: Ships in 7-12 days. Add to View Price
#20 STOPPER, ARM 25671-01000 Superseded by 25671-01011	$4.62
Available: Ships in 7-12 days. Add to View Price
#20 STOPPER, RETURN SPRING 25671-01011	$4.62
Unavailable
#21 WASHER (14X29X0.8) 09160-14016	$1.88
Available: Ships in 7-12 days. Add to View Price
#22 SHIM 09181-14167	$2.47
Available: Ships in 7-12 days. Add to View Price
#23 OIL SEAL (14X22X6) 09283-14006	$6.68
Available: Ships in 7-12 days. Add to View Price
#24 SPRING 09440-17009	$1.67
Available: Ships in 7-12 days. Add to View Price
#25 SPRING 09444-20001	$5.22
Available: Ships in 7-12 days. Add to View Price
#26 CIRCLIP, SHIFT SHAFT 08331-31146 Superseded by 08331-3114A	$1.88
Available: Ships in 7-12 days. Add to View Price
#27 ARM,GEAR SHIFT 25520-29B00 Superseded by 25520-29B01	$38.22
Available: Ships in 7-12 days. Add to View Price
#28 .COVER,DUST 25526-47000 Superseded by 25526-47001	$5.62
Available: Ships in 7-12 days. Add to View Price
#29 ROD, GEAR SHIFT (L:150) 25525-19F00	$10.58
Available: Ships in 7-12 days. Add to View Price
#29 ROD, GEAR SHIFT (L:175) 25525-05A10	$11.27
Available: Ships in 7-12 days. Add to View Price
#30 LEVER ASSY,GEAR 25600-33E00 Superseded by 25600-33E01	$147.17
Available: Ships in 7-12 days. Add to View Price
#31 .COVER,DUST 25526-47000 Superseded by 25526-47001	$5.62
Unavailable
#32 RUBBER, GEAR SHIFT PEDAL 25652-20C00	$5.62
Available: Ships in 7-12 days. Add to View Price
#33 NUT 09140-06011	$1.34
Available: Ships in 7-12 days. Add to View Price
#34 BOLT, GEAR SHIFT LINK 01500-06203 Superseded by 01500-0620A	$1.75
Available: Ships in 7-12 days. Add to View Price
#35 .NUT 08310-00067	$1.81
Available: Ships in 7-12 days. Add to View Price
#36 BASE ASSY, GEAR SHIFT TERMINAL 37720-20F00	$102.19
Available: Ships in 7-12 days. Add to View Price
#37 CONTACT 09209-05011	$1.88
Available: Ships in 7-12 days. Add to View Price
#38 O RING (OD:2.4,ID:25.7) 09280-26007	$6.75
Available: Ships in 7-12 days. Add to View Price
#39 CLAMP (L:82) 09404-08206	$3.12
Available: Ships in 7-12 days. Add to View Price
#40 SPRING 09440-04010	$1.40
Available: Ships in 7-12 days. Add to View Price
#41 SCREW 02112-05163 Superseded by 02112-0516A	$1.40
Available: Ships in 7-12 days. Add to View Price
