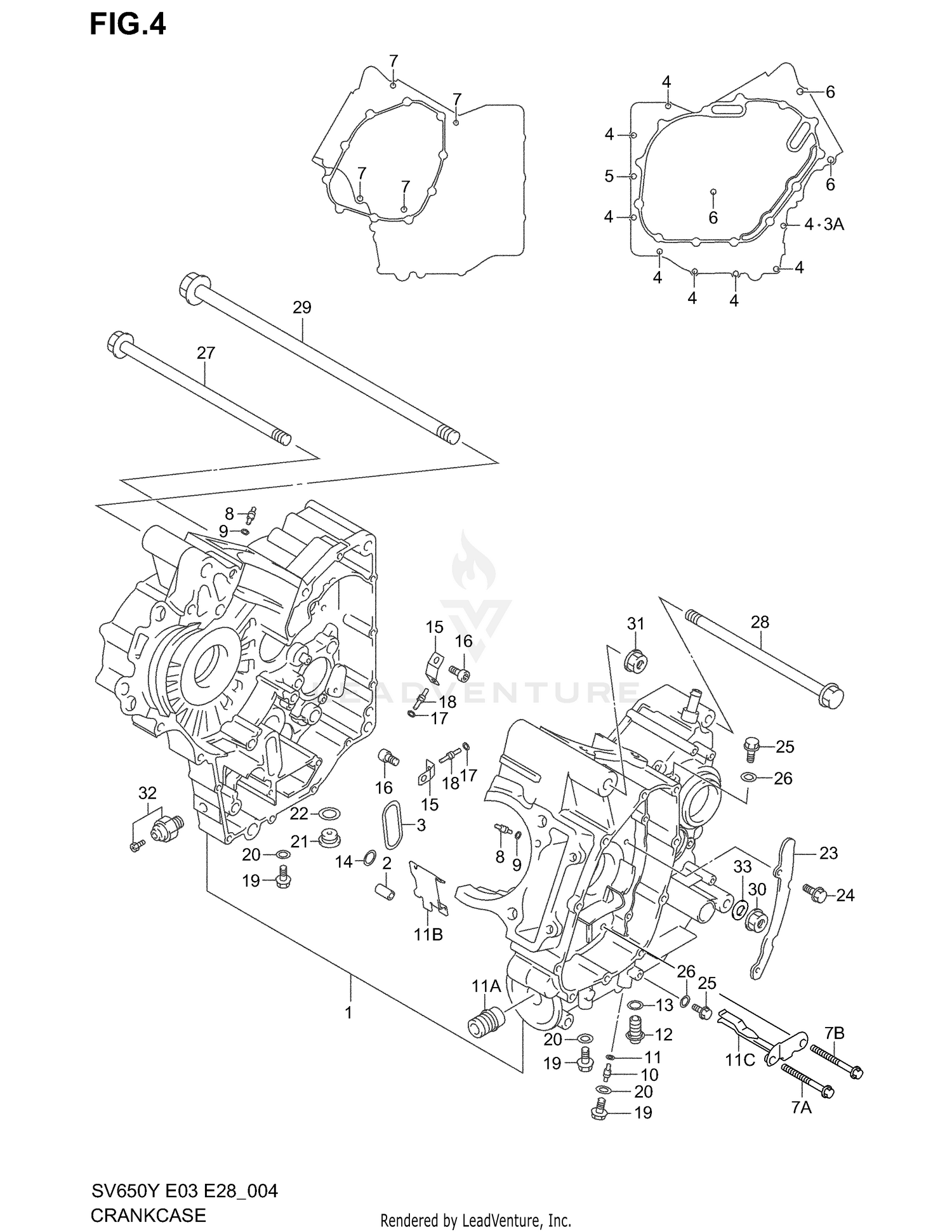

2000 Suzuki SV 650 CRANKCASE (MODEL X/Y) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE SET
11301-20830
Superseded by 11301-20835
|
$1,856.01 | ||
|
Unavailable |
|||
|
#1
CRANKCASE SET
11301-20831
Superseded by 11301-20835
|
$1,856.01 | ||
|
Unavailable |
|||
|
#1
CRANKCASE SET
11301-20835
|
$1,856.01 | ||
|
Unavailable |
|||
|
#1
CRANKCASE SET
11301-20840
Superseded by 11301-20835
|
$1,856.01 | ||
|
Unavailable |
|||
|
#2
PIN (11X20)
09206-11017
|
$5.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
O RING, CRANKCASE
11315-19F00
|
$16.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3A
GASKET (5.8X13X1.2)
09168-06023
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
BOLT
01547-06503
Superseded by 01547-0650B
|
$2.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
BOLT
01547-06507
|
$2.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
BOLT
07120-08553
Superseded by 07120-0855B
|
$3.86 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
BOLT
07120-08803
Superseded by 07120-0880B
|
$4.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
BOLT
07120-08803
Superseded by 07120-0880B
|
$4.52 | ||
|
Unavailable |
|||
|
#7A
BOLT (8X90)
11322-20F00
|
$5.50 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7B
BOLT (8X95)
09103-08066
|
$3.31 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
JET, OIL GALLERY CYLINDER
09493-28010
|
$14.50 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
O RING (D:1.2,ID:4.0)
09280-04004
|
$1.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
JET, OIL GALLERY MISSION
09493-28010
|
$14.50 | ||
|
Unavailable |
|||
|
#11
O RING (D:1.2,ID:4.0)
09280-04004
|
$1.62 | ||
|
Unavailable |
|||
|
#11A
UNION, OIL FILTER STAND
16591-06B00
Superseded by 16591-06B01
|
$7.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11B
PLATE, OIL
11391-20F10
|
$4.84 | ||
|
Unavailable |
|||
|
#11C
PLATE, OIL
11391-20F20
|
$23.68 | ||
|
Unavailable |
|||
|
#12
PLUG (12X20)
09247-12106
|
$2.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
GASKET (12.1X16.2X3.7)
09168-12002
|
$1.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
O RING (D:1.9,ID:12.6)
09280-12009
|
$3.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
PLATE, PISTON COOLING JET
16438-19F00
|
$2.12 | ||
|
Unavailable |
|||
|
#16
BOLT (6X12)
09106-06075
|
$2.42 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
O RING (D:1.2,ID:4.0)
09280-04004
|
$1.62 | ||
|
Unavailable |
|||
|
#18
JET (130)
09493-26007
|
$14.37 | ||
|
Unavailable |
|||
|
#19
BOLT
01550-08123
Superseded by 01550-0812A
|
$2.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
GASKET
09168-08029
|
$2.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
PLUG
09248-16012
|
$4.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
GASKET (16X22X2)
09168-16002
|
$1.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
PLATE, OIL SEPARATOR
11323-19F00
|
$2.57 | ||
|
Unavailable |
|||
|
#24
BOLT
01547-06123
Superseded by 01547-0612B
|
$1.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
BOLT, CLAMP
01550-06123
Superseded by 01550-0612A
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
GASKET (5.8X13X1.2)
09168-06023
|
$2.00 | ||
|
Unavailable |
|||
|
#27
BOLT (10X260)
09103-10226
|
$14.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
BOLT (10X215)
09103-10041
Superseded by 09103-10041-A05
|
$10.37 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
BOLT (12X310)
09103-12054
|
$21.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
NUT
08319-31107
|
$2.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
NUT, REAR SWGARM BRACKET
09159-10058
Superseded by 09159-10115
|
$3.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
NUT
08319-31128
Superseded by 08319-3112A
|
$3.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
SWITCH ASSY, OIL PRESSURE
37820-33D00
Superseded by 37820-33D10
|
$36.31 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#33
WASHER (10.5X22X2.3)
09160-10060
Superseded by 09160-10039
|
$2.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
