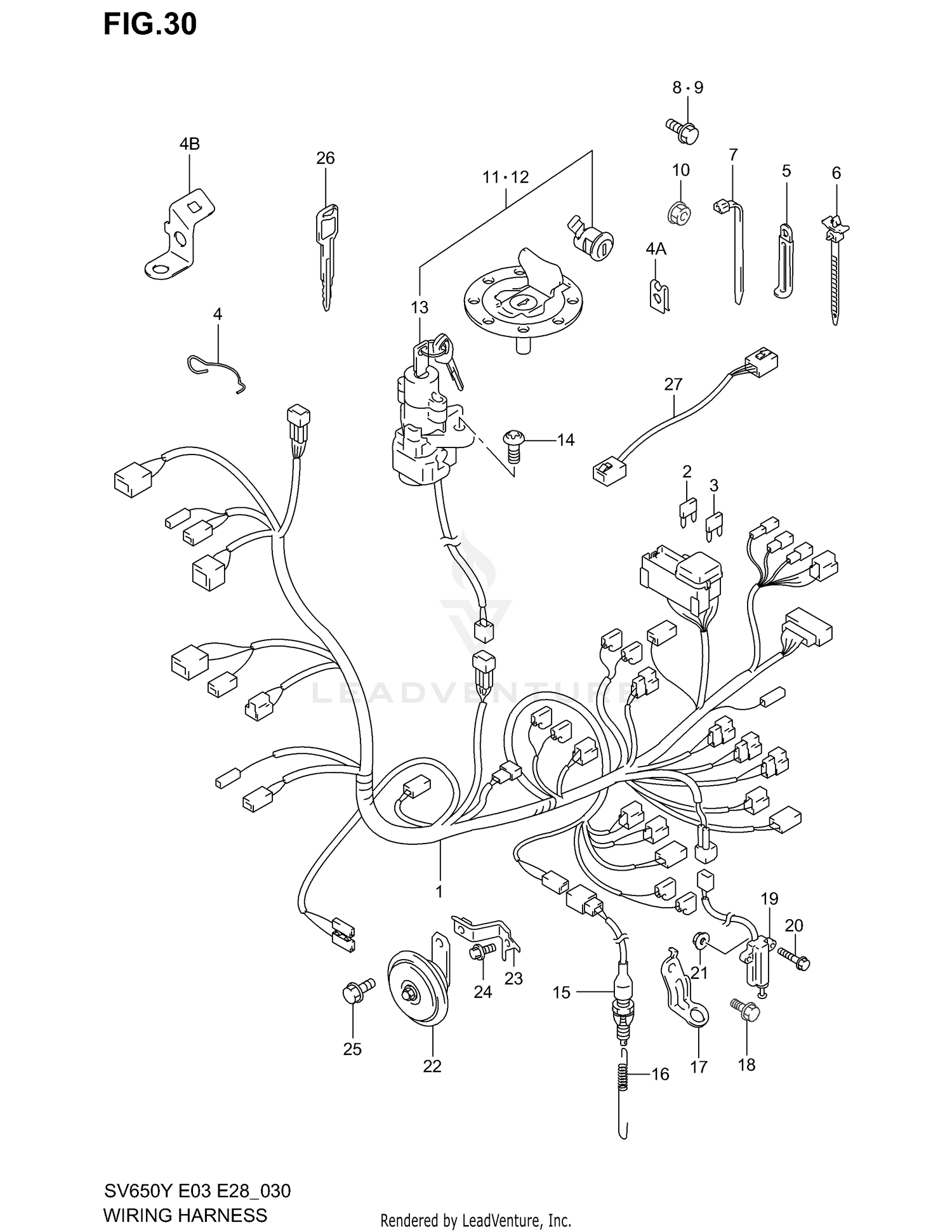

1999 Suzuki SV 650 WIRING HARNESS (SV650X/Y/K1/K2) OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 HARNESS, WIRING NO.1 36610-20F10	$593.96
Unavailable
#1 HARNESS, WIRING NO.1 36610-20F40	$417.54
Unavailable
#1 HARNESS, WIRING NO.1 36610-20F60	$474.81
Unavailable
#2 FUSE (10A) 09481-10501	$2.00
Available: Ships in 7-12 days. Add to View Price
#3 FUSE (15A) 09481-15501	$2.00
Available: Ships in 7-12 days. Add to View Price
#4 GUIDE, WIRING HARNESS 36619-20F00	$2.82
Unavailable
#4A NUT, CLAMP 53141-19A00	$4.49
Available: Ships in 7-12 days. Add to View Price
#4B HOLDER, COUPLER 36687-19F10	$3.60
Unavailable
#5 CLAMP (L:65) 09404-06432 Superseded by 09404-06039	$1.71
Available: Ships in 7-12 days. Add to View Price
#5 CLAMP (L:135) 09404-06435	$3.10
Available: Ships in 7-12 days. Add to View Price
#5 CLAMP (L:97) 09404-08207	$2.31
Available: Ships in 7-12 days. Add to View Price
#6 CLAMP (L:90) 09407-11402	$1.75
Available: Ships in 7-12 days. Add to View Price
#6 CLAMP 09407-17401 Superseded by 09407-17402	$3.31
Available: Ships in 7-12 days. Add to View Price
#7 CLAMP (L:125) 09407-14403	$2.21
Available: Ships in 7-12 days. Add to View Price
#7 CLAMP (L:165) 09407-18402	$2.15
Available: Ships in 7-12 days. Add to View Price
#8 BOLT, CLAMP 01550-06123 Superseded by 01550-0612A	$1.94
Available: Ships in 7-12 days. Add to View Price
#9 BOLT 01550-08253 Superseded by 01550-0825A	$2.28
Available: Ships in 7-12 days. Add to View Price
#10 NUT 08316-10083 Superseded by 08316-1008B	$2.62
Available: Ships in 7-12 days. Add to View Price
#11 LOCK SET 37101-19830	$438.27
Available: Ships in 7-12 days. Add to View Price
#11 LOCK SET 37101-19850 Superseded by 37101-19830	$438.27
Unavailable
#12 LOCK SET 37101-19840	$367.64
Unavailable
#12 LOCK SET 37101-19860 Superseded by 37101-19840	$367.64
Unavailable
#13 LOCK ASSY, STEERING 37100-19F00	$218.63
Available: Ships in 7-12 days. Add to View Price
#13 LOCK ASSY, STEERING 37100-19F20 Superseded by 37100-19F00	$218.63
Unavailable
#14 BOLT (8X20) 09139-08016	$3.34
Available: Ships in 7-12 days. Add to View Price
#15 SWITCH ASSY, STOP LAMP 37740-31D00	$29.23
Available: Ships in 7-12 days. Add to View Price
#15 SWITCH ASSY, STOP LAMP 37740-19F00	$27.40
Available: Ships in 7-12 days. Add to View Price
#16 SPRING 09443-06005	$2.84
Available: Ships in 7-12 days. Add to View Price
#17 BRACKET, STOP LAMP SWITCH 43251-19F10	$9.03
Available: Ships in 7-12 days. Add to View Price
#18 BOLT, CLAMP 01550-06123 Superseded by 01550-0612A	$1.94
Unavailable
#19 SWITCH ASSY,SID 37840-19F00 Superseded by 37840-19F01	$72.95
Available: Ships in 7-12 days. Add to View Price
#20 BOLT (6X20) 37849-19F00 Superseded by 09103-06248	$1.93
Unavailable
#20 BOLT(6X20) 09103-06248	$1.93
Unavailable
#21 NUT 08316-10063 Superseded by 08316-1006B	$2.47
Available: Ships in 7-12 days. Add to View Price
#22 HORN ASSY 38500-02F60	$76.83
Available: Ships in 7-12 days. Add to View Price
#22 HORN ASSY 38500-19F00	$61.46
Unavailable
#23 BRACKET, HORN 38590-19F00	$10.86
Available: Ships in 7-12 days. Add to View Price
#24 BOLT, CLAMP 01550-06123 Superseded by 01550-0612A	$1.94
Unavailable
#25 BOLT 01550-08123 Superseded by 01550-0812A	$2.28
Available: Ships in 7-12 days. Add to View Price
#26 KEY, BLANK 37146-33E00	$21.95
Available: Ships in 7-12 days. Add to View Price
#27 WIRE, STARTER CONTROL 36854-19F00	$55.34
Unavailable
