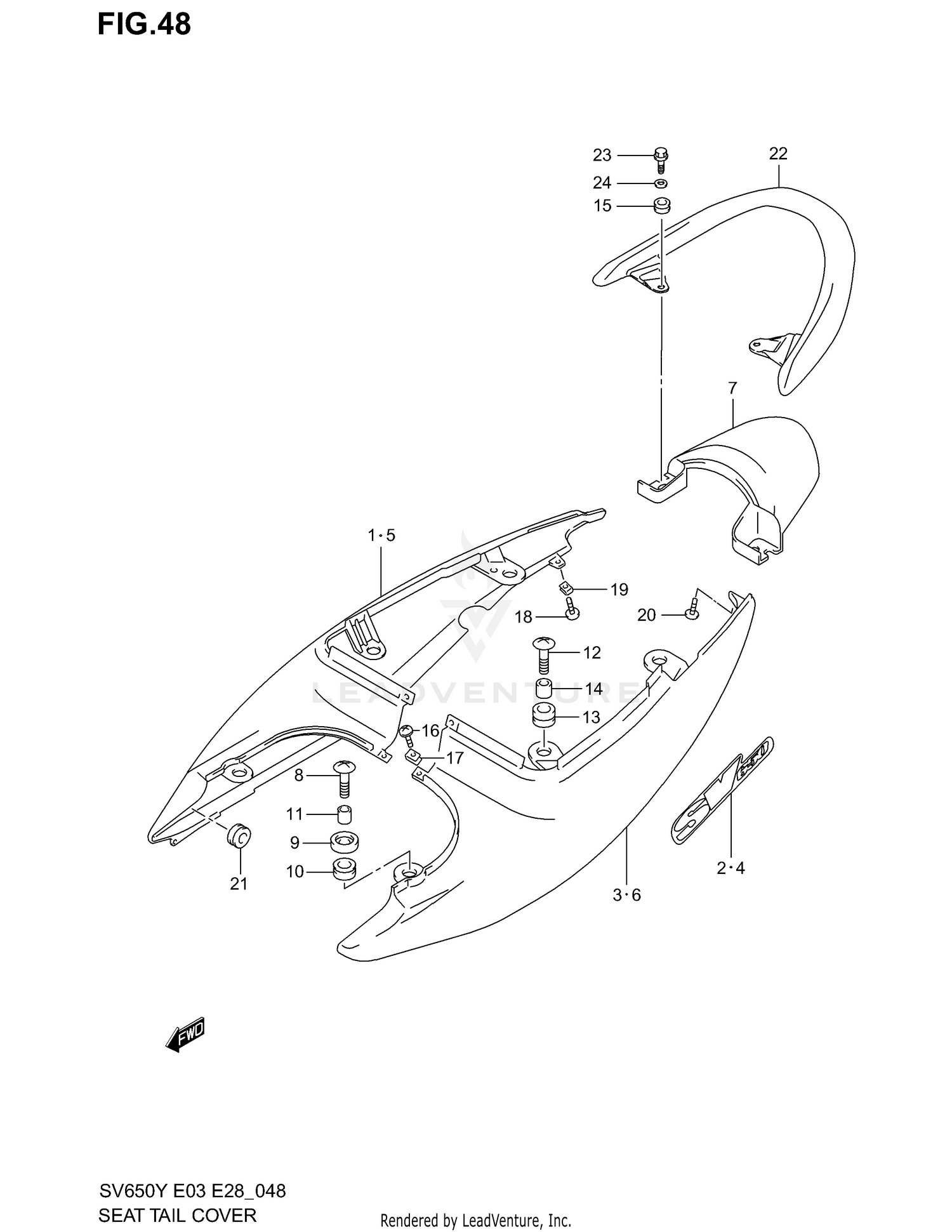

1999 Suzuki SV 650 SEAT TAIL COVER (MODEL X) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SEAT TAIL RH (BLUE)
45501-20F00-Y7E
|
$228.70 | ||
|
Unavailable |
|||
|
#1
COVER, SEAT TAIL RH (RED)
45501-20F00-Y7M
|
$217.82 | ||
|
Unavailable |
|||
|
#2
EMBLEM, TAIL COVER,SV650
68165-20F00-N0J
|
$23.05 | ||
|
Unavailable |
|||
|
#2
EMBLEM, TAIL COVER,SV650
68165-20F00-N0H
|
$26.33 | ||
|
Unavailable |
|||
|
#3
COVER, SEAT TAIL LH (BLUE)
45502-20F00-Y7E
|
$217.82 | ||
|
Unavailable |
|||
|
#3
C0VER, SEAT TAIL LH (RED)
45502-20F00-Y7M
|
$217.82 | ||
|
Unavailable |
|||
|
#4
EMBLEM, TAIL COVER,SV650
68165-20F00-N0J
|
$23.05 | ||
|
Unavailable |
|||
|
#4
EMBLEM, TAIL COVER,SV650
68165-20F00-N0H
|
$26.33 | ||
|
Unavailable |
|||
|
#5
COVER, SEAT TAIL RH (RED)
45501-20F10-Y7M
|
|||
|
Unavailable |
|||
|
#5
COVER, SEAT TAIL RH (YELLOW)
45501-20F10-Y9F
|
|||
|
Unavailable |
|||
|
#6
COVER, SEAT TAIL LH (RED)
45502-20F10-Y7M
|
|||
|
Unavailable |
|||
|
#6
COVER, SEAT TAIL LH (YELLOW)
45502-20F10-Y9F
|
|||
|
Unavailable |
|||
|
#7
COVER, SEAT TAIL CENTER (GRAY)
45503-19F50-35W
|
$114.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
SCREW, FRONT (6X30)
09136-06083
|
$2.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
CUSHION, FR UPPER (10X28X13)
47116-19F00
|
$5.64 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
CUSHION, FR LOWER (10X22X15)
47115-19F00
|
$5.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
SPACER (6.5X10X15.70)
09180-06294
|
$3.31 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
SCREW, CENTER (6X20)
09136-06105
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
CUSHION (10X28X19)
09320-10045
|
$3.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
SPACER (6.5X10X9.4)
09180-06286
|
$2.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
CUSHION, REAR (15X28X12)
47115-05F00
|
$4.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
SCREW
03241-15123
Superseded by 03241-1512B
|
$2.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
NUT
09148-05038
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
SCREW
03241-15123
Superseded by 03241-1512B
|
$2.34 | ||
|
Unavailable |
|||
|
#19
NUT
09148-05038
|
$1.94 | ||
|
Unavailable |
|||
|
#20
SCREW
03242-04103
Superseded by 03241-0410A
|
$1.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
CUSHION (8X26X7)
09320-08018
|
$3.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
HANDLE, PILLION RIDER (BLACK)
46210-19F50-291
|
$203.82 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
BOLT
01810-08253
Superseded by 01551-0825A
|
$2.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
WASHER
09160-08126
|
$2.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
