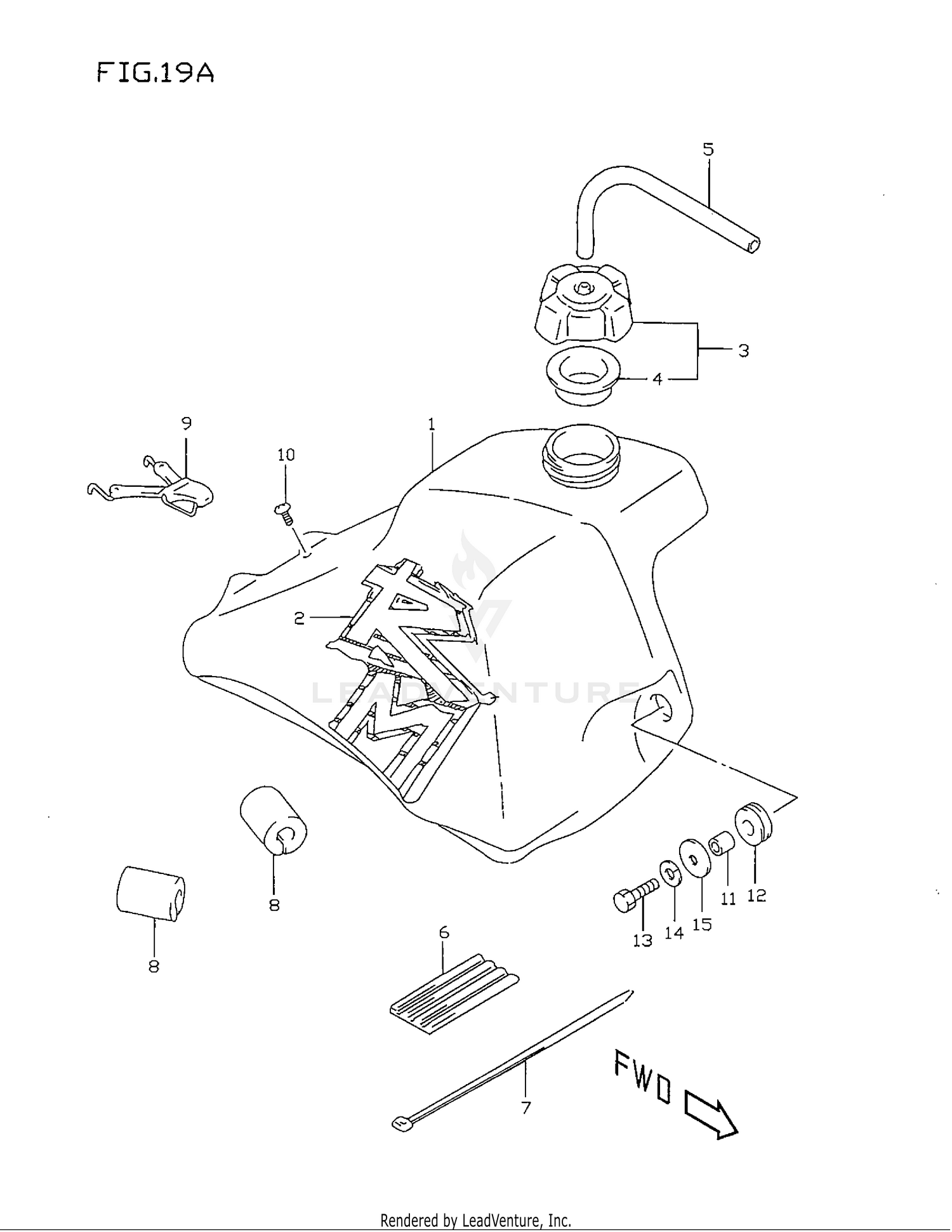

Fuel Tank (model V) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK, FUEL (YELLOW)
44110-02B00-25Y
|
$311.28 | ||
|
Unavailable |
|||
|
#2
EMBLEM
68111-03B50-G7E
|
$80.81 | ||
|
Unavailable |
|||
|
#3
CAP SET,FUEL TA
44200-27870
Superseded by 44200-27871
|
$27.01 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET,FUEL TANK FILLER CAP
44248-27C00
Superseded by 44248-27C01
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE,5X10X600
09352-50823-600
Superseded by 44421-13ER0
|
$11.84 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUSHION, UPPER FRONT
44541-14300
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP
09407-25402
|
$5.46 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION, UPPER REAR
44542-17300
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAND, REAR
44560-26C00
|
$16.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
02142-06163
Superseded by 02142-0616A
|
$1.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
SPACER
09180-06289
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#12
CUSHION
09320-10029
Superseded by 09320-10080
|
$7.81 | ||
|
Unavailable |
|||
|
#13
BOLT, GEAR SHIFT ARM
01500-06253
Superseded by 01500-0625A
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#14
LOCK WASHER
08321-01063
Superseded by 08321-0106A
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, 6.5X24X1.6
09160-06074
Superseded by 09160-06501
|
$2.16 | ||
|
Available to order. Add to View Price |
|||
|
#16
REFER TO FIG.19B(D-7) FOR
SPECIAL NOTE
|
|||
|
Unavailable |
|||
