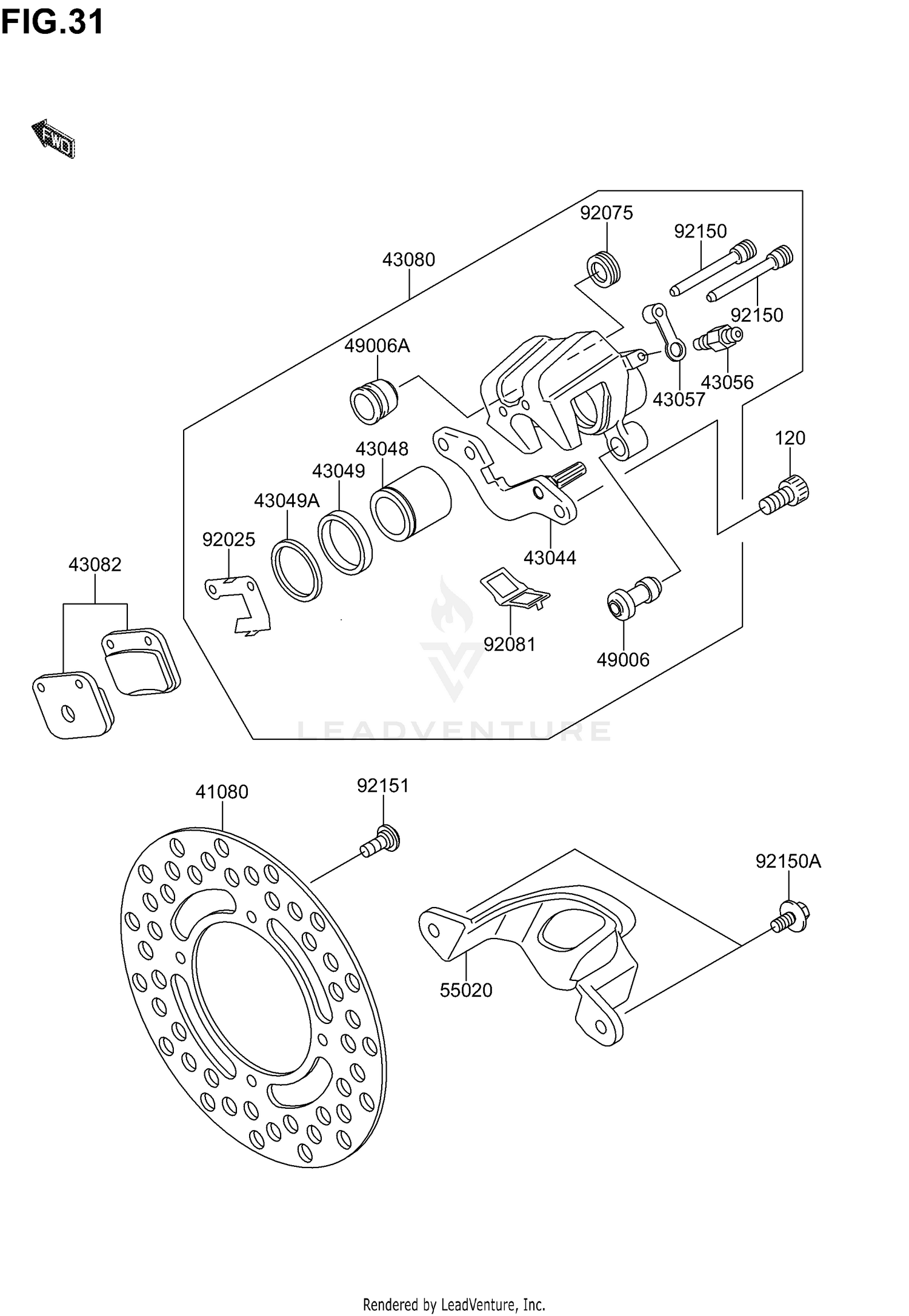

2005 Suzuki RM 65 REAR BRAKE OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#41080 DISC K4108-01470	$152.25
Unavailable
#43044 HOLDER-COMP-CALIPER,RR K4304-41076	$66.54
Available: Ships in 7-12 days. Add to View Price
#43048 PISTON-CALIPER K4304-81090	$38.95
Unavailable
#43049 PACKING,PISTON SEAL K4304-91060	$11.53
Available: Ships in 7-12 days. Add to View Price
#43049A PACKING,PISTON SEAL K4304-91061	$6.28
Available: Ships in 7-12 days. Add to View Price
#43056 BREATHER-BRAKE K4305-61056	$10.74
Available: Ships in 7-12 days. Add to View Price
#43057 CAP-BREATHER K4305-71001	$2.75
Available: Ships in 7-12 days. Add to View Price
#43080 CALIPER-SUB-ASSY,RR K4308-05132	$125.07
Unavailable
#43082 PAD ASSY,BRAKE K4308-21241 Superseded by K4308-20043	$63.28
Available: Ships in 7-12 days. Add to View Price
#49006 BOOT,CALIPER K4900-61088	$8.75
Available: Ships in 7-12 days. Add to View Price
#49006A BOOT,CALIPER K4900-61089	$4.62
Available: Ships in 7-12 days. Add to View Price
#55020 GUARD,REAR CALIPER,WHITE KK550-20170-7RZ	$12.61
Available: Ships in 7-12 days. Add to View Price
#92025 SHIM,PAD K9202-51817	$5.12
Unavailable
#92075 DAMPER K9207-51414	$3.47
Unavailable
#92081 SPRING,PAD K9208-11502	$4.38
Unavailable
#92150 BOLT K9215-01144	$7.49
Available: Ships in 7-12 days. Add to View Price
#92150A BOLT,FLANGED,6X14 K9215-01505	$3.39
Available: Ships in 7-12 days. Add to View Price
#92151 BOLT,DISC PLATE,6MM K9215-11799	$2.81
Available: Ships in 7-12 days. Add to View Price
#120 BOLT-SOCKET KK120-P0816	$1.22
Unavailable
