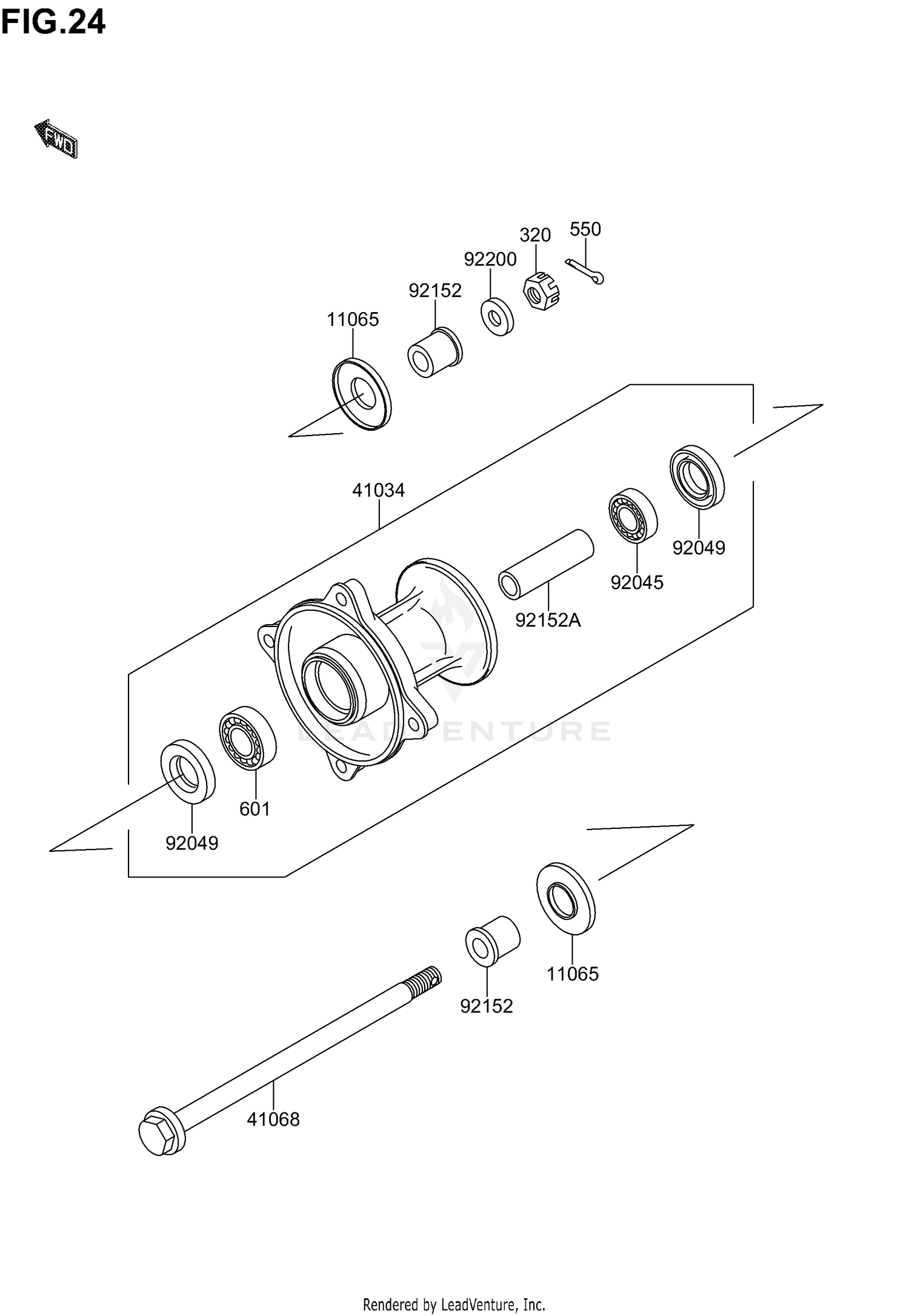

2005 Suzuki RM 65 FRONT HUB OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11065
CAP
K1106-51137
|
$3.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#41034
DRUM-ASSY,FRONT BRAKE
K4103-41302
|
$161.21 | ||
|
Unavailable |
|||
|
#41068
AXLE,FR
K4106-81418
|
$17.08 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92045
BEARING-BALL,TMB201LLUC3/2A
K9204-51062
|
$22.92 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92049
SEAL-OIL,TC20376.5
K9204-91257
|
$7.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92152
COLLAR,AXLE,L=15.5
K9215-21196
|
$5.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92152A
COLLAR,FR BRAKE DRUM,L=59
K9215-21197
|
$3.29 | ||
|
Unavailable |
|||
|
#92200
WASHER,12.3X23X2.3
K9220-01004
|
$3.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#320
NUT,12MM
KK320-G1200
Superseded by K9221-07501
|
$2.42 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#550
PIN,COTTER,3.0X
KK550-D3025
Superseded by K550A-A3025
|
$1.56 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#601
BEARING-BALL,#6201UUC3
KKK60-1B630-1UU
|
$16.96 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
