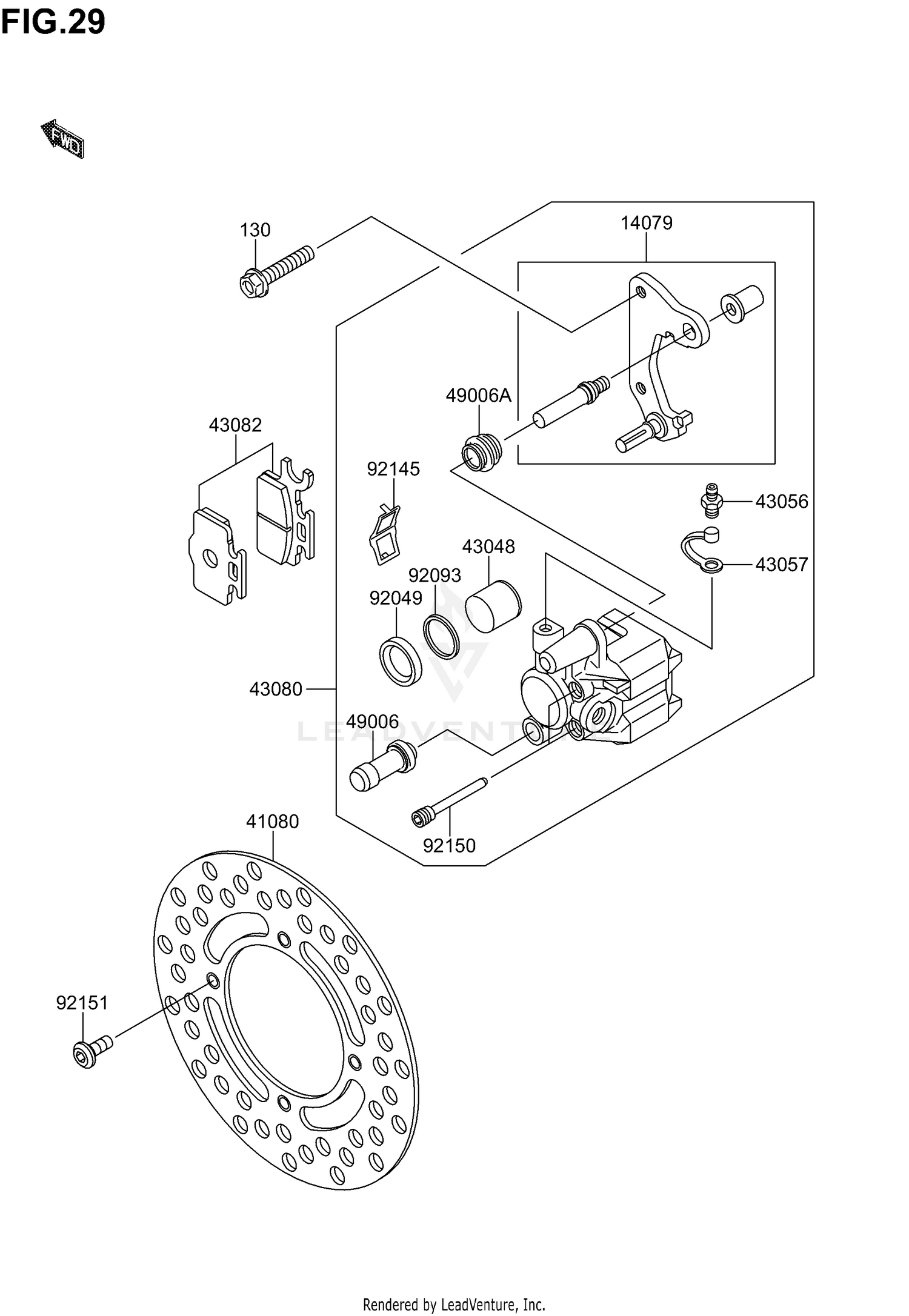

2005 Suzuki RM 65 FRONT BRAKE OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#14079
HOLDER-ASSY,FRONT CALIPER
K1407-91130
|
$77.51 | ||
|
Unavailable |
|||
|
#41080
DISC
K4108-01470
|
$152.25 | ||
|
Unavailable |
|||
|
#43048
PISTON-CALIPER
K4304-81089
|
$32.71 | ||
|
Unavailable |
|||
|
#43056
BREATHER-BRAKE
K4305-61056
|
$10.74 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43057
CAP-BREATHER
K4305-71001
|
$2.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43080
CALIPER-SUB-ASSY,FR
K4308-05131
|
$142.08 | ||
|
Unavailable |
|||
|
#43082
PAD ASSY,BRAKE
K4308-21242
Superseded by K4308-20096
|
$48.27 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#49006
BOOT,CALIPER
K4900-61088
|
$8.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#49006A
BOOT,CALIPER
K4900-61242
|
$3.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92049
SEAL-OIL,PISTON
K9204-91331
|
$6.46 | ||
|
Unavailable |
|||
|
#92093
SEAL,PISTON
K9209-31272
|
$14.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92145
SPRING,PAD
K9214-51269
|
$7.68 | ||
|
Unavailable |
|||
|
#92150
BOLT
K9215-01144
|
$7.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92151
BOLT,DISC PLATE,6MM
K9215-11799
|
$2.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#130
BOLT-FLANGED
KK130-P0840
Superseded by K130C-A0840
|
$1.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
