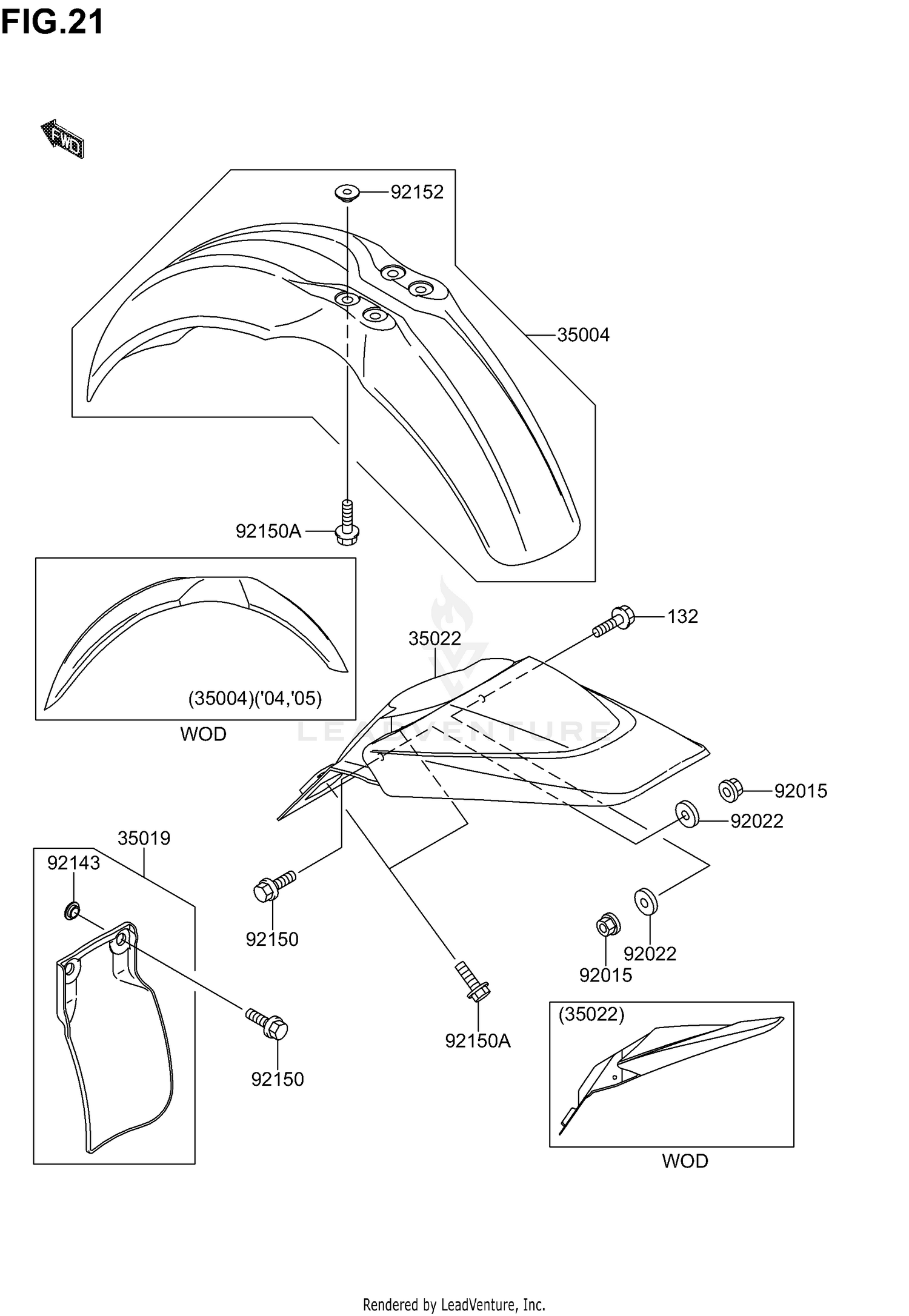

2005 Suzuki RM 65 FENDER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#35004
FENDER-FRONT,C.YELLOW
K3500-41416-267
|
$34.67 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35019
FLAP,REAR FENDER,WHITE
KK350-19139-5RZ
|
$22.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35022
FENDER-COMP-REAR,C.YELLOW
K3502-21342-267
|
$32.06 | ||
|
Unavailable |
|||
|
#92015
NUT,FLANGED, 6M
K9201-51078
Superseded by K9221-00630
|
$1.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92022
WASHER,6.5X20X1
KK920-22125
Superseded by K9220-00283
|
$1.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92143
COLLAR
K9214-31196
|
$3.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92150
BOLT,FLANGED,6X16
K9215-01506
|
$3.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92150A
BOLT,6X20
K9215-01892
|
$2.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92152
COLLAR
K9215-21255
|
$2.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#132
BOLT-FLANGED-SM
KK132-G0625
Superseded by K132B-A0625
|
$1.72 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
