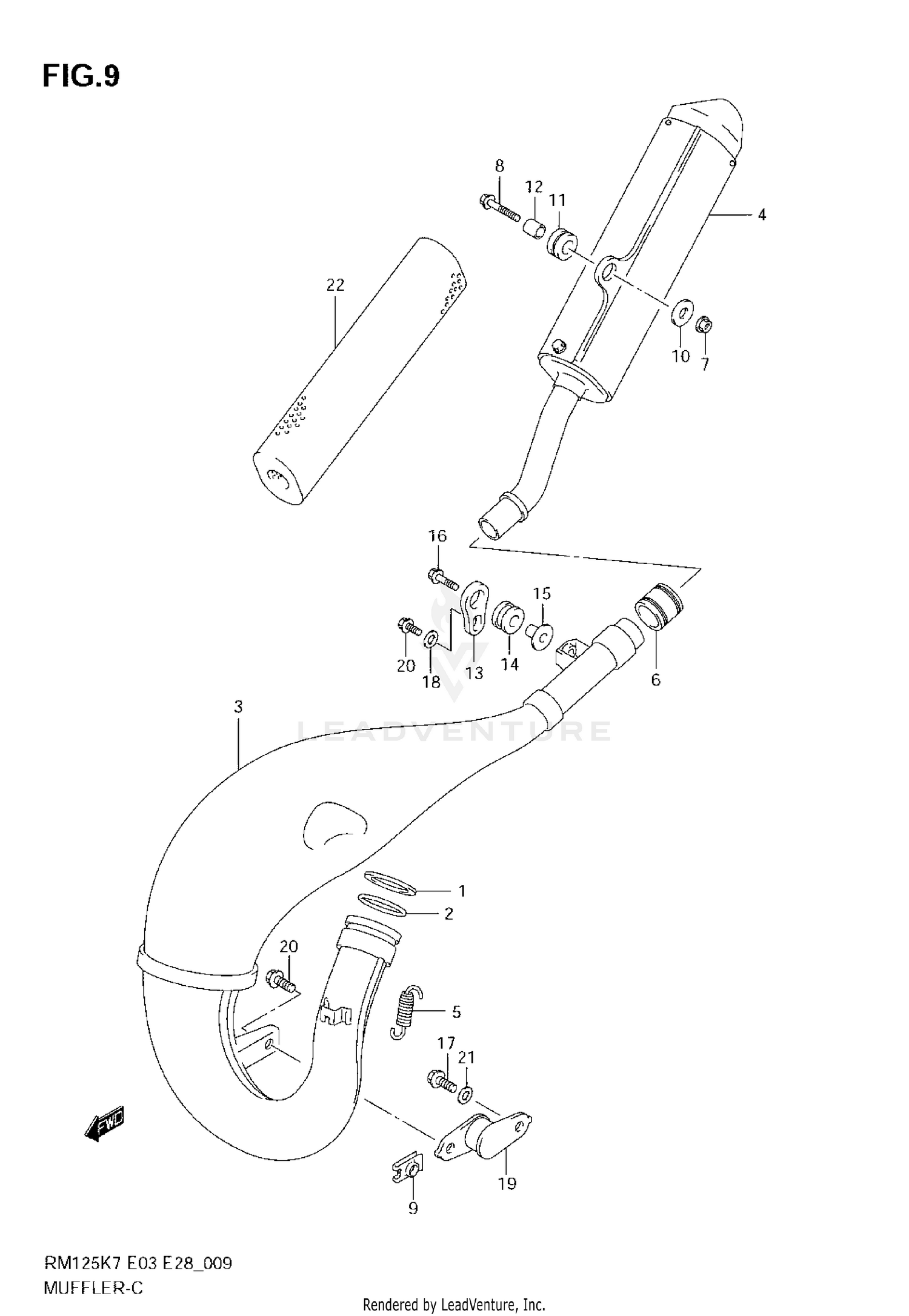

2007 Suzuki RM 125 MUFFLER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET, EXHAUST PIPE
14172-36E00
|
$2.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
O RING, EXHAUST PIPE
14171-36E00
|
$20.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
MUFFLER, 1ST
14310-36F40
|
$267.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
MUFFLER, 2ND
14330-36F01
|
$188.82 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
SPRING
09443-11027
|
$7.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
CONNECTOR, 2ND MUFFLER
14771-43D11
|
$77.17 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
NUT
08319-3106A
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
BOLT
09103-06251
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
NUT
09148-06021
|
$3.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
WASHER (6.5X24X1.2)
09160-06114
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
CUSHION
09320-11015
Superseded by 09320-11008
|
$2.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
SPACER
09180-06120
|
$2.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
PLATE, MOUNTING
14761-27C00
|
$9.10 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
CUSHION (8.7X26X14)
14762-01B01
Superseded by 14762-01B02
|
$3.86 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
SPACER
14763-36E00
|
$8.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
BOLT
09116-06186
|
$2.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
BOLT
09103-06234
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
WASHER
09160-06084
|
$1.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
DAMPER,MUFFLER
14770-37F00
Superseded by 14770-37F01
|
$22.61 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
BOLT
09103-06233
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
WASHER
09160-06084
|
$1.75 | ||
|
Unavailable |
|||
|
#22
SILENCER, MUFFLER
14351-36F00
|
$74.83 | ||
|
Unavailable |
|||
|
#22
SILENCER, MUFFLER
14351-36F10
|
$120.72 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
