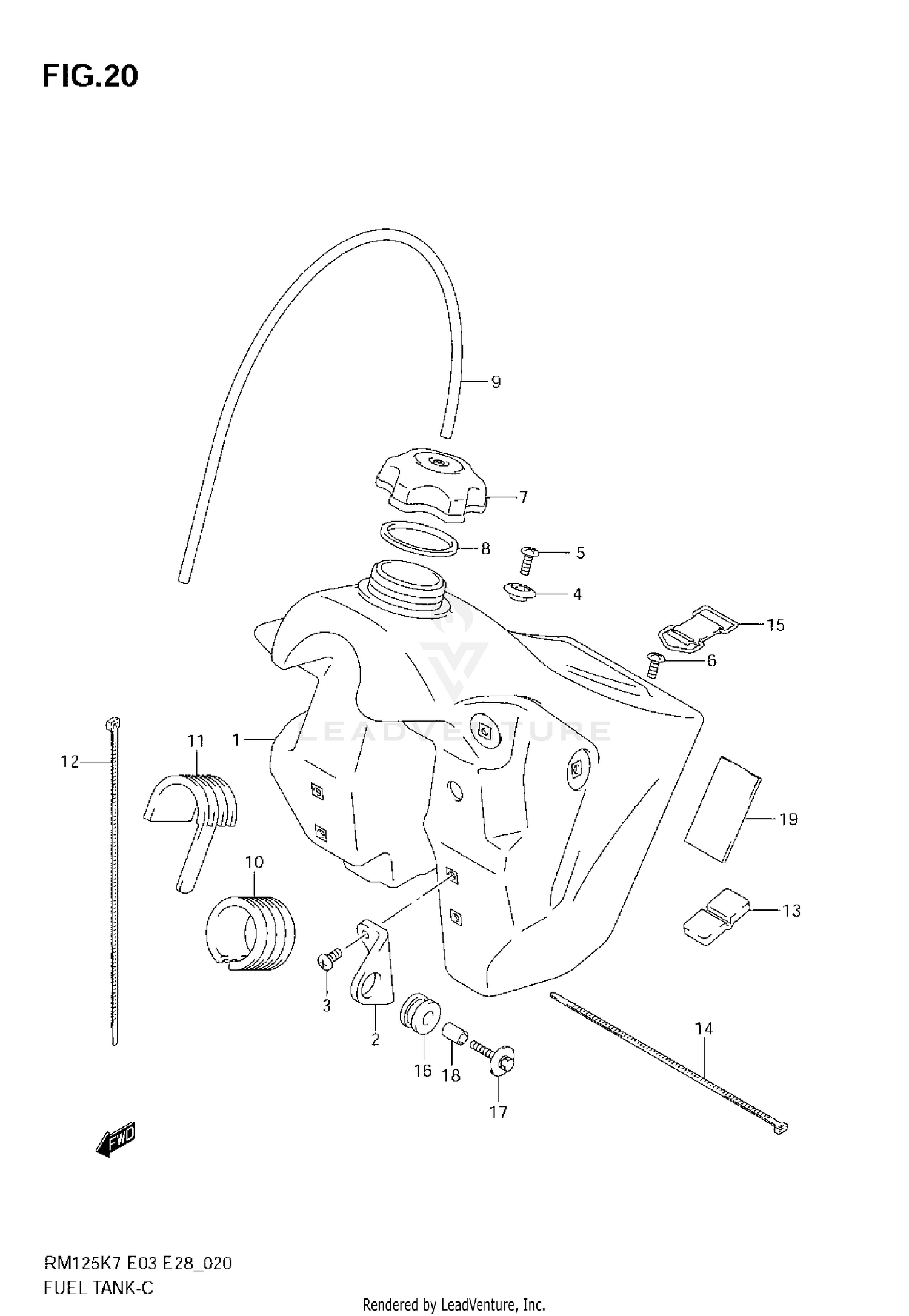

2007 Suzuki RM 125 FUEL TANK OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 TANK, FUEL (YELLOW) 44110-36F21-YU1	$474.81
Unavailable
#2 BRACKET, FRONT 44131-27C01	$13.00
Available: Ships in 7-12 days. Add to View Price
#3 SCREW, FRONT 02142-0612B	$1.75
Available: Ships in 7-12 days. Add to View Price
#3 BOLT, FRONT 09103-06280	$2.55
Available: Ships in 7-12 days. Add to View Price
#4 HOOK, SEAT FRONT 44132-37F10	$10.11
Available: Ships in 7-12 days. Add to View Price
#5 SCREW, HOOK 02122-0620B	$1.87
Available: Ships in 7-12 days. Add to View Price
#6 SCREW, TANK BAND 09139-06134	$2.22
Available: Ships in 7-12 days. Add to View Price
#7 CAP, FUEL TANK 44210-37F00	$30.26
Available: Ships in 7-12 days. Add to View Price
#8 GASKET,FUEL TANK FILLER CAP 44248-27C00 Superseded by 44248-27C01	$4.35
Available: Ships in 7-12 days. Add to View Price
#9 HOSE,5X8.2X600 09352-50823-600 Superseded by 44420-44AR0	$9.22
Available: Ships in 7-12 days. Add to View Price
#10 CUSHION 44541-26C00	$15.77
Available: Ships in 7-12 days. Add to View Price
#11 CUSHION 44541-37F00	$13.80
Available: Ships in 7-12 days. Add to View Price
#12 CLAMP 09407-30402	$4.07
Available: Ships in 7-12 days. Add to View Price
#13 CUSHION, REAR 44542-37F00	$8.70
Available: Ships in 7-12 days. Add to View Price
#14 CLAMP, REAR 09407-25402	$4.62
Available: Ships in 7-12 days. Add to View Price
#15 BAND, REAR 44560-27C00	$7.94
Available: Ships in 7-12 days. Add to View Price
#16 CUSHION (8.7X26X14) 14762-01B01 Superseded by 14762-01B02	$3.86
Available: Ships in 7-12 days. Add to View Price
#17 BOLT, FRONT 09116-06195	$3.12
Available: Ships in 7-12 days. Add to View Price
#18 SPACER 09180-06268	$2.00
Available: Ships in 7-12 days. Add to View Price
#19 CUSHION, SIDE 33652-19F00	$4.49
Available: Ships in 7-12 days. Add to View Price
