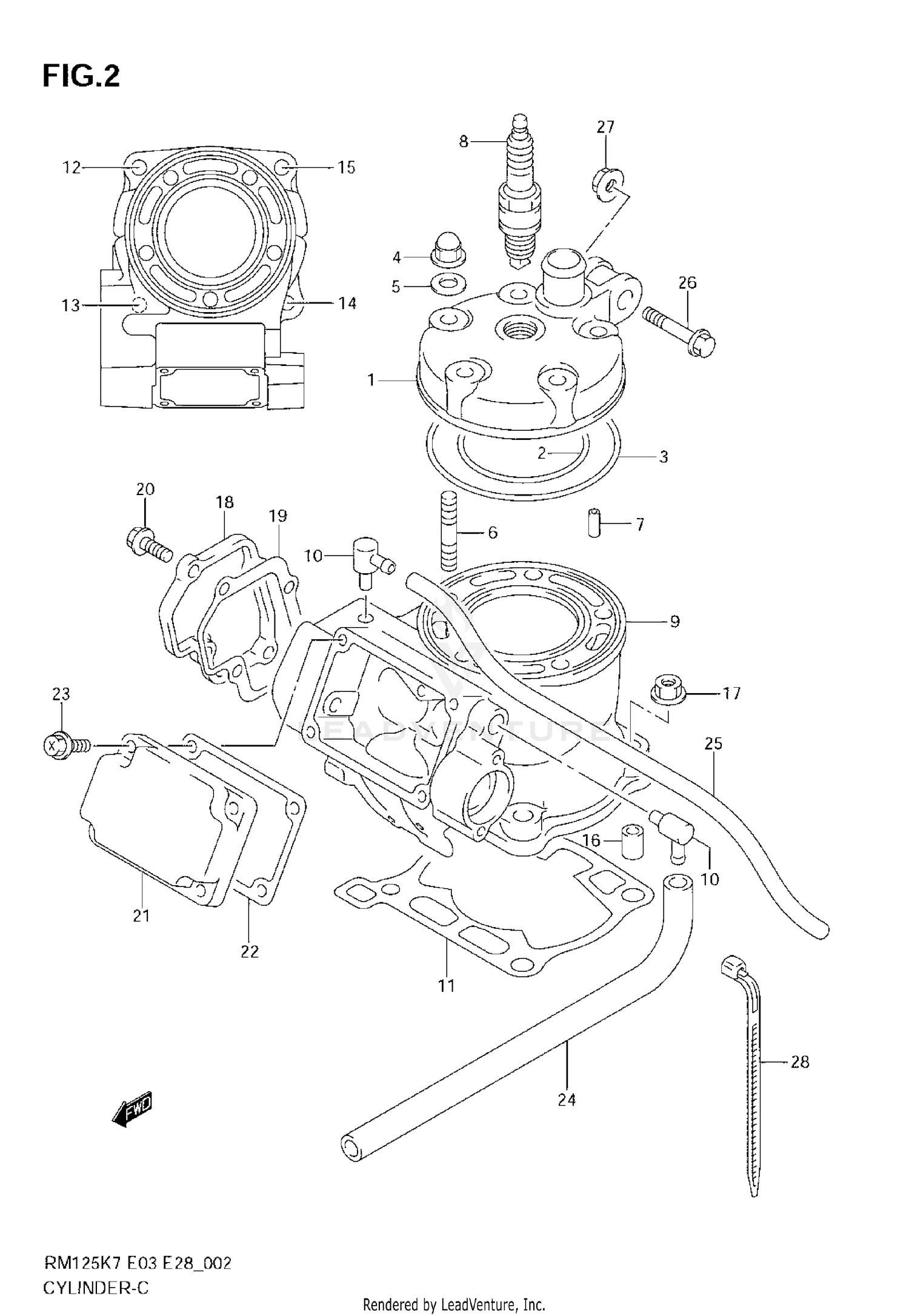

2007 Suzuki RM 125 CYLINDER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD, CYLINDER
11111-36F30
|
$200.35 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
O RING, CYLINDER HEAD NO.1
11147-27C11
|
$10.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
O RING, CYLINDER HEAD NO.2
11148-27C11
|
$5.51 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
NUT
09159-08049
|
$4.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
WASHER
09168-08021
|
$2.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
STUD BOLT (8X38)
09108-08227
Superseded by 09108-08231
|
$3.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
PIN
04221-04089
|
$1.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
SPARK PLUG (NGK,R6918B-8)
09482-00509
|
$36.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
CYLINDER SET
11200-36870
|
$944.76 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
UNION, CYLINDER
16910-09401
|
$18.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
GASKET, CYLINDER
11241-36F00
|
$13.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
STUD BOLT (8X33)
09108-08220
|
$3.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
STUD BOLT (8X30)
09108-08142
|
$3.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
STUD BOLT (8X35)
01421-0835A
|
$2.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
STUD BOLT (8X40)
01421-0840A
|
$2.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
PIN
09206-11004
|
$5.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
NUT
09159-08124
|
$2.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
COVER, CYLINDER NO.1
11231-27C30
|
$31.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
GASKET, CYLINDER COVER NO.1
11233-27C34
|
$8.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
BOLT
09103-06234
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
COVER, CYLINDER NO.2
11248-36E00
|
$31.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
GASKET, CYLINDER COVER NO.2
11238-36E01
|
$5.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
BOLT (5X16)
09103-05023
Superseded by 09103-05016
|
$1.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
HOSE(5X8.2X600)
09359-50823-600
Superseded by 09359-50824-600
|
$7.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
HOSE,5X8.2X600
09352-50823-600
Superseded by 44420-44AR0
|
$9.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
BOLT, ENG MTG
09103-10149
|
$3.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
NUT
09159-10078
|
$2.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
CLAMP
09407-18402
|
$2.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
