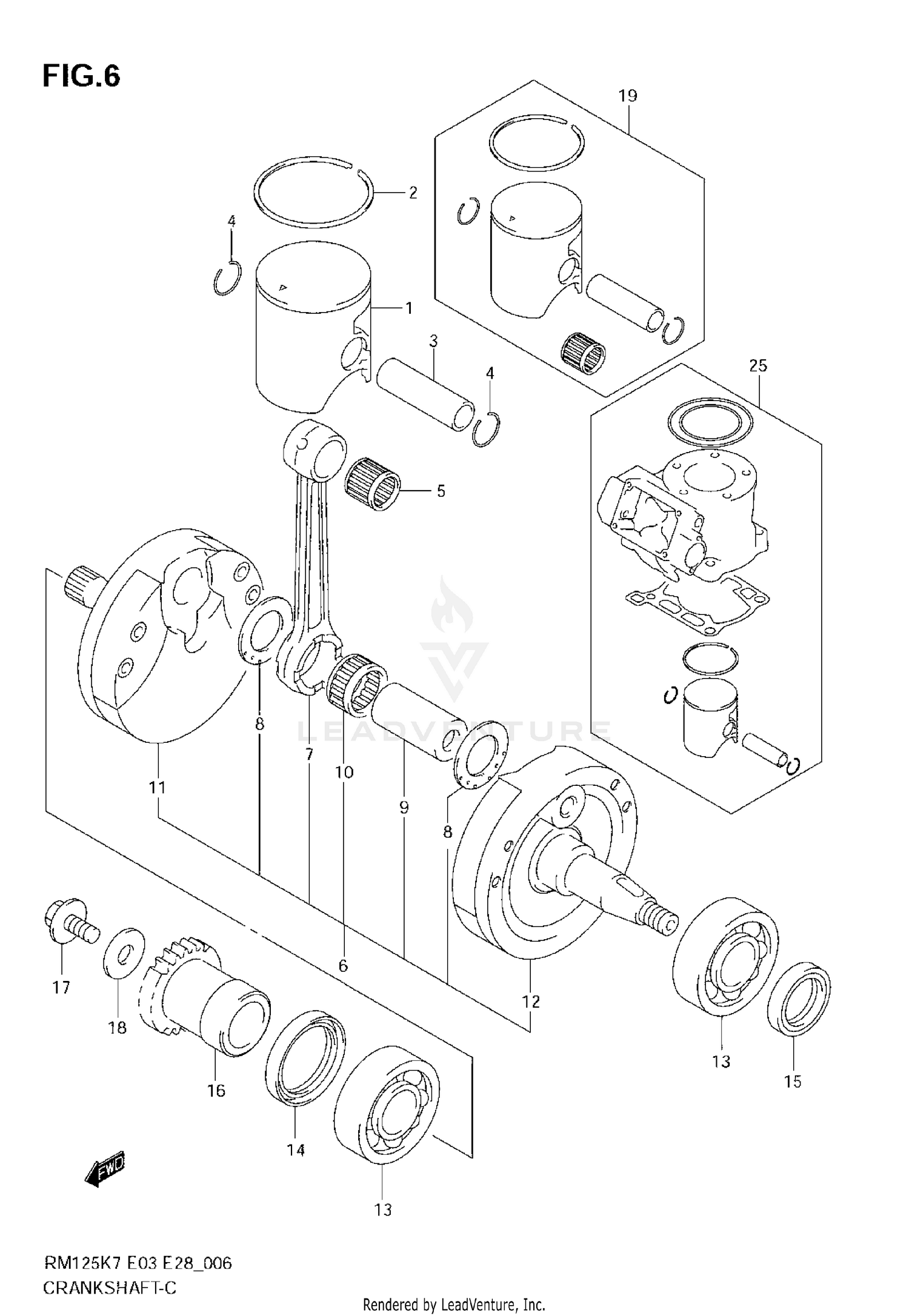

2007 Suzuki RM 125 CRANKSHAFT OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PISTON
12110-36F00-0F0
|
$121.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
RING, PISTON
12141-36F00
|
$24.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
PIN, PISTON
12151-01B41
|
$15.59 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
CIRCLIP
09381-15001
|
$1.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
BEARING, PISTON PIN
09263-15040
|
$16.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
CRANKSHAFT ASSY
12200-36F40
|
$762.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
ROD, CONNECTING
12161-36F21
|
$94.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
WASHER
09160-22077
|
$17.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
PIN, CRANK
12211-27C00
|
$35.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
BEARING (22X28X16)
09263-22060
|
$64.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
CRANKSHAFT, RH
12220-36F40
|
$213.97 | ||
|
Unavailable |
|||
|
#12
CRANKSHAFT, LH
12260-36F40
|
$220.09 | ||
|
Unavailable |
|||
|
#13
BEARING (22X56X16)
09262-22025
|
$57.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
SEAL,OIL
09283-30061
Superseded by 09283-30076
|
$15.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
SEAL,OIL
09283-18007
Superseded by 09283-18010
|
$5.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
GEAR, PRIMARY DRIVE (NT:19)
21111-36E11
|
$69.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
BOLT
09103-10339
|
$9.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
WASHER
09164-11004
|
$4.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
PISTON KIT
12101-36821
|
$198.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
PISTON
12110-36F00-0F0
|
$121.22 | ||
|
Unavailable |
|||
|
#21
RING, PISTON
12141-36F00
|
$24.94 | ||
|
Unavailable |
|||
|
#22
PIN, PISTON
12151-01B41
|
$15.59 | ||
|
Unavailable |
|||
|
#23
BEARING
09263-15040
|
$16.71 | ||
|
Unavailable |
|||
|
#24
CIRCLIP
09381-15001
|
$1.40 | ||
|
Unavailable |
|||
|
#25
TOP END KIT, ENGINE
12100-36871
|
$267.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
O RING, CYLINDER HEAD NO.1
11147-27C11
|
$10.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
O RING, CYLINDER HEAD NO.2
11148-27C11
|
$5.51 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
GASKET, CYLINDER
11241-36F00
|
$13.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
PISTON
12110-36F00-0F0
|
$121.22 | ||
|
Unavailable |
|||
|
#30
RING, PISTON
12141-36F00
|
$24.94 | ||
|
Unavailable |
|||
|
#31
CIRCLIP
09381-15001
|
$1.40 | ||
|
Unavailable |
|||
