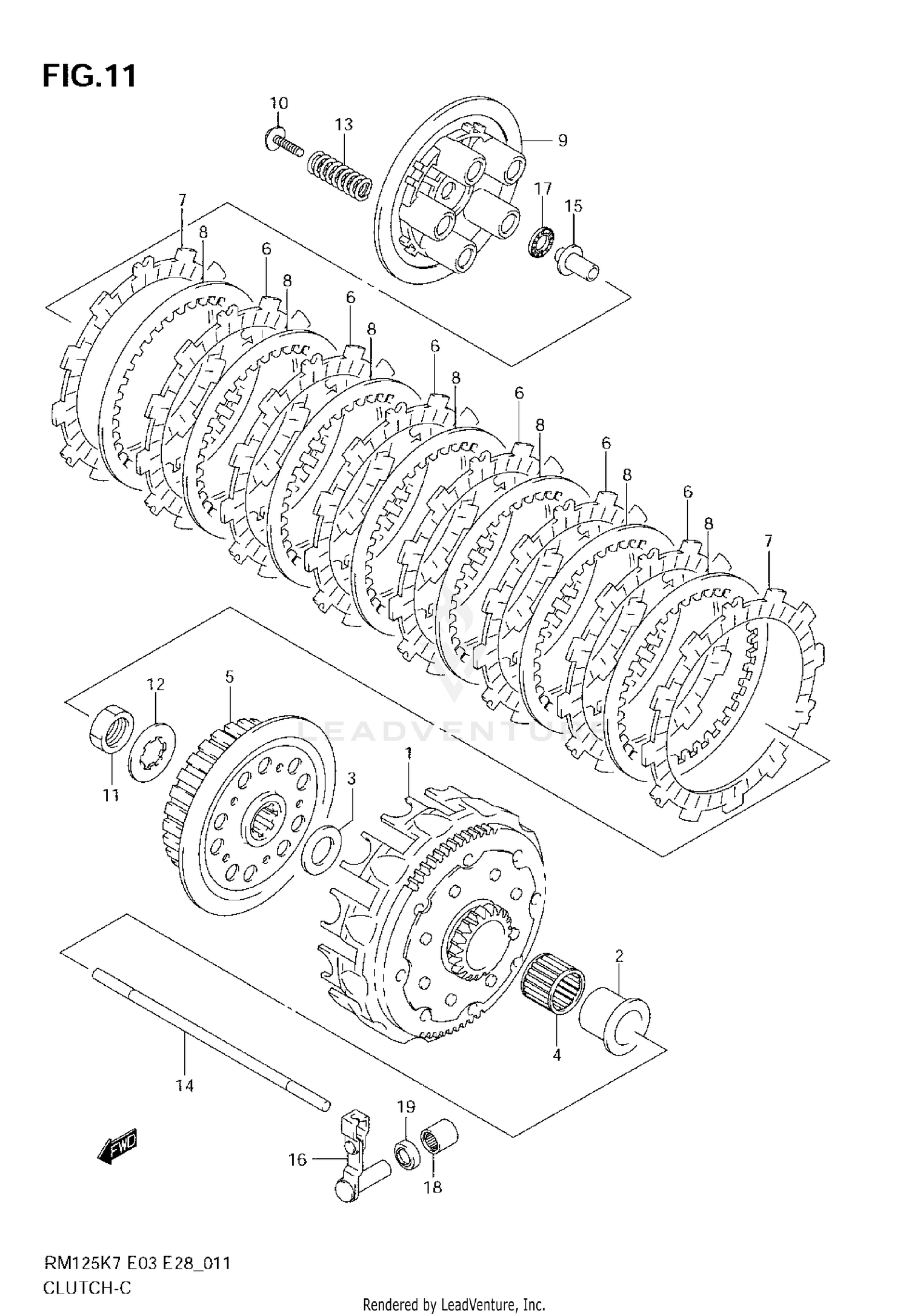

2007 Suzuki RM 125 CLUTCH OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 GEAR ASSY, PRIMARY DRIVEN 21200-36F00	$301.62
Available: Ships in 7-12 days. Add to View Price
#2 SPACER 21251-43D00	$36.83
Available: Ships in 7-12 days. Add to View Price
#3 WASHER 08211-20363	$3.15
Available: Ships in 7-12 days. Add to View Price
#4 BEARING (25X30X22) 09263-25046	$25.85
Available: Ships in 7-12 days. Add to View Price
#5 HUB, CLUTCH SLEEVE 21411-43D04	$91.72
Available: Ships in 7-12 days. Add to View Price
#6 PLATE, CLUTCH DRIVE 21441-36F00	$21.80
Available: Ships in 7-12 days. Add to View Price
#7 PLATE, CLUTCH DRIVE 21441-36F10	$21.80
Available: Ships in 7-12 days. Add to View Price
#8 PLATE, CLUTCH DRIVEN 21451-43D00	$10.31
Available: Ships in 7-12 days. Add to View Price
#9 DISC, CLUTCH PRESSURE 21462-43D01	$42.20
Available: Ships in 7-12 days. Add to View Price
#10 BOLT (5X18) 09116-05019	$2.28
Available: Ships in 7-12 days. Add to View Price
#11 NUT 09140-20001	$3.34
Available: Ships in 7-12 days. Add to View Price
#12 LOCK WASHER 09167-20006 Superseded by 09167-20009	$2.00
Available: Ships in 7-12 days. Add to View Price
#13 SPRING 09440-18030	$6.49
Available: Ships in 7-12 days. Add to View Price
#14 ROD, CLUTCH PUSH 23110-36F00	$16.29
Available: Ships in 7-12 days. Add to View Price
#15 PIECE, CLUTCH PUSH 23121-37F00	$20.82
Available: Ships in 7-12 days. Add to View Price
#16 CAMSHAFT, CLUTCH RELEASE 23200-36E11	$52.15
Available: Ships in 7-12 days. Add to View Price
#17 BEARING (10.1X22X2.8) 09263-10002	$10.16
Available: Ships in 7-12 days. Add to View Price
#18 BEARING (10X14X15) 09263-10007	$18.60
Available: Ships in 7-12 days. Add to View Price
#19 SEAL (10X17X5.0) 09285-10004	$3.34
Available: Ships in 7-12 days. Add to View Price
