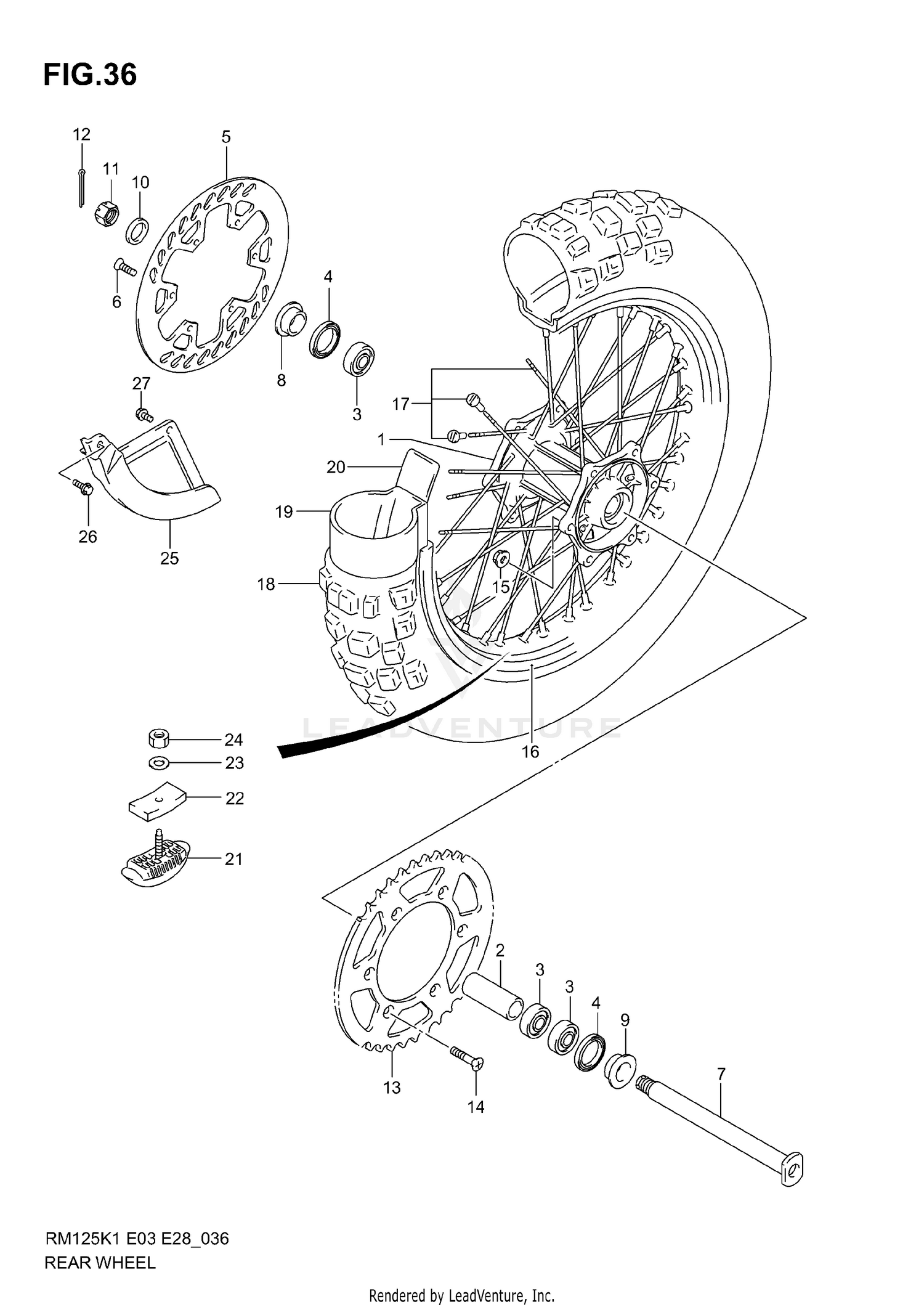

2006 Suzuki RM 125 REAR WHEEL (MODEL K1/K2) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR WHEEL
64111-36E00
|
$406.08 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
SPACER, BEARING (22.5X30X102)
64731-36E00
|
$34.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
BEARING (22X44X12)
09262-22033
|
$31.51 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
SEAL, DUST (30X44X7)
09283-30023
|
$7.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
DISC, REAR BRAKE
69211-37F00
|
$277.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
SCREW, SHIFT PAWL LIFTER
09120-06011
Superseded by 09120-06014
|
$2.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
AXLE, REAR
64711-37F10
|
$103.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
SPACER, RH
64751-36E00
|
$28.27 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
SPACER, LH
64751-36E00
|
$28.27 | ||
|
Unavailable |
|||
|
#10
WASHER
09160-19022
|
$4.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
NUT
08314-40183
Superseded by 08314-4018A
|
$4.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
PIN, REAR AXLE
04111-40308
Superseded by 04111-4030A
|
$1.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
SPROCKET, REAR (NT:49)
64511-28E00
|
$106.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
SPROCKET, REAR (NT:50)
64511-00B12
|
$110.92 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
SPROCKET, REAR (NT:48)
64511-14D60
|
$228.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
SPROCKET, REAR (NT:51)
64511-40261
|
$135.96 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
SCREW (8X30.5)
09120-08010
|
$2.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
NUT
09159-08067
|
$5.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
RIM, REAR WHEEL (2.15X19)
65311-36E00
|
$412.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
SPOKE SET, WHEEL
65320-37F00
|
$165.33 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
TIRE, REAR (100/90-19) (DUNLOP)
65110-36E10
|
$156.26 | ||
|
Unavailable |
|||
|
#19
TUBE
55200-44610
Superseded by 55200-44611
|
$34.75 | ||
|
Unavailable |
|||
|
#20
PROTECTOR, INNER TUBE
65261-01B30
|
$7.17 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
STOPPER, BEAD
65270-43D00
|
$51.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
CUSHION, BEAD STOPPER
65271-27C00
|
$6.48 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
WASHER
08322-01083
Superseded by 08322-0108A
|
$1.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
NUT
08310-00083
Superseded by 08310-0008A
|
$1.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
COVER, REAR DISC
69231-36E00
Superseded by 69231-37F01
|
$41.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
BOLT
01550-06203
Superseded by 01550-0620A
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
BOLT, CLAMP
01550-06123
Superseded by 01550-0612A
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
