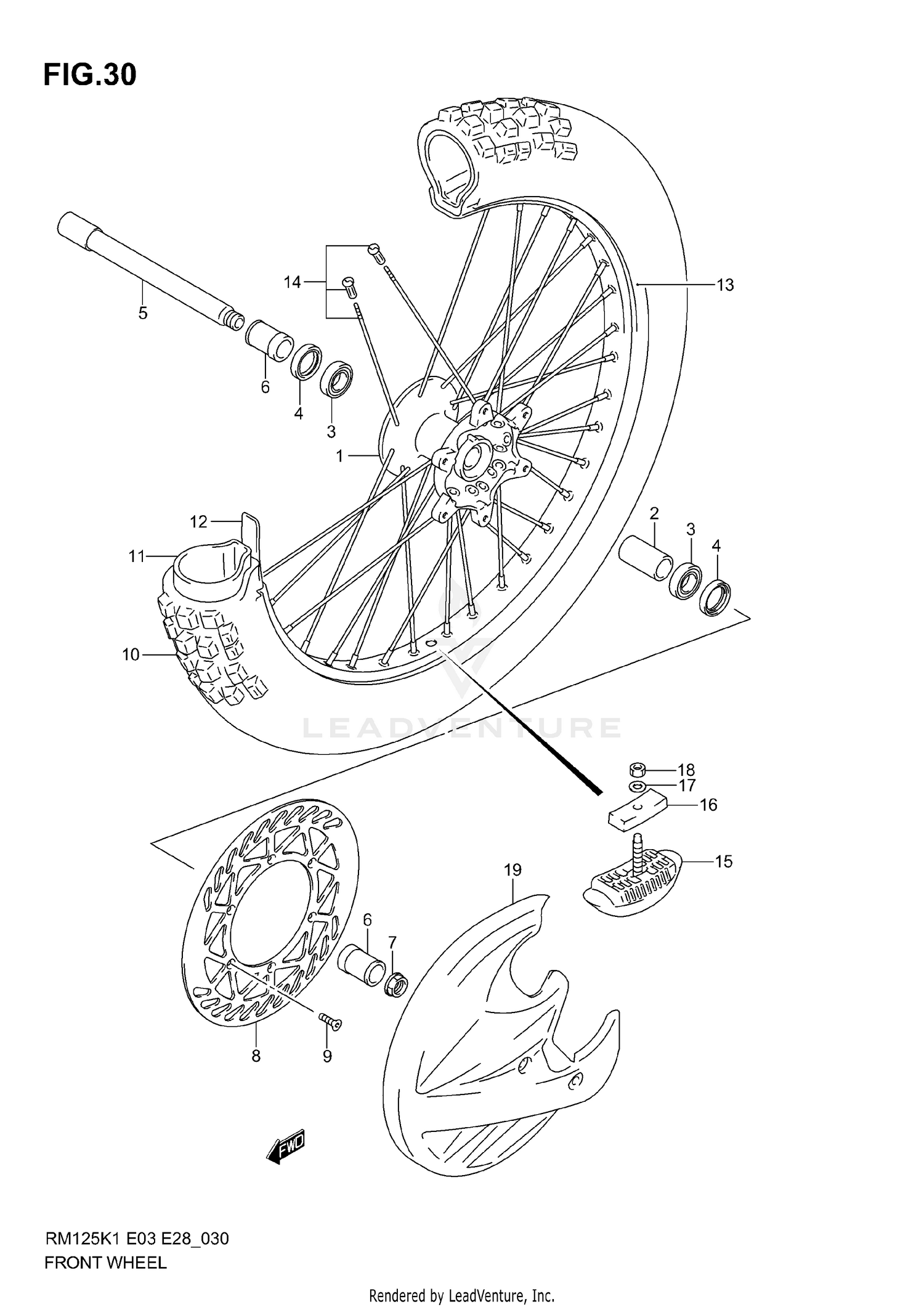

2005 Suzuki RM 125 FRONT WHEEL (MODEL K1/K2/K3/K4) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT WHEEL
54111-36E00
|
$269.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
SPACER, FRONT HUB (20.5X27.3X50)
54731-36E00
|
$18.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
BEARING
08130-69047
Superseded by 08130-6904B
|
$37.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
SEAL, FRONT HUB (28X37X7)
09283-28023
|
$10.11 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
AXLE, FRONT
54711-37F00
|
$93.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
SPACER, FRONT AXLE
54741-37F00
Superseded by 54741-37F01
|
$25.50 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
SPACER, FRONT AXLE
54741-37F01
|
$25.50 | ||
|
Unavailable |
|||
|
#7
NUT
09159-18016
|
$10.58 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
DISC, FRONT BRAKE
59221-37F00
Superseded by 59221-37F10
|
$192.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
DISC, FRONT BRAKE
59221-37F10
|
$192.26 | ||
|
Unavailable |
|||
|
#8
DISC, FRONT BRAKE
59220-37F20
|
$233.92 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
SCREW, SHIFT PAWL LIFTER
09120-06011
Superseded by 09120-06014
|
$2.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
SCREW
09120-06014
|
$2.41 | ||
|
Unavailable |
|||
|
#10
TIRE, FRONT (80/100-21) (DUNLOP)
55110-36E10
|
$141.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
TIRE, FRONT, 80/100-21 51M (DUNLOP)
55110-29F00
|
$140.22 | ||
|
Unavailable |
|||
|
#11
TUBE ASSY, WHEEL INNER
55200-29F00
|
$55.97 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
PROTECTOR, INNER TUBE
55261-44AF0
|
$6.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
RIM, FRONT WHEEL (1.60X21)
55311-28C00
Superseded by 55311-28C01
|
$304.10 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
RIM, FRONT WHEEL (1.85X20)
55311-37F00
|
$294.08 | ||
|
Unavailable |
|||
|
#14
SPOKE SET, FRONT WHEEL
55320-28E00
|
$120.06 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
SPOKE SET, FRONT WHEEL (20INCH)
55320-37F00
|
$102.80 | ||
|
Unavailable |
|||
|
#15
STOPPER, BEAD
65270-14300
|
$46.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
CUSHION, BEAD STOPPER
65271-27C00
|
$6.48 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
WASHER
08322-01083
Superseded by 08322-0108A
|
$1.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
NUT
08310-00083
Superseded by 08310-0008A
|
$1.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
COVER, FRONT BRAKE DISC
59231-36E20-YR1
Superseded by 59231-36E20-YU1
|
$60.27 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
COVER, FRONT BRAKE DISC
59231-36E20-YU1
|
$60.27 | ||
|
Unavailable |
|||
