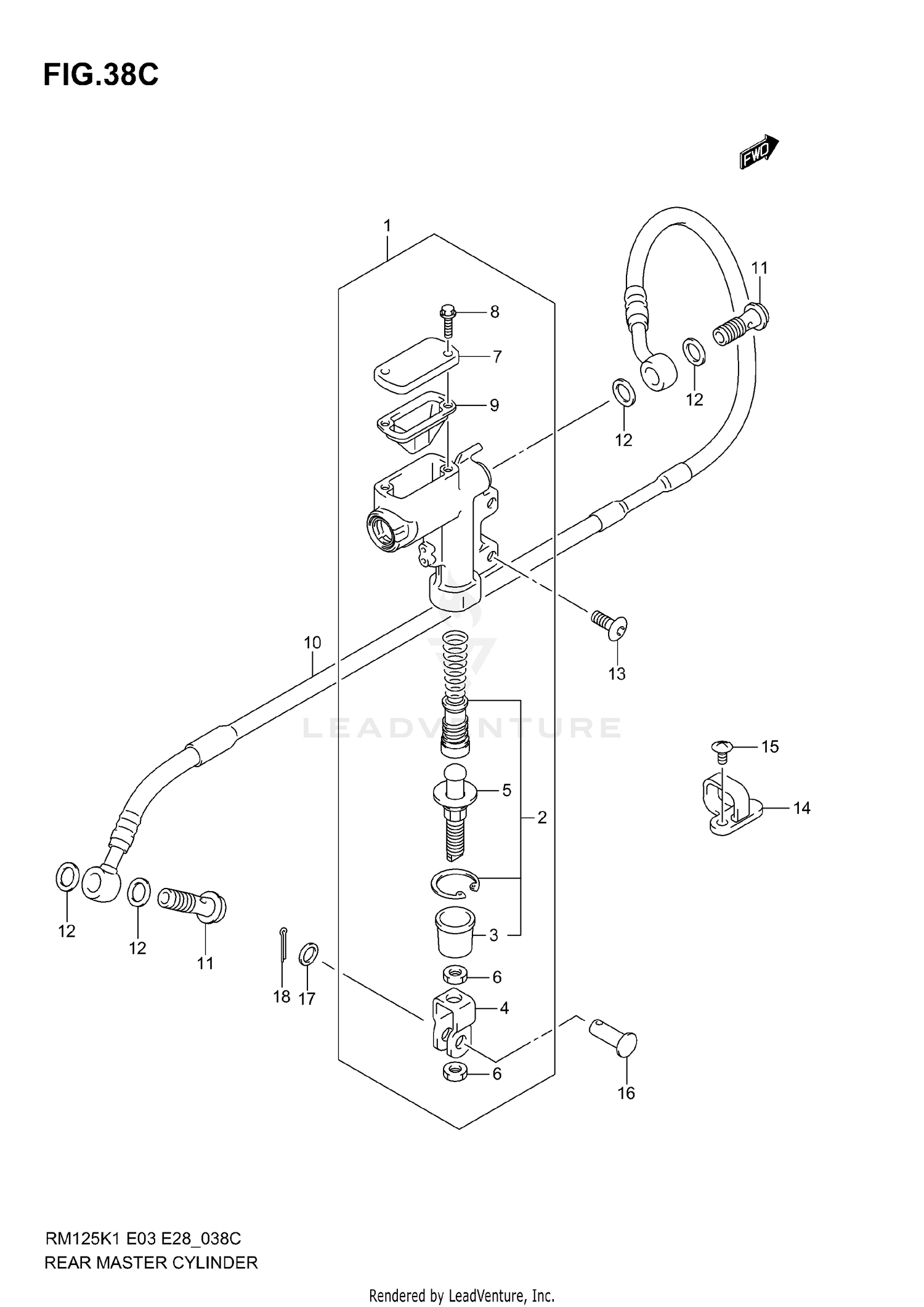

2004 Suzuki RM 125 REAR MASTER CYLINDER (MODEL K5/K6) OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 CYLINDER SET, REAR MASTER 69604-37F30	$260.99
Available: Ships in 7-12 days. Add to View Price
#2 .PISTON/CUP SET 69600-04820 Superseded by 69600-04821	$33.42
Unavailable
#3 BOOT 69691-00A00	$5.47
Available: Ships in 7-12 days. Add to View Price
#4 YOKE 69692-37F20	$18.70
Available: Ships in 7-12 days. Add to View Price
#5 ROD, PUSH 69670-27A30	$22.99
Available: Ships in 7-12 days. Add to View Price
#6 NUT 69693-05A00	$1.74
Available: Ships in 7-12 days. Add to View Price
#7 CAP 69669-37F20	$34.58
Available: Ships in 7-12 days. Add to View Price
#8 SCREW 69689-37F30	$3.75
Available: Ships in 7-12 days. Add to View Price
#9 DIAPHRAGM 69667-37F20	$14.17
Available: Ships in 7-12 days. Add to View Price
#10 HOSE,RR BRAKE 69480-36F30 Superseded by 69480-36F33	$56.44
Available: Ships in 7-12 days. Add to View Price
#11 UNION (10X1.25X22) 09360-10053	$7.53
Available: Ships in 7-12 days. Add to View Price
#12 WASHER (10X15X1.5) 09161-10009	$1.81
Available: Ships in 7-12 days. Add to View Price
#13 BOLT 09139-06139	$3.19
Available: Ships in 7-12 days. Add to View Price
#14 GUIDE,REAR BRAKE 61196-27C30 Superseded by 61196-27C50	$6.37
Unavailable
#15 SCREW 02142-05103 Superseded by 02142-0510B	$1.75
Available: Ships in 7-12 days. Add to View Price
#16 PIN 09200-08048	$2.75
Available: Ships in 7-12 days. Add to View Price
#17 WASHER 09160-08119 Superseded by 09160-08090	$2.34
Available: Ships in 7-12 days. Add to View Price
#18 .COTTER PIN 04111-20158 Superseded by 04111-2015A	$1.21
Available: Ships in 7-12 days. Add to View Price
