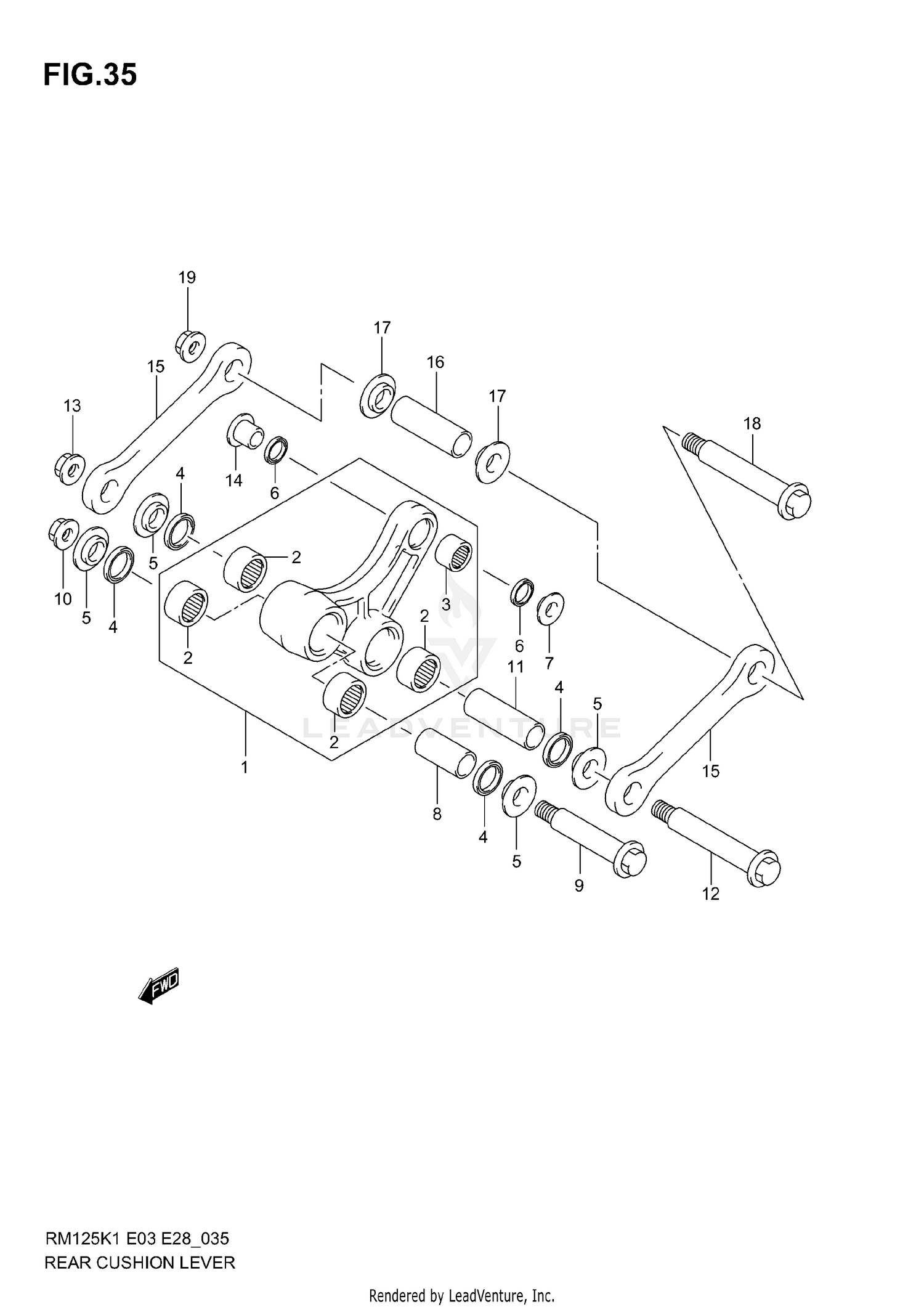

2004 Suzuki RM 125 REAR CUSHION LEVER (MODEL K1) OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 LEVER SET,REAR 62600-37840 Superseded by 62600-37841	$376.07
Available: Ships in 7-12 days. Add to View Price
#2 BEARING (20X27X15) 09263-20086	$16.35
Available: Ships in 7-12 days. Add to View Price
#3 BEARING (16X22X12) 09263-16033	$20.21
Available: Ships in 7-12 days. Add to View Price
#4 SEAL, DUST (19X27X4) 62624-14500	$6.22
Available: Ships in 7-12 days. Add to View Price
#5 SPACER 62647-37F00	$15.06
Available: Ships in 7-12 days. Add to View Price
#6 SEAL, REAR (16X22X2.5) 09284-16005	$6.94
Available: Ships in 7-12 days. Add to View Price
#7 SPACER, REAR LH 62685-37F00	$14.13
Available: Ships in 7-12 days. Add to View Price
#8 SPACER, FRONT (15X20X31) 62317-37F00	$18.42
Available: Ships in 7-12 days. Add to View Price
#9 BOLT, FRONT (12X76) 62658-37E01	$16.51
Available: Ships in 7-12 days. Add to View Price
#10 NUT 09159-12056	$7.35
Available: Ships in 7-12 days. Add to View Price
#11 SPACER, CENTER (15X20X44) 62646-37F00	$20.89
Available: Ships in 7-12 days. Add to View Price
#12 BOLT, CENTER (12X100) 62621-37F00	$19.42
Available: Ships in 7-12 days. Add to View Price
#13 NUT 09159-12056	$7.35
Unavailable
#14 SPACER, REAR (10X16X22) 62684-37F00	$20.85
Available: Ships in 7-12 days. Add to View Price
#15 ROD, REAR CUSHION LEVER 62641-37F00	$72.90
Unavailable
#16 SPACER, ROD (15X20X44) 62646-37F00	$20.89
Unavailable
#17 SPACER 62647-37F00	$15.06
Unavailable
#18 BOLT, ROD 62621-37F00	$19.42
Unavailable
#19 NUT 09159-12056	$7.35
Unavailable
