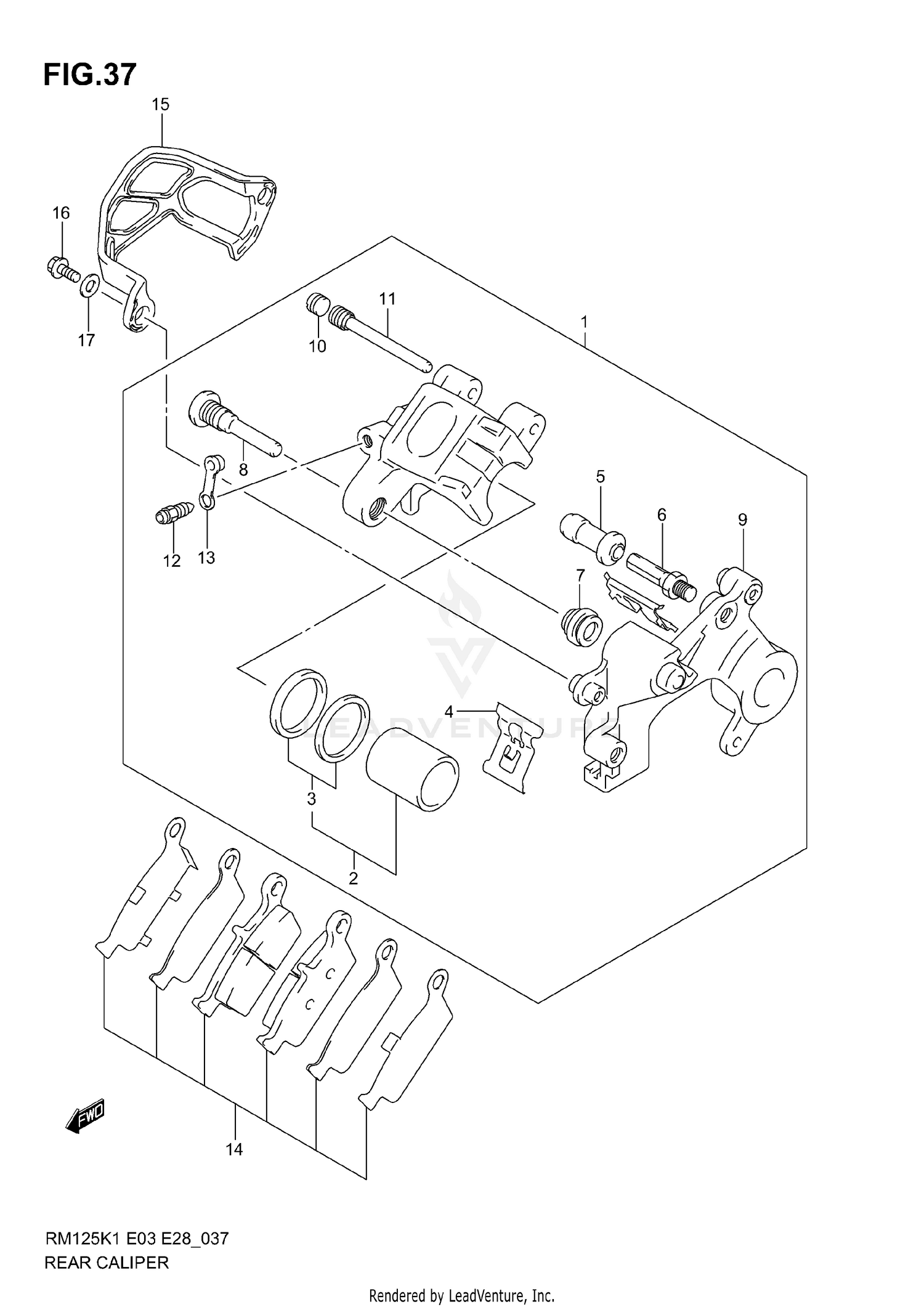

2004 Suzuki RM 125 REAR CALIPER (MODEL K1/K2/K3) OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 CALIPER ASSY, REAR 69100-37F20-999	$250.52
Available: Ships in 7-12 days. Add to View Price
#2 PISTON SET 69100-43810	$38.13
Available: Ships in 7-12 days. Add to View Price
#3 SEAL SET, PISTON 69100-36810	$9.39
Available: Ships in 7-12 days. Add to View Price
#4 SPRING 59315-36E00	$10.05
Available: Ships in 7-12 days. Add to View Price
#5 BOOT 59386-13A00	$8.22
Available: Ships in 7-12 days. Add to View Price
#6 PIN 59382-27C30	$9.33
Available: Ships in 7-12 days. Add to View Price
#7 BOOT 59303-14500	$5.71
Available: Ships in 7-12 days. Add to View Price
#8 PIN 59305-36E00	$18.83
Available: Ships in 7-12 days. Add to View Price
#9 BRACKET 69350-37F00	$145.71
Available: Ships in 7-12 days. Add to View Price
#10 PLUG, PIN 59146-21E10	$6.35
Available: Ships in 7-12 days. Add to View Price
#11 PIN 69345-43D00	$11.90
Available: Ships in 7-12 days. Add to View Price
#12 BLEEDER 59121-01A00	$9.03
Available: Ships in 7-12 days. Add to View Price
#13 CAP 59122-01A00	$4.49
Available: Ships in 7-12 days. Add to View Price
#14 PAD & RETAINER SET 69100-36860	$42.25
Available: Ships in 7-12 days. Add to View Price
#14 PAD & RETAINER SET 69100-37810	$45.66
Available: Ships in 7-12 days. Add to View Price
#15 REAR CALIPER GU 69725-29F00 Superseded by 69700-29821	$21.74
Available: Ships in 7-12 days. Add to View Price
#16 BOLT 01547-06123 Superseded by 01547-0612B	$1.21
Available: Ships in 7-12 days. Add to View Price
#17 .WASHER 08322-01063 Superseded by 08322-0106B	$2.21
Available: Ships in 7-12 days. Add to View Price
