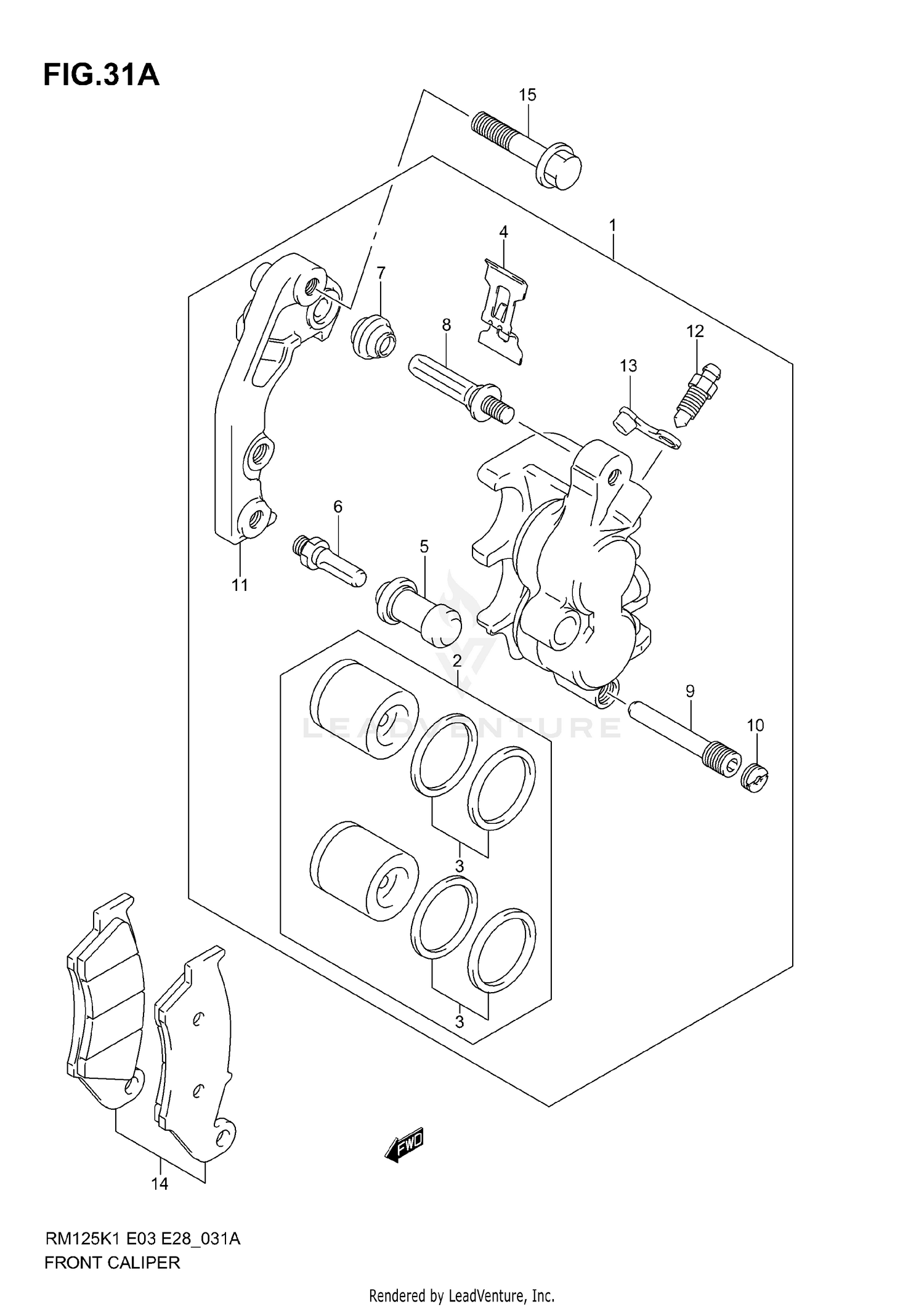

2001 Suzuki RM 125 FRONT CALIPER (MODEL K5/K6) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CALIPER ASSY, FRONT
59300-37F00-999
Superseded by 59300-37F04-999
|
$468.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
PISTON SET
59300-27840
|
$50.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
SEAL SET, PISTON
59300-13820
|
$16.61 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
SPRING
59315-13E00
|
$15.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
BOOT
59386-13A00
|
$8.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
PIN
59382-37F00
|
$10.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
BOOT
59303-14500
|
$5.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
PIN
59305-27C00
|
$20.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
PIN
59345-13E00
|
$14.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
PLUG
59146-21E10
|
$6.35 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
BRACKET
59350-13E00
|
$119.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
BLEEDER
59121-01A00
|
$9.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
CAP
59122-01A00
|
$4.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
PAD SET
59301-36810
|
$45.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
BOLT
09103-08403
|
$3.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
