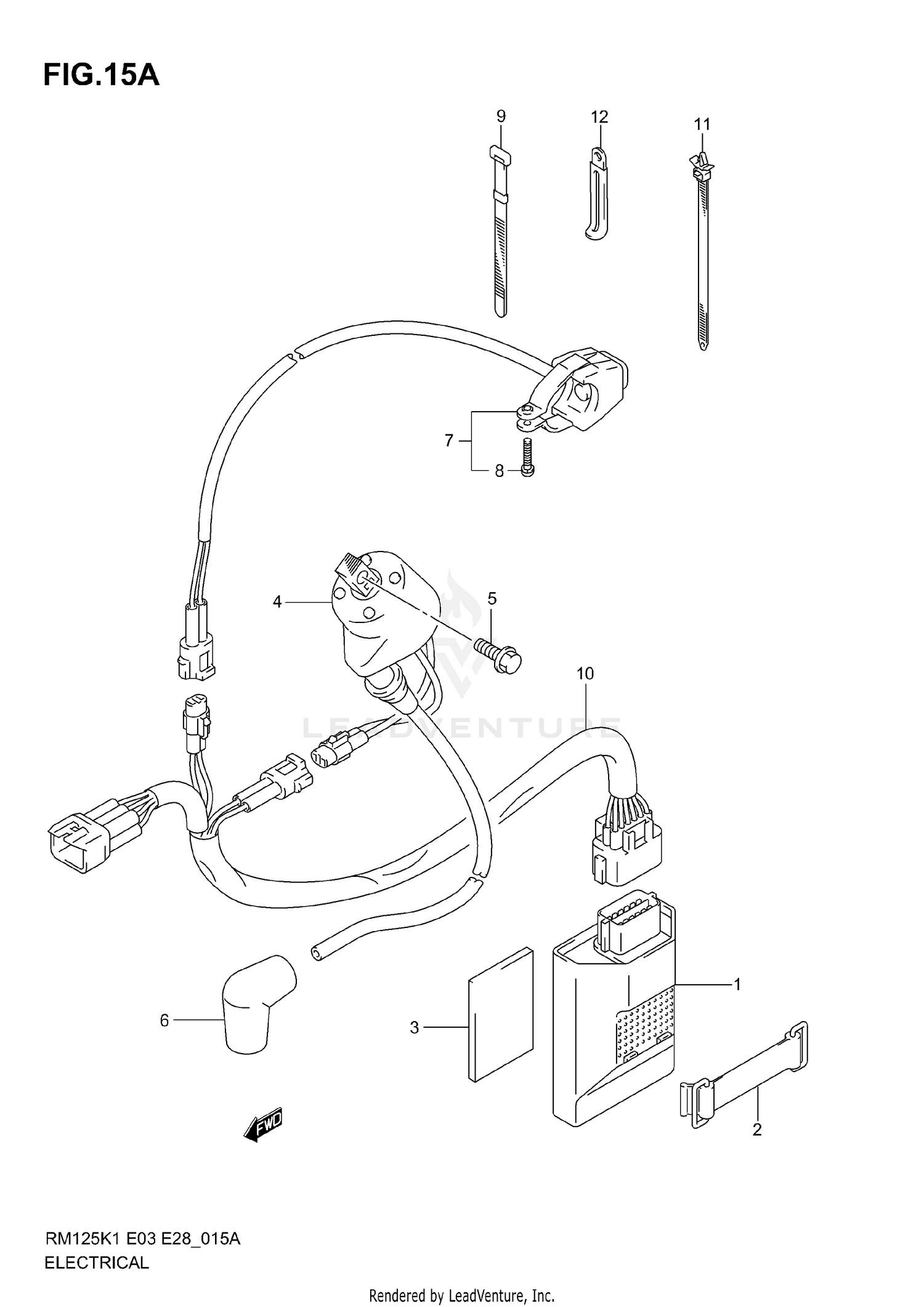

2001 Suzuki RM 125 ELECTRICAL (MODEL K4) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CDI UNIT
32900-36F20
|
$427.76 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
BAND, CDI UNIT
32942-14301
|
$12.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
PROTECTOR (170X95X3)
33651-37000
|
$4.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
COIL ASSY, IGNITION
33410-37F00
|
$111.42 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
BOLT (6X16)
09103-06234
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
CAP, SPARK PLUG
33510-20A02
|
$25.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
SWITCH ASSY, ENGINE STOP
37820-36E00
|
$29.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
SCREW
02112-33165
|
$1.13 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
CLAMP (L:120)
09407-12402
|
$3.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
HARNESS, WIRING
36610-36F20
|
$51.57 | ||
|
Unavailable |
|||
|
#11
CLAMP (L:90)
09407-11402
|
$1.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
CLAMP (L:45)
09404-06429
|
$1.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
