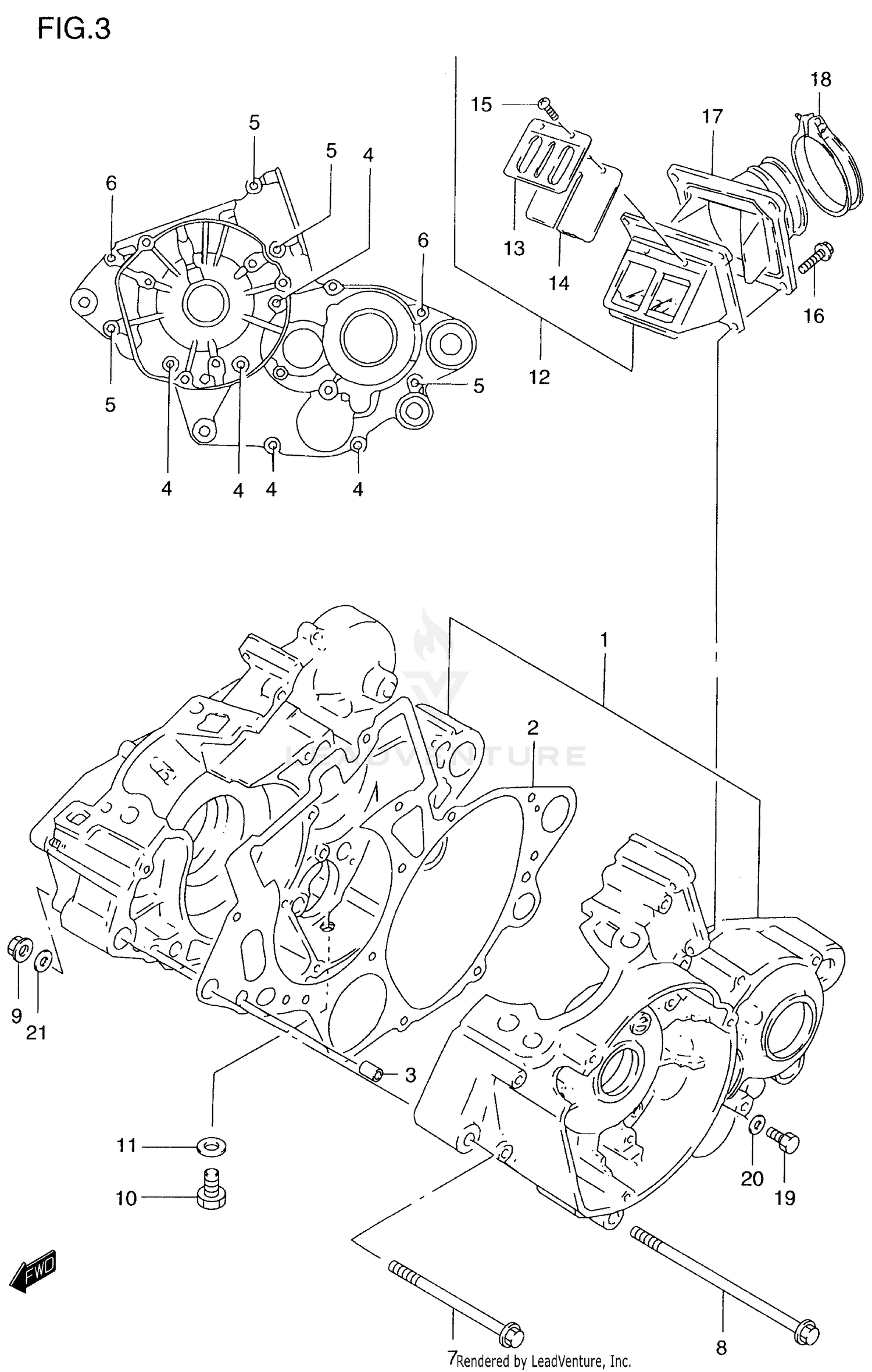

1998 Suzuki RM 125 CRANKCASE (MODEL T/V) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
11300-43862
Superseded by 11300-43863
|
$758.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#1
CRANKCASE SET
11300-36860
Superseded by 11300-36861
|
$826.50 | ||
|
Unavailable |
|||
|
#2
GASKET, CRANKCASE
11481-43D00
|
$21.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
PIN
04211-09129
|
$1.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
BOLT
01547-06453
Superseded by 01547-0645B
|
$2.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
BOLT
01547-06553
Superseded by 01547-0655B
|
$2.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
BOLT
01547-06603
Superseded by 01547-0660B
|
$3.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
BOLT (8X88)
09103-08010
|
$26.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
BOLT (8X125)
09103-08106
|
$4.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
NUT
09159-08034
|
$1.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
BOLT
01500-12163
Superseded by 01500-1216B
|
$3.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
GASKET
09168-12002
|
$1.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
VALVE ASSY,REED
13150-43D02
Superseded by 13150-36E01
|
$110.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
STOPPER,REED VA
13152-43D00
Superseded by 13152-43D01
|
$6.31 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
VALVE, REED
13153-43D00
|
$15.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
SCREW
02112-33083
Superseded by 02112-3308A
|
$1.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
BOLT
01547-06203
Superseded by 01547-0620B
|
$2.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
PIPE, INTAKE
13110-36E00
Superseded by 13110-36E01
|
$73.50 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
CLAMP
09402-56208
Superseded by 09402-56901
|
$5.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
SCREW (6X10)
09128-06004
Superseded by 09128-06044
|
$1.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
GASKET
09168-06004
|
$1.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
WASHER
09164-08020
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
