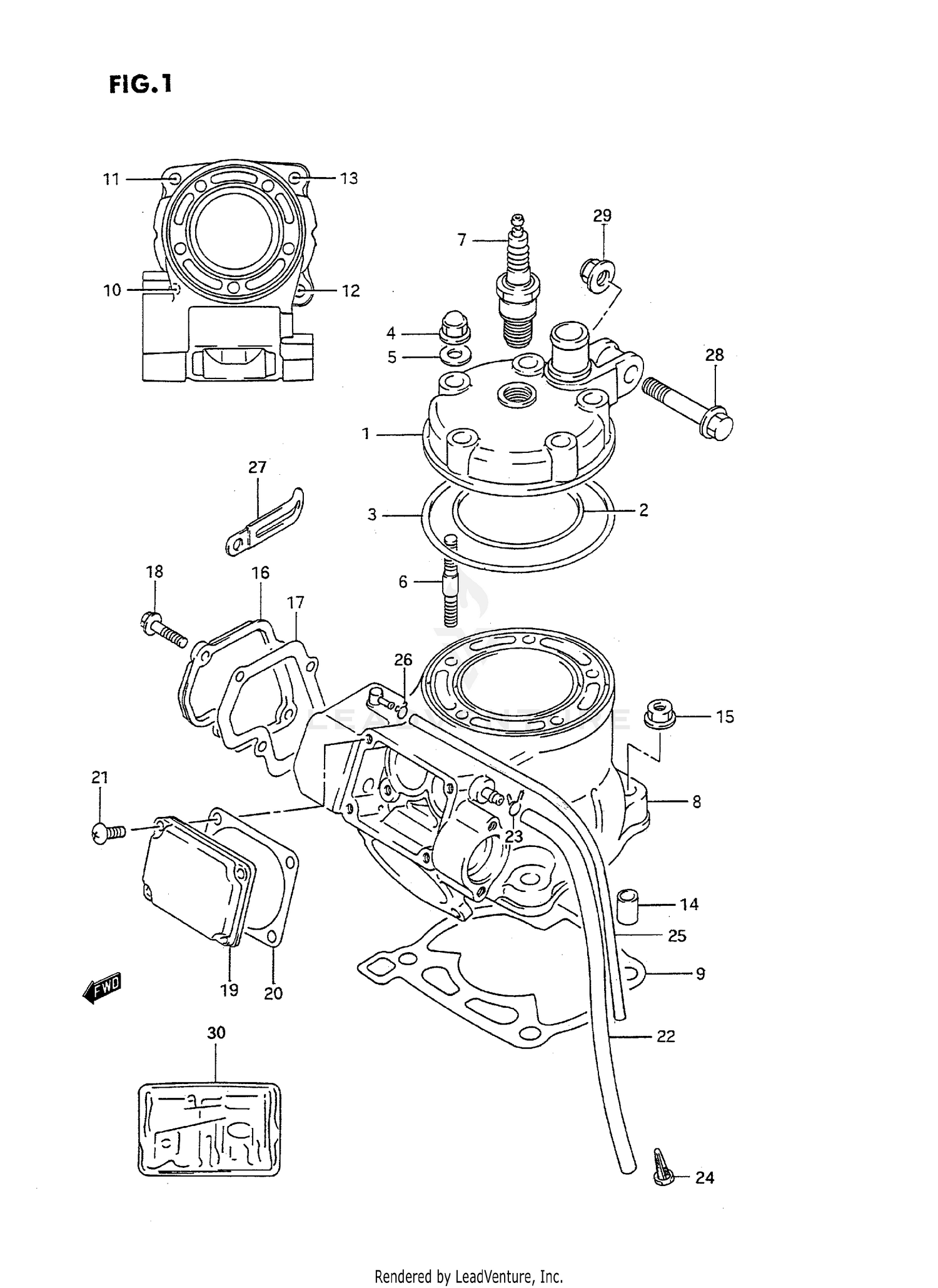

1994 Suzuki RM 125 CYLINDER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD,CYLINDER
11111-27C31
Superseded by 11111-27C35
|
$165.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#1
HEAD,CYLINDER
11111-27C32
Superseded by 11111-27C35
|
$165.46 | ||
|
Unavailable |
|||
|
#1
HEAD,CYLINDER
11111-27C33
Superseded by 11111-27C35
|
$165.46 | ||
|
Unavailable |
|||
|
#2
O RING, CYLINDER HEAD NO.1
11147-27C11
|
$10.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
O RING, CYLINDER HEAD NO.2
11148-27C11
|
$5.51 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
NUT
09159-08074
|
$5.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
WASHER
09168-08021
|
$2.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
STUD BOLT (8X38)
09108-08227
Superseded by 09108-08231
|
$3.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
SPARK PLUG (NGK,R4118S-9)
09482-00500
|
$10.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
NO DESCRIPTION AVAILABLE
11200-27832
Superseded by 11200-27861
|
$935.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
NO DESCRIPTION AVAILABLE
11200-27840
Superseded by 11200-27861
|
$935.75 | ||
|
Unavailable |
|||
|
#8
NO DESCRIPTION AVAILABLE
11200-27850
Superseded by 11200-27861
|
$935.75 | ||
|
Unavailable |
|||
|
#8
NO DESCRIPTION AVAILABLE
11200-27860
Superseded by 11200-27861
|
$935.75 | ||
|
Unavailable |
|||
|
#9
GASKET, CYLINDER
11241-27C10
|
$13.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
STUD BOLT
01421-08258
Superseded by 01421-0825A
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
STUD BOLT (8X30)
09108-08142
|
$3.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
STUD BOLT
01421-08358
Superseded by 01421-0835A
|
$2.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
STUD BOLT (8X40)
09108-08144
|
$3.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
PIN
09206-11004
|
$5.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
NUT (CHROME)
08316-16088
Superseded by 08316-10087
|
$2.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
NUT
08316-10083
Superseded by 08316-1008B
|
$2.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
COVER, CYLINDER NO.1
11231-27C30
|
$31.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
GASKET, CYLINDER COVER NO.1
11233-27C31
Superseded by 11233-27C34
|
$8.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
GASKET, CYLINDER COVER NO.1
11233-27C32
Superseded by 11233-27C34
|
$8.09 | ||
|
Unavailable |
|||
|
#18
BOLT
01547-06167
|
$1.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
BOLT
01547-06163
Superseded by 01547-0616B
|
$2.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
COVER, CYLINDER NO.2
11248-27C30
|
$27.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
GASKET, CYLINDE
11238-27C30
Superseded by 11238-42E00
|
$5.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
GASKET, CYLINDE
11238-27C31
Superseded by 11238-42E00
|
$5.52 | ||
|
Unavailable |
|||
|
#21
SCREW
02112-05167
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
BOLT
01500-05163
Superseded by 01500-0516B
|
$1.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
HOSE (9X14X220)
09343-09501
|
$11.58 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
CLIP
09401-12407
Superseded by 09401-12405
|
$2.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
CLIP
09401-12405
|
$2.21 | ||
|
Unavailable |
|||
|
#24
FILTER
11271-28E20
|
$13.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
HOSE,5X8.2X600
09352-50823-600
Superseded by 44420-44AR0
|
$9.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
CLIP
09401-08401
|
$1.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
CLAMP (L:65)
09404-06402
Superseded by 09404-06039
|
$1.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
CLAMP, CLUTCH CABLE
09404-06429
|
$1.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
BOLT (8X41)
09103-08083
|
$3.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
NUT
09159-08034
|
$1.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
NUT
09159-08067
|
$5.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
GASKET SET
11400-43862
Superseded by 11400-43867
|
$161.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
GASKET SET
11400-43863
Superseded by 11400-43867
|
$161.84 | ||
|
Unavailable |
|||
|
#30
GASKET SET
11400-43864
Superseded by 11400-43867
|
$161.84 | ||
|
Unavailable |
|||
|
#30
GASKET SET
11400-43865
Superseded by 11400-43867
|
$161.84 | ||
|
Unavailable |
|||
