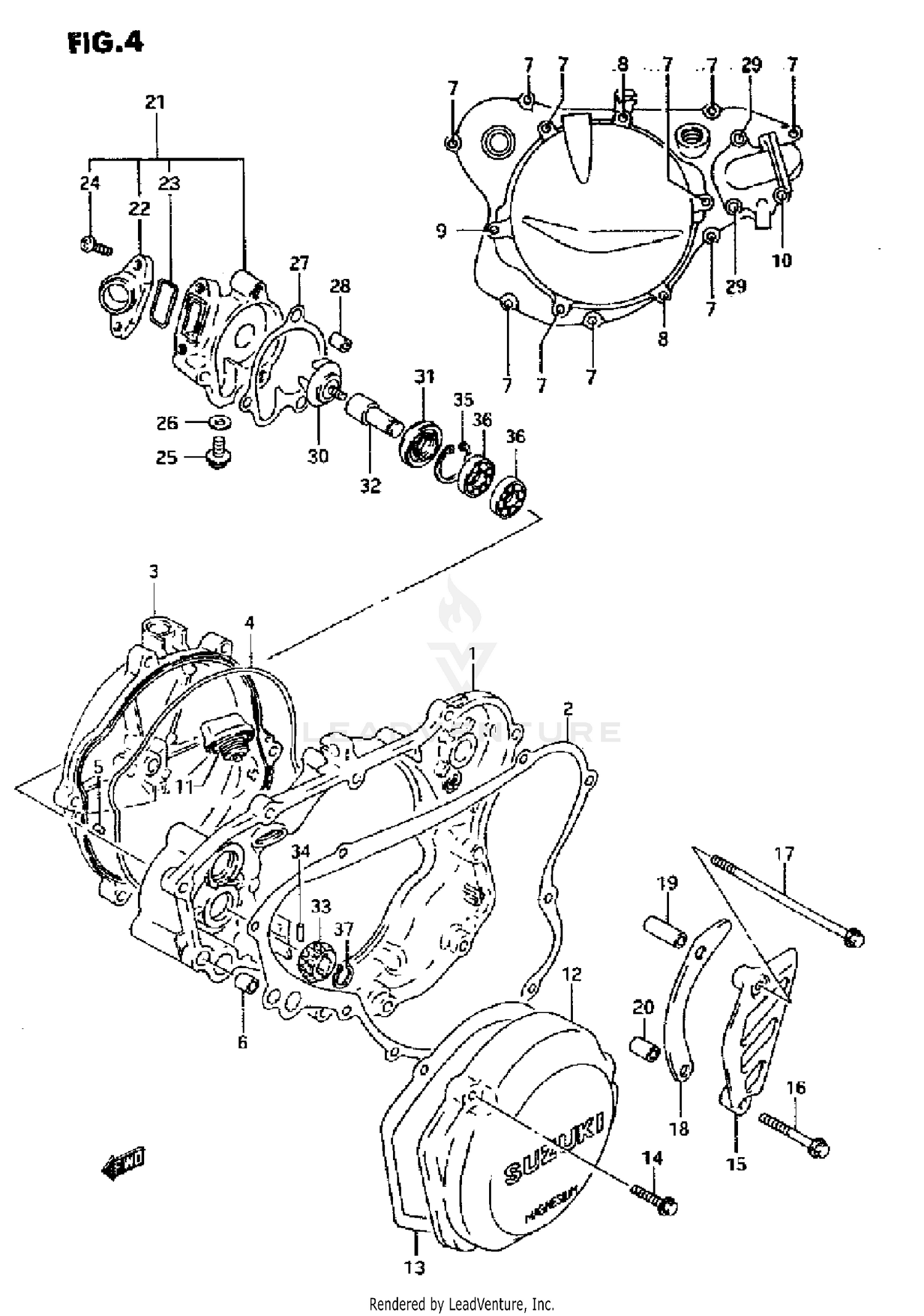

1993 Suzuki RM 125 CRANKCASE COVER - WATER PUMP OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CLUTCH
11341-43D00
Superseded by 11340-43811
|
$1,041.64 | ||
|
Unavailable |
|||
|
#1
COVER, CLUTCH
11340-43810
Superseded by 11340-43811
|
$1,041.64 | ||
|
Unavailable |
|||
|
#1
COVER, CLUTCH
11340-43811
|
$1,041.64 | ||
|
Unavailable |
|||
|
#2
GASKET, CLUTCH COVER
11482-43D00
Superseded by 11482-43D01
|
$19.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
GASKET, CLUTCH COVER
11482-43D01
|
$19.68 | ||
|
Unavailable |
|||
|
#3
COVER, CLUTCH OUTER
11371-43D00
Superseded by 11371-43D10
|
$219.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
COVER, CLUTCH OUTER
11371-43D10
|
$219.69 | ||
|
Unavailable |
|||
|
#4
O RING, CLUTCH OUTER COVER
11484-43D00
|
$17.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
PIN
04221-04089
|
$1.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
PIN
04211-09129
|
$1.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
BOLT
01547-06257
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
BOLT, FINAL GEAR CASE COVER
01547-06253
Superseded by 01547-0625B
|
$2.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
BOLT
01547-06657
|
$2.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
BOLT
01547-06653
Superseded by 01547-0665B
|
$3.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
BOLT
01547-06707
|
$2.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
BOLT
01547-06703
Superseded by 01547-0670B
|
$3.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
BOLT (6X100)
09103-06147
Superseded by 09103-06501
|
$3.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
BOLT (6X100)
09103-06501
|
$3.52 | ||
|
Unavailable |
|||
|
#11
PLUG SET
09200-20810
Superseded by 09200-20811
|
$4.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
COVER, MAGNETO
11351-43D00
Superseded by 11351-43D10
|
$173.45 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
COVER, MAGNETO
11351-43D10
|
$173.45 | ||
|
Unavailable |
|||
|
#13
GASKET, MAGNETO COVER
11483-43D00
|
$12.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
BOLT
01547-06257
|
$2.00 | ||
|
Unavailable |
|||
|
#14
BOLT, FINAL GEAR CASE COVER
01547-06253
Superseded by 01547-0625B
|
$2.41 | ||
|
Unavailable |
|||
|
#15
COVER, ENGINE SPROCKET
11360-27C00
Superseded by 11360-28E00
|
$33.13 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
COVER, SPROCKET
11360-28E00
|
$33.13 | ||
|
Unavailable |
|||
|
#16
BOLT
01547-06407
|
$2.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
BOLT
01547-06403
Superseded by 01547-0640B
|
$2.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT (6X100)
09103-06147
Superseded by 09103-06501
|
$3.52 | ||
|
Unavailable |
|||
|
#17
BOLT (6X100)
09103-06501
|
$3.52 | ||
|
Unavailable |
|||
|
#18
PLATE, CHAIN GUIDE
27641-27C10
|
$10.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
PLATE, CHAIN GUIDE
27641-27C00
|
$10.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
SPACER (6.5X10.5X25)
09180-06203
|
$2.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
SPACER (6.5X10.5X12)
09180-06221
|
$3.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
CASE, WATER PUMP
17410-43D01
Superseded by 17410-43D11
|
$114.06 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
CASE, WATER PUMP
17410-43D10
Superseded by 17410-43D11
|
$114.06 | ||
|
Unavailable |
|||
|
#21
CASE, WATER PUMP
17410-43D11
|
$114.06 | ||
|
Unavailable |
|||
|
#22
CONNECTOR
17412-28C10
Superseded by 17412-28E00
|
$35.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
CONNECTOR
17412-28E00
|
$35.89 | ||
|
Unavailable |
|||
|
#23
O RING
17414-14300
|
$3.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
SCREW
02112-06164
Superseded by 02112-0616A
|
$1.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
SCREW
02112-06163
Superseded by 02112-0616A
|
$1.40 | ||
|
Unavailable |
|||
|
#25
BOLT, DRAIN
17415-00B00
Superseded by 17415-43D00
|
$4.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
BOLT, DRAIN
17415-43D00
|
$4.47 | ||
|
Unavailable |
|||
|
#26
GASKET
17413-28C10
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
GASKET, WATER PUMP CASE
17431-43D00
|
$7.96 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
PIN
04211-09129
|
$1.62 | ||
|
Unavailable |
|||
|
#29
BOLT
01547-06357
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
BOLT, WATER PUMP
01547-06353
Superseded by 01547-0635B
|
$2.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
IMPELLER, WATER PUMP
17491-01B03
Superseded by 17491-43D01
|
$23.35 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
IMPELLER, WATER PUMP
17491-43D00
Superseded by 17491-43D01
|
$23.35 | ||
|
Unavailable |
|||
|
#31
OIL SEAL, WATER PUMP
17461-28C10
Superseded by 17461-03B00
|
$8.56 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
SHAFT, WATER PUMP
17511-27C10
Superseded by 17511-27C11
|
$44.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#33
GEAR, WATER PUMP DRIVEN
17441-27C10
Superseded by 17441-43D20
|
$45.98 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#33
GEAR, WATER PUMP DRIVEN
17441-43D20
|
$45.98 | ||
|
Unavailable |
|||
|
#34
PIN
09261-03010
|
$2.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
CIRCLIP
08331-41246
Superseded by 08331-41249
|
$2.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#36
BEARING
08113-69000
|
$24.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#37
CIRCLIP
08331-31106
Superseded by 08331-31109
|
$1.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
