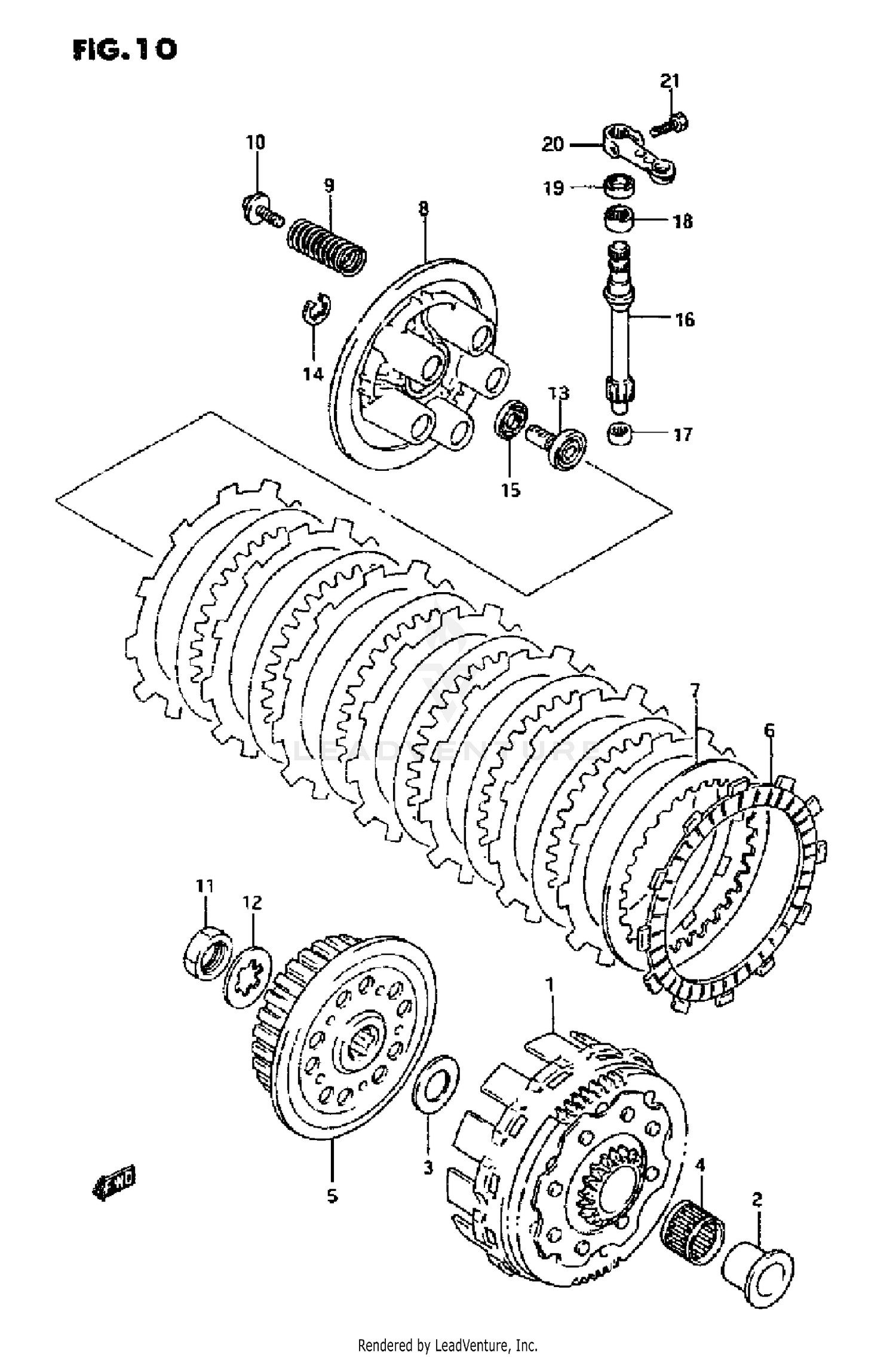

1993 Suzuki RM 125 CLUTCH OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR ASSY, PRIMARY DRIVEN
21200-43D00
Superseded by 21200-43D04
|
$297.17 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#1
GEAR ASSY, PRIMARY DRIVEN
21200-43D02
Superseded by 21200-43D04
|
$297.17 | ||
|
Unavailable |
|||
|
#2
SPACER
21251-00B00
Superseded by 21251-43D00
|
$36.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
SPACER
21251-43D00
|
$36.83 | ||
|
Unavailable |
|||
|
#3
WASHER
08211-20363
|
$3.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
BEARING (25X30X21.8)
09263-25046
|
$25.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
HUB, CLUTCH SLEEVE
21411-43D00
Superseded by 21411-43D04
|
$91.72 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
HUB, CLUTCH SLEEVE
21411-43D01
Superseded by 21411-43D04
|
$91.72 | ||
|
Unavailable |
|||
|
#5
HUB, CLUTCH SLEEVE
21411-43D02
Superseded by 21411-43D04
|
$91.72 | ||
|
Unavailable |
|||
|
#6
PLATE, DRIVE (T:2.8)
21441-43D00
|
$23.05 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
PLATE, DRIVEN (T:1.4)
21451-43D00
|
$10.31 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
DISC, CLUTCH PRESSURE
21462-43D00
Superseded by 21462-43D01
|
$42.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
SPRING
09440-18025
|
$6.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
SPRING, CLUTCH
09440-18026
Superseded by 09440-18030
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
BOLT (5X18)
09116-05019
|
$2.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
NUT
09140-20002
Superseded by 09140-20001
|
$3.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
LOCK WASHER
09167-20009
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
RACK
23165-28300
Superseded by 23165-46000
|
$22.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
RACK
23165-28301
Superseded by 23165-46000
|
$22.89 | ||
|
Unavailable |
|||
|
#13
RACK
23165-46000
|
$22.89 | ||
|
Unavailable |
|||
|
#14
E RING
08332-11086
Superseded by 08332-1108A
|
$1.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
CIRCLIP
08331-31106
Superseded by 08331-31109
|
$1.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
THRUST BEARING
09263-10002
|
$10.16 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
PINION
23261-00B20
|
$66.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
BEARING (9X13X10)
09263-09001
|
$12.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
BEARING (12X16X10)
09263-12024
|
$12.64 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
OIL SEAL (10X17X5)
09285-10004
|
$3.34 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
ARM, CLUTCH RELEASE
23271-20900
Superseded by 23271-20902
|
$30.64 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
ARM, CLUTCH RELEASE
23271-20901
Superseded by 23271-20902
|
$30.64 | ||
|
Unavailable |
|||
|
#21
BOLT, CANISTER
01107-06167
Superseded by 01500-06167
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
BOLT
01547-06163
Superseded by 01547-0616B
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
