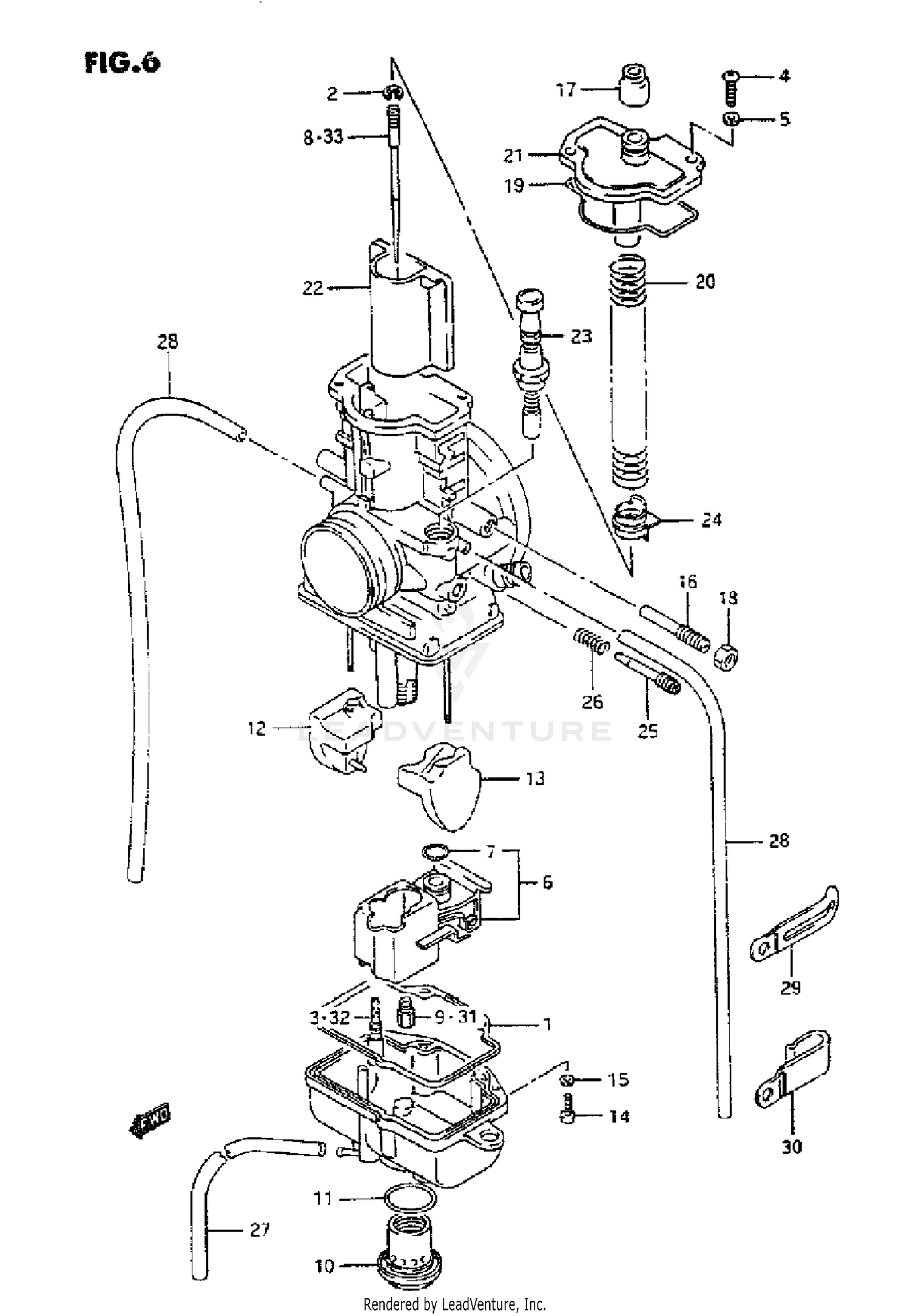

1993 Suzuki RM 125 CARBURETOR (MODEL N/P) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSY
13200-43D10
|
$384.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#1
CARBURETOR ASSY
13200-43D20
|
$392.05 | ||
|
Unavailable |
|||
|
#1
O RING, FLOAT CHAMBER
13696-26C00
|
$12.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
E RING
13394-31210
|
$4.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
JET, PILOT (50)
09492-50018
|
$15.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
JET, PILOT (55)
09492-55013
|
$15.45 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
SCREW
02112-04126
Superseded by 02112-0412A
|
$1.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
LOCK WASHER
08321-21046
Superseded by 08321-0104A
|
$1.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
VALVE ASSY, NEEDLE
13370-27C00
|
$73.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
O RING
13374-44080
Superseded by 13374-35C00
|
$6.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
NEEDLE, JET (6BEJ6-66-3)
13383-43D00
|
$14.34 | ||
|
Unavailable |
|||
|
#8
NEEDLE, JET (6AEJ02-63-3)
13383-27C30
|
$16.24 | ||
|
Unavailable |
|||
|
#9
JET, MAIN (320)
09491-64002
|
$10.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
JET, MAIN (360)
09491-72011
|
$10.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
CAP, DRAIN
13247-27C00
|
$17.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
O RING
13389-27C00
|
$5.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
FLOAT, RH
13252-01B20
|
$36.96 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
FLOAT, LH
13252-01B21
|
$36.96 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
SCREW
02112-03086
Superseded by 02112-0308A
|
$1.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
LOCK WASHER
08321-21036
Superseded by 08321-2103B
|
$1.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
ADJUSTER
13279-26C00
|
$10.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
.CAP
13681-04010
Superseded by 13681-04011
|
$5.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
NUT
13607-47070
|
$2.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
O RING, TOP CAP
13251-26C00
|
$10.59 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
SPRING, THROTTLE VALVE
13573-26C00
|
$10.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
CAP, TOP
13261-01B30
|
$14.76 | ||
|
Unavailable |
|||
|
#22
VALVE, THROTTLE (CA:4.0)
13551-27C00
|
$134.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
PLUNGER
13411-26C00
|
$47.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
RING
13424-26C00
|
$5.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
SCREW, PILOT (I 1/2)
13267-09400
|
$6.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
SPRING
13268-35010
|
$4.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
HOSE
09351-30503-600
Superseded by 09351-30001-600
|
$3.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
HOSE, AIR VENT (3.5X6.5X600)
09351-35653-600
|
$4.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
CLAMP (L:65)
09404-06402
Superseded by 09404-06039
|
$1.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
CLAMP
09403-06307
Superseded by 09403-06329
|
$1.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
JET, MAIN (290)
09491-58002
|
$11.56 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
JET, MAIN (300)
09491-60007
|
$11.43 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
JET, MAIN (310)
09491-62005
|
$10.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
JET, MAIN (330)
09491-66002
|
$9.97 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
JET, MAIN (340)
09491-68002
|
$9.97 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
JET, MAIN (350)
09491-70011
|
$9.97 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
JET, MAIN (360)
09491-72011
|
$10.36 | ||
|
Unavailable |
|||
|
#31
JET, MAIN (370)
09491-74003
|
$9.97 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
JET, MAIN (380)
09491-76003
|
$10.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
JET, MAIN (320)
09491-64002
|
$10.36 | ||
|
Unavailable |
|||
|
#31
JET, MAIN (330)
09491-66002
|
$9.97 | ||
|
Unavailable |
|||
|
#31
JET, MAIN (390)
09491-78005
|
$10.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
JET, MAIN (400)
09491-80010
|
$10.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
JET, MAIN (410)
09491-88001
|
$15.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
JET, PILOT (45)
09492-45026
|
$17.45 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
JET, PILOT (50)
09492-50018
|
$15.20 | ||
|
Unavailable |
|||
|
#32
JET, PILOT (55)
09492-55013
|
$15.45 | ||
|
Unavailable |
|||
|
#32
JET, PILOT (60)
09492-60013
|
$12.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
JET, PILOT (65)
09492-65007
|
$8.24 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
JET, PILOT (70)
09492-70008
|
$9.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#33
NEEDLE, JET (6BEJ6-65)
13383-43D10
|
$10.85 | ||
|
Unavailable |
|||
|
#33
NEEDLE, JET (6BEJ6-67)
13383-43D20
|
$9.69 | ||
|
Unavailable |
|||
|
#33
NEEDLE, JET (6AEJ02-64)
13383-27C10
|
$14.16 | ||
|
Unavailable |
|||
|
#33
NEEDLE, JET (6AEJ02-63)
13383-27C30
|
$16.24 | ||
|
Unavailable |
|||
|
#33
NEEDLE, JET (6AEJ02-62)
13383-27C40
|
$9.87 | ||
|
Unavailable |
|||
