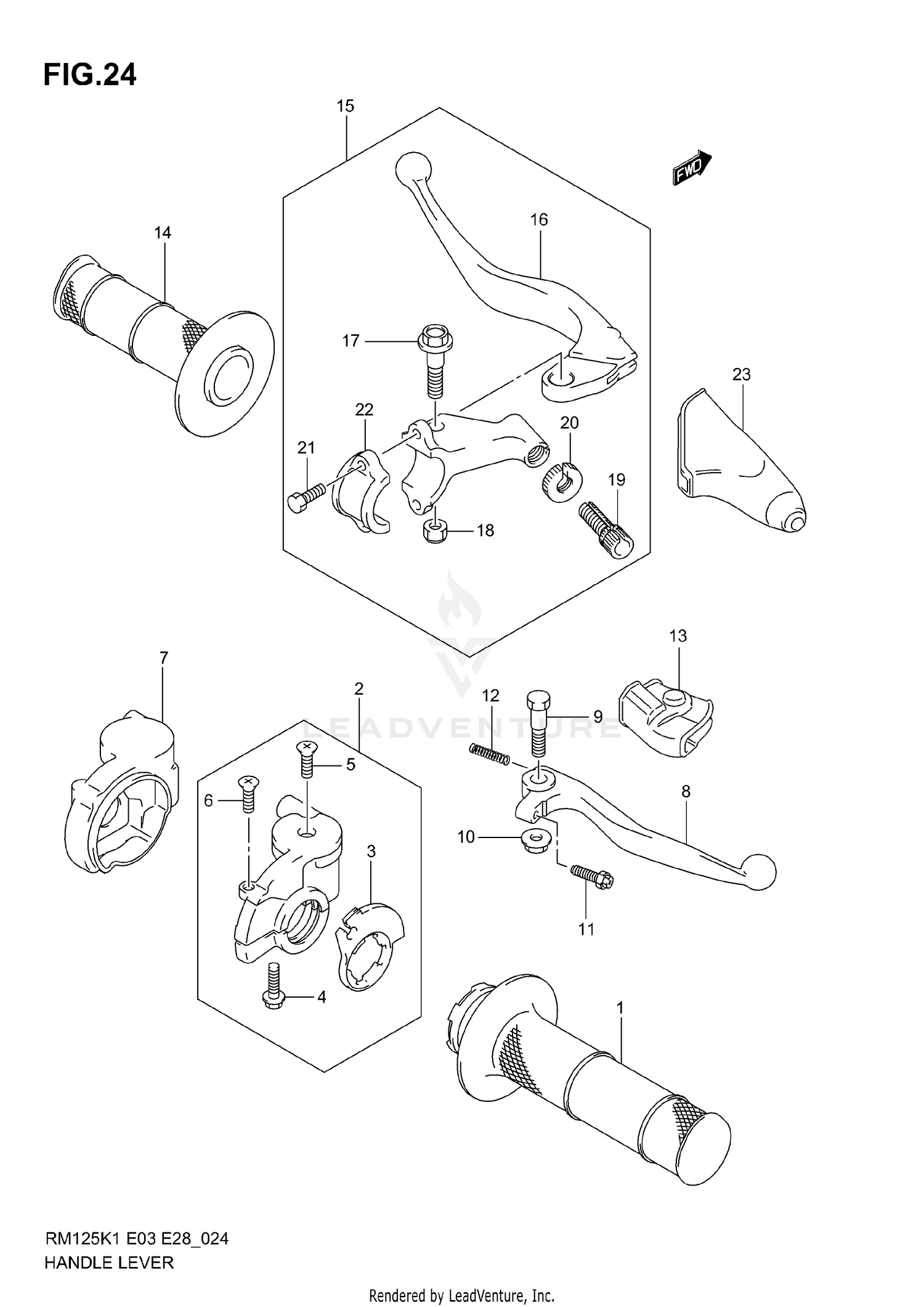

2006 Suzuki RM 125 HANDLE LEVER (MODEL K1/K2/K3) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GRIP, THROTTLE
57110-36E01
|
$34.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
CASE ASSY, THROTTLE
57100-28E01
|
$121.96 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
ROTOR
57114-28E00
|
$9.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
BOLT, FINAL GEAR CASE COVER
01547-06253
Superseded by 01547-0625B
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
SCREW
02122-04103
Superseded by 02122-0410A
|
$1.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
SCREW
02122-04163
Superseded by 02122-0416A
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
COVER, THROTTLE CASE
57129-28E01
|
$18.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
LEVER, BRAKE
57421-36E10
|
$36.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
BOLT
57431-14500
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
NUT
08316-10063
Superseded by 08316-1006B
|
$2.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BOLT, ADJUSTER
57430-36E00
|
$6.98 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
SPRING
57318-14502
|
$4.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
COVER, BRAKE LEVER
57341-36E00
|
$17.56 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
GRIP, LH
57211-36E01
Superseded by 57211-28H00
|
$17.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
LEVER ASSY,CLUT
57500-28C40
Superseded by 57500-28C42
|
$48.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
LEVER, CLUTCH
57621-28C40
|
$17.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
BOLT
57431-28C01
|
$7.42 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
.NUT
08319-21068
Superseded by 08319-2106A
|
$1.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
ADJUSTER, CABLE
57441-28C10
|
$12.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
NUT
57442-28C00
|
$11.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
BOLT
01500-05163
Superseded by 01500-0516B
|
$1.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
BRACKET, HOLDER
57512-28C00
|
$22.45 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
COVER,CLUTCH LEVER
57341-40001
Superseded by 57341-40003
|
$5.74 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
