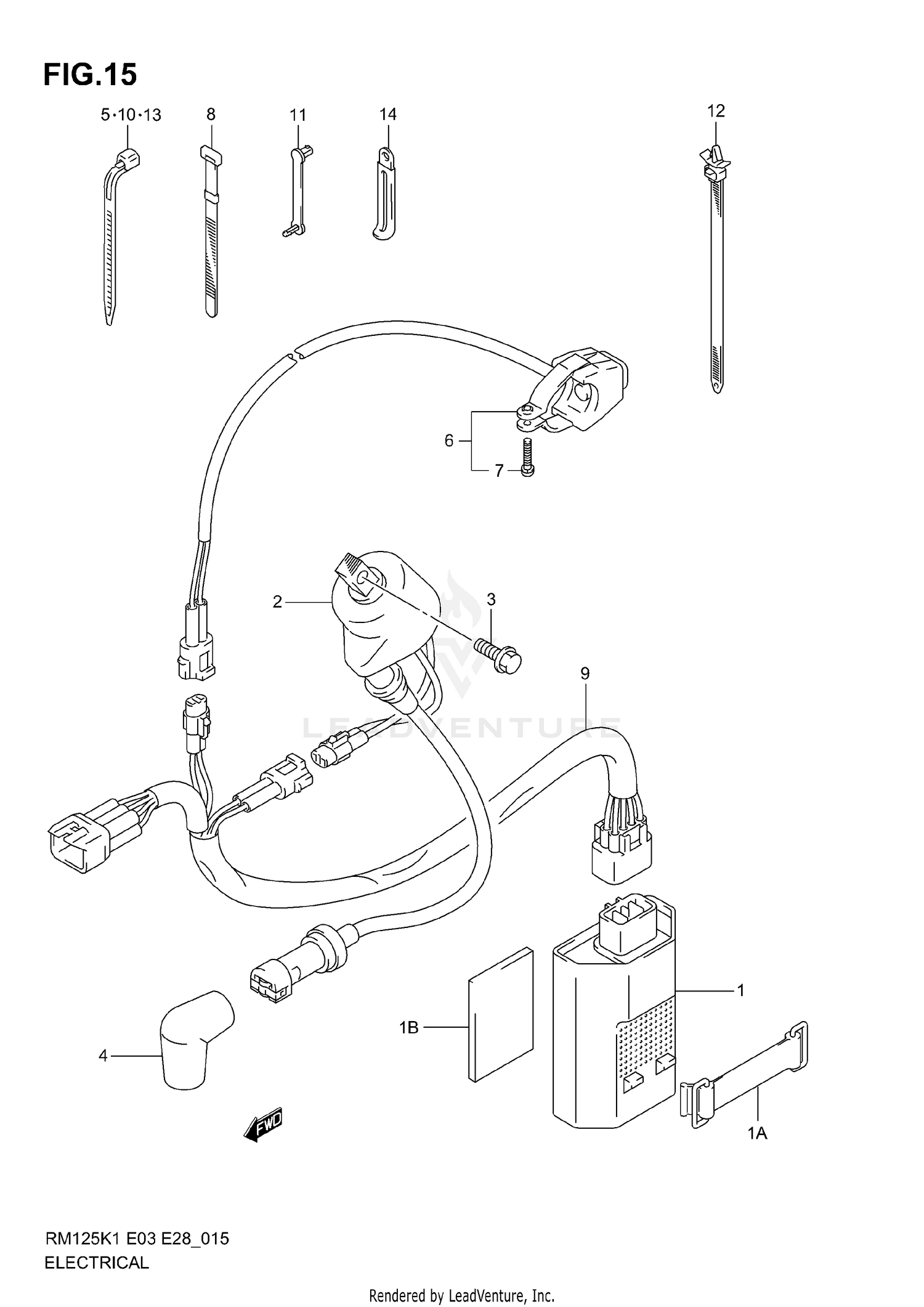

2006 Suzuki RM 125 ELECTRICAL (MODEL K1/K2/K3) OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 CDI UNIT 32900-36F10	$573.44
Available: Ships in 7-12 days. Add to View Price
#1A BAND, CDI UNIT 32942-14301	$12.30
Available: Ships in 7-12 days. Add to View Price
#1B PROTECTOR (170X95X3) 33651-37000	$4.62
Available: Ships in 7-12 days. Add to View Price
#2 COIL ASSY, IGNITION 33410-37E00 Superseded by 33410-08G00	$107.77
Available: Ships in 7-12 days. Add to View Price
#3 BOLT 01547-06163 Superseded by 01547-0616B	$2.41
In Stock: Ready to ship. Add to View Price
#3 BOLT (6X16) 09103-06234	$2.00
In Stock: Ready to ship. Add to View Price
#4 CAP, SPARK PLUG 33510-20A02	$25.26
Available: Ships in 7-12 days. Add to View Price
#5 CLAMP (L:165) 09407-18402	$2.15
Available: Ships in 7-12 days. Add to View Price
#6 SWITCH ASSY, ENGINE STOP 37820-36E00	$29.95
Available: Ships in 7-12 days. Add to View Price
#7 SCREW 02112-33165	$1.13
In Stock: Ready to ship. Add to View Price
#8 CLAMP (L:120) 09407-12402	$3.02
In Stock: Ready to ship. Add to View Price
#9 HARNESS, WIRING 36610-36F00	$73.71
Unavailable
#9 HARNESS, WIRING 36610-36F10	$67.11
Available: Ships in 7-12 days. Add to View Price
#10 CLAMP (L:235) 09407-25401	$4.62
Available: Ships in 7-12 days. Add to View Price
#11 CLAMP (L:63) 36651-48E00	$2.84
Available: Ships in 7-12 days. Add to View Price
#12 CLAMP (L:90) 09407-11402	$1.75
Available: Ships in 7-12 days. Add to View Price
#13 CLAMP (L:125) 09407-14403	$2.21
Available: Ships in 7-12 days. Add to View Price
#14 CLAMP (L:65) 09404-06432 Superseded by 09404-06039	$1.71
Available: Ships in 7-12 days. Add to View Price
