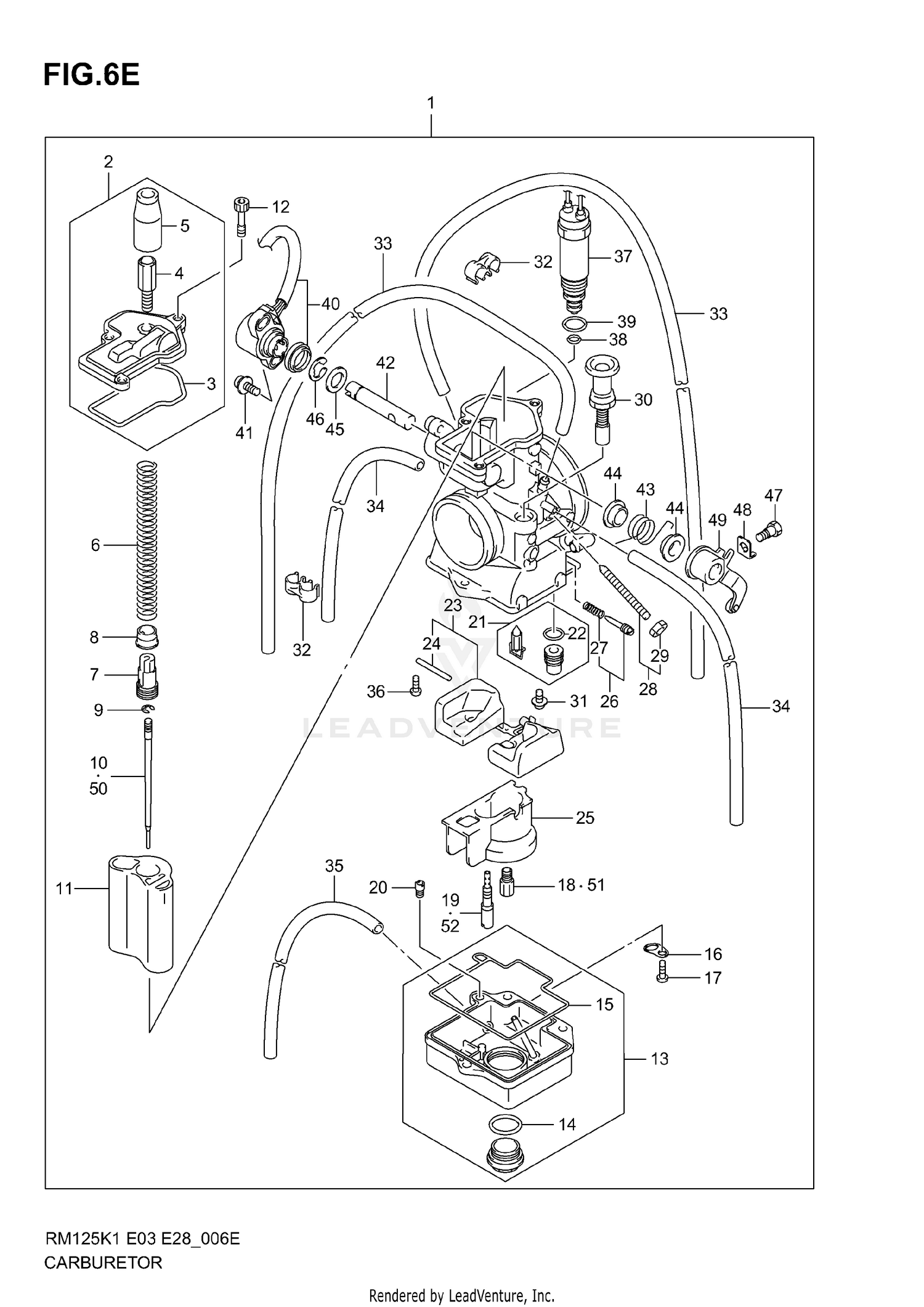

2006 Suzuki RM 125 CARBURETOR (MODEL K6) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSY
13200-36F80
Superseded by 13200-36F81
|
$553.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
TOP CAP ASSY
13260-36F10
|
$44.67 | ||
|
Unavailable |
|||
|
#3
PACKING
13258-36F10
|
$6.17 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
CAP, RUBBER
13681-36F00
|
$8.82 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
ADJUSTER, CABLE
13577-41612
|
$7.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
SPRING
13573-36F10
|
$9.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
GUIDE
13518-36F00
|
$7.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
RING
13424-36F00
|
$5.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
E RING, MULTIPLE JET NOZZLE
13394-17E60
|
$1.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
NEEDLE, JET
13383-36FM0
|
$17.58 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
VALVE, PISTON
13551-36F50
|
$186.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
BOLT
13262-36F00
|
$6.17 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
FLOAT BODY ASSY
13250-36F20
|
$91.45 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
O RING
13246-29630
|
$5.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
O RING
13251-36F00
|
$11.98 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
PLATE
13693-36500
|
$2.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
SCREW
13601-05148
Superseded by 13601-05148-XC0
|
$3.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
JET, MAIN (#370)
09491-74003
|
$9.97 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
JET, PILOT (42.5)
09492-42003
|
$15.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
JET, POWER (55)
09492-55012
|
$15.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
VALVE ASSY,NEED
13370-36F00
Superseded by 13370-36F01
|
$38.33 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
O RING
13374-35C00
|
$6.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
FLOAT SET
13240-36F00
|
$64.86 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
PIN, FLOAT
13254-20010
|
$3.74 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
HOLDER
13418-36F00
|
$8.50 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
ADJUSTER SET (AS)
13280-36F20
|
$14.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
SPRING
13268-35010
|
$4.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
ADJUSTER SET (PV)
13270-36F00
|
$13.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
NUT
13607-47070
|
$2.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
PLUNGER ASSY
13411-36F00
|
$53.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
SCREW
13602-05A10
|
$3.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
CLIP
13619-42E00
|
$4.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#33
HOSE (3.5X6.5X600)
09351-35653-600
|
$4.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#34
HOSE (3.5X6.5X600)
09351-35653-600
|
$4.62 | ||
|
Unavailable |
|||
|
#35
HOSE
09351-30503-600
Superseded by 09351-30001-600
|
$3.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#36
SCREW
02112-04083
Superseded by 02112-0408A
|
$1.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#37
SOLENOID ASSY
13160-36F00
|
$282.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#38
O RING
13453-36F00
|
$4.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39
O RING
13454-36F00
|
$5.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#40
SENSOR ASSY
13581-36F00
Superseded by 13581-36F01
|
$96.14 | ||
|
Unavailable |
|||
|
#41
SCREW
13605-39F00
|
$3.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#42
SHAFT
13582-36F00
|
$11.79 | ||
|
Unavailable |
|||
|
#43
TORSION SPRING
13583-36F00
|
$3.25 | ||
|
Unavailable |
|||
|
#44
RING
13584-36F00
|
$3.25 | ||
|
Unavailable |
|||
|
#45
WASHER
13557-47070
|
$3.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#46
E RING
13617-44080
|
$2.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#47
BOLT
13587-36F00
|
$4.09 | ||
|
Unavailable |
|||
|
#48
PLATE
13588-36F00
|
$3.58 | ||
|
Unavailable |
|||
|
#49
LEVER ASSY
13589-36F00
|
$33.85 | ||
|
Unavailable |
|||
|
#50
NEEDLE, JET (6CHY17-64)
13383-36FM0
|
$17.58 | ||
|
Unavailable |
|||
|
#50
NEEDLE, JET (6CHY17-63)
13383-36FP0
|
$17.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#50
NEEDLE, JET (6CHY17-62)
13383-36FR0
|
$17.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#50
NEEDLE, JET (6CHY17-61)
13381-36F00
|
$17.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#50
NEEDLE, JET (6CHY17-60)
13381-36F20
|
$13.11 | ||
|
Unavailable |
|||
|
#50
NEEDLE, JET (6CHY16-64)
13383-36FL0
|
$17.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#50
NEEDLE, JET (6CHY16-63)
13383-36FN0
|
$17.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#50
NEEDLE, JET (6CHY16-62)
13383-36FQ0
|
$17.58 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#50
NEEDLE, JET (6CHY16-61)
13383-36FS0
|
$17.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#50
NEEDLE, JET (6CHY16-60)
13381-36F10
|
$13.11 | ||
|
Unavailable |
|||
|
#51
JET, MAIN (#400)
09491-80010
|
$10.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#51
JET, MAIN (#410)
09491-82007
|
$11.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#51
JET, MAIN (#420)
09491-84008
|
$15.24 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#51
JET, MAIN (#430)
09491-86002
|
$10.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#51
JET, MAIN (#440)
09491-88001
|
$15.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#51
JET, MAIN (#450)
09491-90005
|
$15.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#51
JET, MAIN (#460)
09491-92002
|
$15.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#51
JET, MAIN (#470)
09491-94004
|
$15.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#51
JET, MAIN (#480)
09491-96001
|
$15.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#51
JET, MAIN (#490)
09491-98001
|
$15.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#51
JET, MAIN (#500)
09491-10001
|
$15.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#51
JET, MAIN (#350)
09491-70011
|
$9.97 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#51
JET, MAIN (#360)
09491-72011
|
$10.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#51
JET, MAIN (#370)
09491-74003
|
$9.97 | ||
|
Unavailable |
|||
|
#51
JET, MAIN (#380)
09491-76003
|
$10.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#51
JET, MAIN (#390)
09491-78005
|
$10.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#51
JET, MAIN (#300)
09491-60007
|
$11.43 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#51
JET, MAIN (#310)
09491-62005
|
$10.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#51
JET, MAIN (#320)
09491-64002
|
$10.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#51
JET, MAIN (#330)
09491-66002
|
$9.97 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#51
JET, MAIN (#340)
09491-68002
|
$9.97 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#52
JET, PILOT (25)
09492-25011
|
$15.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#52
JET, PILOT (27.5)
09492-27011
|
$15.61 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#52
JET, PILOT (30.0)
09492-30014
|
$15.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#52
JET, PILOT (32.5)
09492-32010
|
$15.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#52
JET, PILOT (35.0)
09492-35021
|
$15.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#52
JET, PILOT (37.5)
09492-37003
|
$15.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#52
JET, PILOT (40.0)
09492-40028
|
$15.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#52
JET, PILOT (42.5)
09492-42023
|
$15.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#52
JET, PILOT (45.0)
09492-45034
|
$26.90 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#52
JET, PILOT (47.5)
09492-47022
|
$15.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#53
WASHER, JET NEEDLE CLIP
13394-36F20
|
$4.96 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#54
HOLDER, GUIDE
13518-36F20
|
$10.87 | ||
|
Unavailable |
|||
