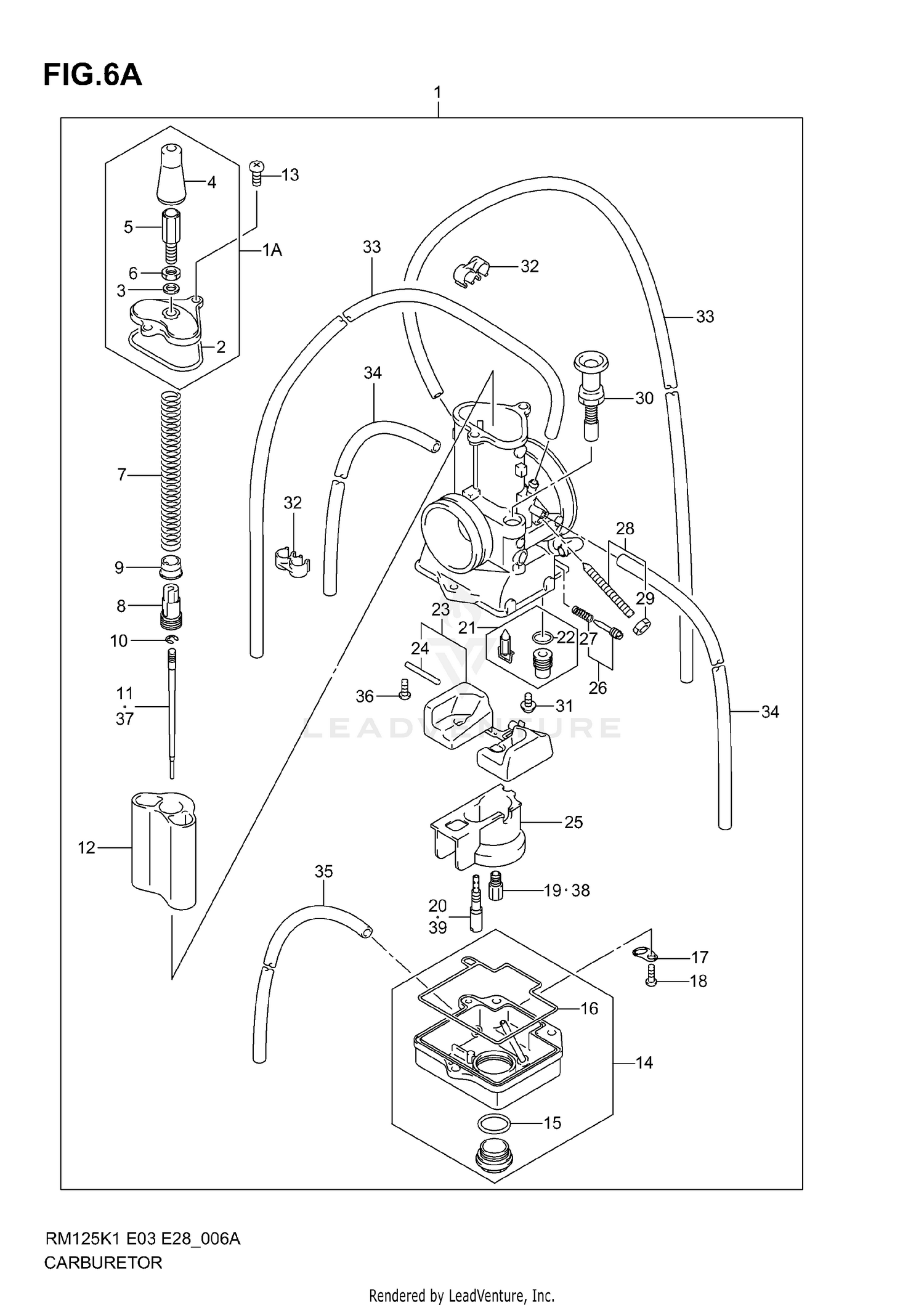

2006 Suzuki RM 125 CARBURETOR (MODEL K2) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSY
13200-36F10
|
$429.96 | ||
|
Unavailable |
|||
|
#1A
TOP CAP ASSY
13260-36F00
|
$52.10 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
PACKING
13258-36F00
|
$5.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
WASHER
13531-09300
|
$1.32 | ||
|
Unavailable |
|||
|
#4
CAP
13681-16600
|
$3.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
CABLE ADJUSTER
13577-41612
|
$7.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
NUT
13661-16600
|
$4.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
SPRING
13573-36F00
|
$9.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
GUIDE HOLDER
13518-36F00
|
$7.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
RING
13424-36F00
|
$5.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
E RING
13394-17E60
|
$1.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
NEEDLE, JET (6BGY27-77)
13383-36FC0
|
$17.61 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
PISTON, VALVE
13551-36F10
|
$187.08 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
SCREW
13602-48B10
|
$3.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
FLOAT BODY ASSY
13250-36F10
|
$82.01 | ||
|
Unavailable |
|||
|
#15
O RING
13246-29630
|
$5.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
O RING
13251-36F00
|
$11.98 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
PLATE
13693-36500
|
$2.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
SCREW
13601-05148
Superseded by 13601-05148-XC0
|
$3.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
JET, MAIN (460)
09491-92002
|
$15.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
JET, PILOT (32.5)
09492-32010
|
$15.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
VALVE ASSY,NEED
13370-36F00
Superseded by 13370-36F01
|
$38.33 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
O RING, NEEDLE VALVE
13374-35C00
|
$6.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
FLOAT SET
13240-36F00
|
$64.86 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
PIN
13254-20010
|
$3.74 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
HOLDER
13418-36F00
|
$8.50 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
ADJUSTER SET (AS)
13280-36F00
|
$12.58 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
SPRING
13268-35010
|
$4.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
ADJUSTER SET (PV)
13270-36F00
|
$13.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
NUT
13607-47070
|
$2.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
PLUNGER ASSY
13411-36F00
|
$53.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
SCREW
13602-05A10
|
$3.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
CLIP
13619-42E00
|
$4.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#33
HOSE (3.5X6.5X600)
09351-35653-600
|
$4.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#34
HOSE (3.5X6.5X600)
09351-35653-600
|
$4.62 | ||
|
Unavailable |
|||
|
#35
HOSE
09351-30503-600
Superseded by 09351-30001-600
|
$3.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#36
SCREW
02112-04083
Superseded by 02112-0408A
|
$1.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#37
NEEDLE, JET (6BGY27-71)
13383-36FJ0
|
$12.56 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#37
NEEDLE, JET (6BGY27-73)
13383-36FG0
|
$13.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#37
NEEDLE, JET (6BGY27-75)
13383-36FE0
|
$13.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#37
NEEDLE, JET (6BGY27-77)
13383-36FC0
|
$17.61 | ||
|
Unavailable |
|||
|
#37
NEEDLE, JET (6BGY27-79)
13383-36FA0
|
$17.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#37
NEEDLE, JET (6BGY28-71)
13383-36FK0
|
$11.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#37
NEEDLE, JET (6BGY28-73)
13383-36FH0
|
$10.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#37
NEEDLE, JET (6BGY28-75)
13383-36FF0
|
$14.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#37
NEEDLE, JET (6BGY28-77)
13383-36FD0
|
$17.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#37
NEEDLE, JET (6BGY28-79)
13383-36FB0
|
$13.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#38
JET, MAIN (400)
09491-80010
|
$10.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#38
JET, MAIN (410)
09491-82007
|
$11.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#38
JET, MAIN (420)
09491-84008
|
$15.24 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#38
JET, MAIN (430)
09491-86002
|
$10.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#38
JET, MAIN (440)
09491-88001
|
$15.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#38
JET, MAIN (450)
09491-90005
|
$15.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#38
JET, MAIN (460)
09491-92002
|
$15.78 | ||
|
Unavailable |
|||
|
#38
JET, MAIN (470)
09491-94004
|
$15.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#38
JET, MAIN (480)
09491-96001
|
$15.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#38
JET, MAIN (490)
09491-98001
|
$15.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#38
JET, MAIN (500)
09491-10001
|
$15.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#38
JET, MAIN (520)
09491-52008
|
$11.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#38
JET, MAIN (540)
09491-54003
|
$11.81 | ||
|
Unavailable |
|||
|
#38
JET, MAIN (560)
09491-56005
|
$15.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#38
JET, MAIN (580)
09491-58007
|
$11.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#38
JET, MAIN (600)
09491-60013
|
$11.81 | ||
|
Unavailable |
|||
|
#39
JET, PILOT (25)
09492-25011
|
$15.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39
JET, PILOT (27.5)
09492-27011
|
$15.61 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39
JET, PILOT (30)
09492-30014
|
$15.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39
JET, PILOT (32.5)
09492-32010
|
$15.20 | ||
|
Unavailable |
|||
|
#39
JET, PILOT (35)
09492-35021
|
$15.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
