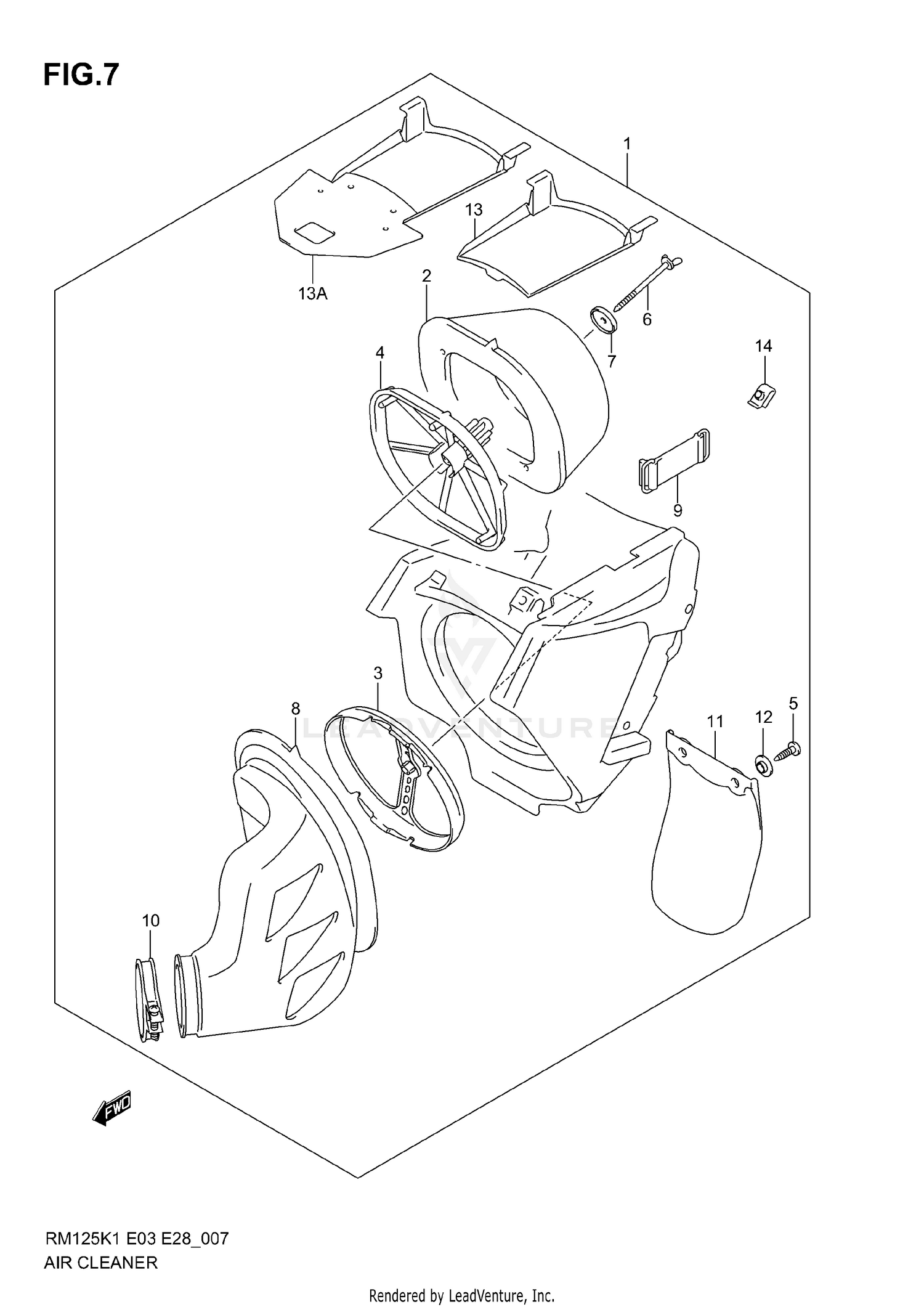

2006 Suzuki RM 125 AIR CLEANER (MODEL K1/K2/K3) OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 CLEANER ASSY, AIR 13700-36F01	$290.48
Available: Ships in 7-12 days. Add to View Price
#1 CLEANER ASSY, AIR 13700-36F10	$279.16
Available: Ships in 7-12 days. Add to View Price
#1 CLEANER ASSY, AIR 13700-36F20	$269.94
Unavailable
#2 FILTER ASSY 13780-36E20	$77.39
Available: Ships in 7-12 days. Add to View Price
#3 BASE, FILTER 13790-36E00	$20.96
Available: Ships in 7-12 days. Add to View Price
#4 HOLDER, FILTER 13791-36E00	$15.97
Available: Ships in 7-12 days. Add to View Price
#5 SCREW, TAPPING 13831-35F00	$2.34
Available: Ships in 7-12 days. Add to View Price
#6 BOLT, WING 13831-37E20	$8.56
Available: Ships in 7-12 days. Add to View Price
#7 WASHER 13792-13A01	$4.49
Available: Ships in 7-12 days. Add to View Price
#8 TUBE, OUTLET 13881-36F00	$53.33
Available: Ships in 7-12 days. Add to View Price
#8 TUBE, OUTLET 13881-36F10	$66.09
Available: Ships in 7-12 days. Add to View Price
#9 BAND, CDI UNIT 32942-14111	$8.88
Available: Ships in 7-12 days. Add to View Price
#10 CLAMP 09402-70203 Superseded by 09402-70902	$5.62
Available: Ships in 7-12 days. Add to View Price
#11 MUD GUARD 13738-36E01	$22.67
Available: Ships in 7-12 days. Add to View Price
#12 COLLAR, MUD GUARD 13838-02B00	$3.69
Available: Ships in 7-12 days. Add to View Price
#13 CAP, AIR CLEANER 13741-37F02	$18.42
Available: Ships in 7-12 days. Add to View Price
#13A CAP, AIR CLEANER 13740-36F20	$31.51
Available: Ships in 7-12 days. Add to View Price
#14 NUT 71812-82010 Superseded by 09148-06021	$3.69
Available: Ships in 7-12 days. Add to View Price
