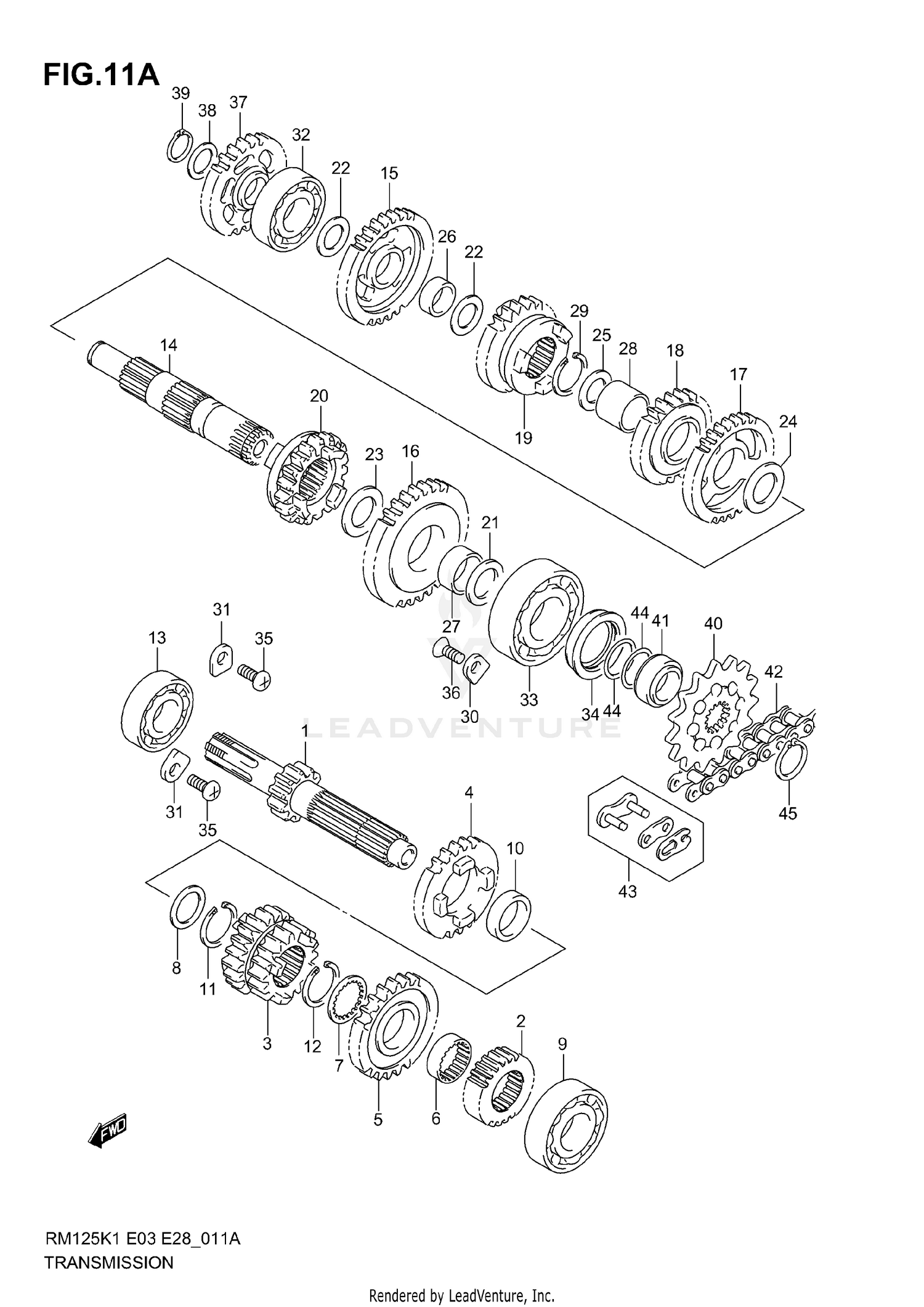

2001 Suzuki RM 125 TRANSMISSION (MODEL K4/K5/K6) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT,COUNTER
24120-36F10
Superseded by 24120-36F12
|
$234.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#1
SHAFT,COUNTER
24120-36F11
Superseded by 24120-36F12
|
$234.93 | ||
|
Unavailable |
|||
|
#2
GEAR, 2ND DRIVE (NT:16)
24221-36F10
|
$60.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
GEAR, 3RD & 4TH DRIVE
24231-36F00
|
$140.10 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
GEAR, 5TH DRIVE (NT:19)
24251-43D20
|
$93.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
GEAR, 6TH DRIVE (NT:20)
24261-43D01
|
$93.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
BUSH, 6TH DRIVE
24262-36F00
|
$25.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
WASHER LOCK, 6TH DRIVE
09167-22024
|
$3.59 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
WASHER, 5TH DRIVE (22X28X1.0)
09181-22139
|
$2.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
BEARING, CNTR SHAFT, LH
09262-17040
|
$21.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
BUSH, 5TH DRIVE GEAR
09300-22008
|
$12.58 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
CIRCLIP, 5TH DRIVE
09380-22006
|
$3.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
CIRCLIP, 6TH DRIVE
09380-22006
|
$3.09 | ||
|
Unavailable |
|||
|
#13
BEARING, CNTR SHAFT, RH
09262-20122
|
$24.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
SHAFT, DRIVE
24131-36F00
|
$171.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
GEAR, 1ST DRIVEN (NT:29)
24311-36F00
|
$104.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
GEAR, 2ND DRIVEN (NT:27)
24321-36F01
|
$104.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
GEAR, 3RD DRIVEN (NT:26)
24331-36E01
|
$103.44 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
GEAR, 4TH DRIVEN (NT:24)
24341-36E00
|
$99.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
GEAR, 5TH DRIVEN (NT:20)
24351-36F00
|
$95.92 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
GEAR, 6TH DRIVEN (NT:19)
24361-36E02
Superseded by 24361-36E03
|
$90.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
GEAR, 6TH DRIVEN (NT:19)
24361-36E03
|
$90.34 | ||
|
Unavailable |
|||
|
#21
WASHER, 2ND DRIVEN LH
09160-20074
|
$3.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
WASHER, 1ST DRIVEN (17X26X1)
09181-17167
|
$2.94 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
WASHER, 2ND DRIVEN (22X30X1)
09181-22167
|
$2.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
WASHER, 3RD DRIVEN (22X30X1)
09181-22167
|
$2.94 | ||
|
Unavailable |
|||
|
#25
WASHER, 4TH DRIVEN (22X30X1)
09181-22167
|
$2.94 | ||
|
Unavailable |
|||
|
#26
BUSH, 1ST DRIVEN
09300-17012
|
$22.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
BUSH, 2ND DRIVEN
09300-22008
|
$12.58 | ||
|
Unavailable |
|||
|
#28
BUSH, 3RD & 4TH DRIVEN
09300-22018
|
$19.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
CIRCLIP, 4TH DRIVEN
09380-22006
|
$3.09 | ||
|
Unavailable |
|||
|
#30
RETAINER, DRIVE SHAFT BEARING
24741-20A00
|
$2.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
RETAINER, CNTR SHAFT BEARING
24741-21A00
|
$2.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
BEARING, DRIVE SHAFT RH
09262-17040
|
$21.16 | ||
|
Unavailable |
|||
|
#33
BEARING, DRIVE SHAFT LH
09262-20110
|
$27.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#34
SEAL, DRIVE SHAFT OIL
09289-28012
|
$9.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
SCREW
02112-06103
Superseded by 02112-0610B
|
$1.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#36
SCREW
02122-06123
Superseded by 02122-0612A
|
$1.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
GEAR, KICK IDLE (NT:26)
26260-43D00
Superseded by 26260-43D01
|
$74.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#37
GEAR, KICK IDLE (NT:26)
26260-43D01
|
$74.66 | ||
|
Unavailable |
|||
|
#38
WASHER (17X24X0.50)
09181-17130
|
$2.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39
CIRCLIP
08331-31176
Superseded by 08331-31179
|
$1.86 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#40
SPROCKET, ENGINE (NT:12)
27511-14111
|
$20.10 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#40
SPROCKET, ENGINE (NT:13)
27511-14121
|
$29.97 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#41
SPACER
27531-43D00
|
$26.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#42
CHAIN ASSY,DRIVE
27600-43D01-114
Superseded by 27600-46K00-114
|
$123.42 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43
.JOINT SET,CHAIN
27620-43D00
Superseded by 27620-46K00
|
$8.37 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#44
O RING (D:1.9,ID:19.8)
09280-20006
|
$1.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#45
CIRCLIP
09380-20007
|
$2.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
