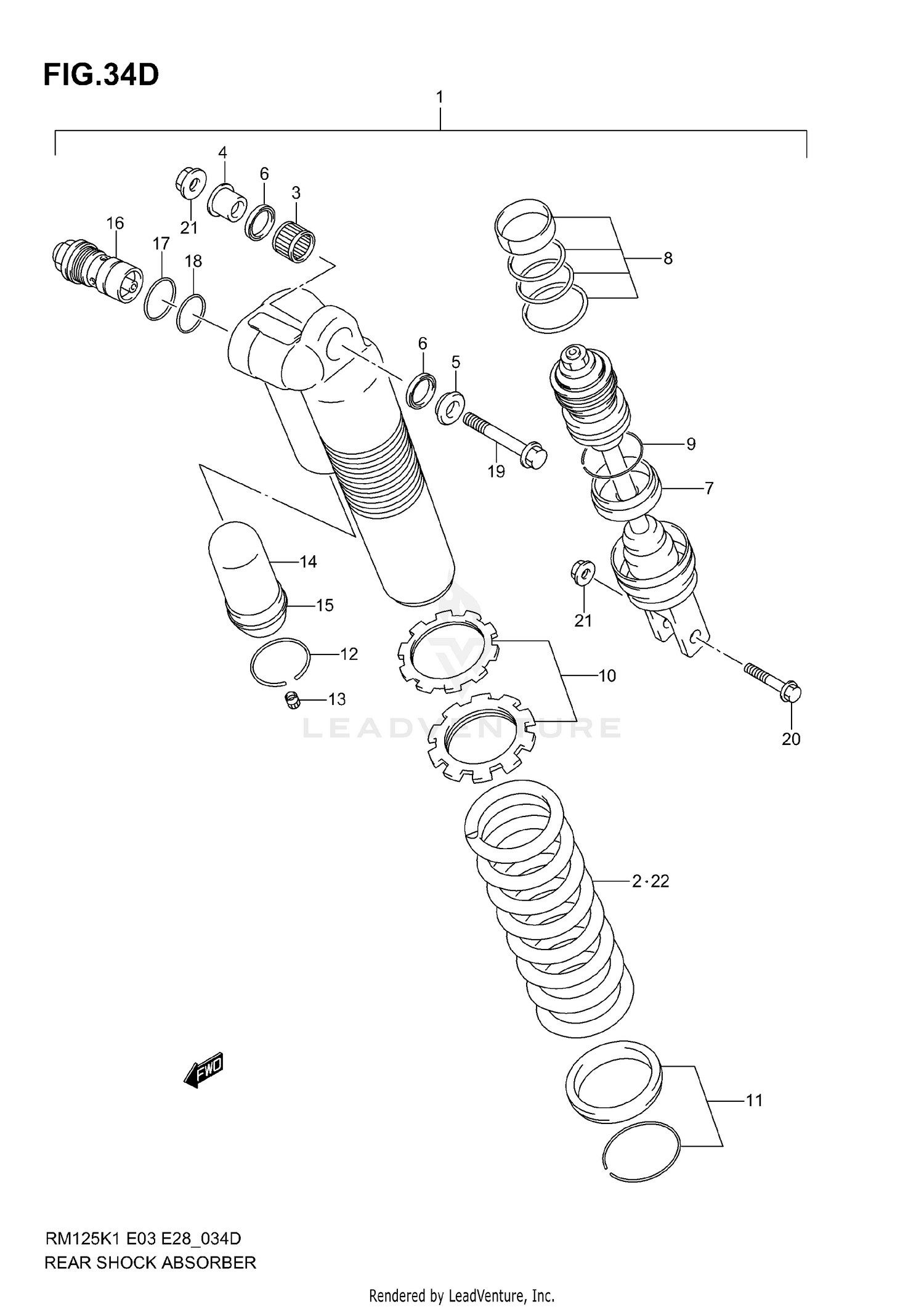

2001 Suzuki RM 125 REAR SHOCK ABSORBER (MODEL K6) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ABSORBER ASSY, RR SHOCK (RED)
62100-36FL0-YKS
|
$2,445.82 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#1
ABSORBER ASSY, RR SHOCK (RED)
62100-36FK0-YKS
|
|||
|
Unavailable |
|||
|
#2
SPRING (K=5.1)
62211-37FJ0
|
$399.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
BEARING (16X22X12)
09263-16033
|
$20.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
SPACER, BEARING RH
62684-36F00
|
$20.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
SPACER, BEARING LH
62685-36F00
|
$13.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
SEAL, DUST RH
09284-16005
|
$6.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
ROD, PISTON
62120-36FL0
|
$762.98 | ||
|
Unavailable |
|||
|
#8
O RING SET
62150-36EB0
|
$62.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
RING, STOPPER
62279-36E80
|
$7.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
ADJUSTER SET
62190-36F00
|
$102.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
SPRING SEAT SET
62220-36F00
|
$75.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
RING, STOPPER
62278-36E00
|
$7.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
CAP
51294-20400
|
$6.44 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
BLADDER
62273-36F00
|
$56.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
CAP, CHAMBER
62275-36E00
|
$56.33 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
BOLT, PLUG
62130-37FH0
|
$167.73 | ||
|
Unavailable |
|||
|
#17
O RING
62131-28E00
|
$4.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
O RING
51174-43D00
|
$4.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
BOLT
09103-10360
|
$4.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT
62221-37F30
|
$6.56 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
NUT
09159-10067
|
$6.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
SPRING (SOFT,K=4.6)
62211-36F60
|
$292.77 | ||
|
Unavailable |
|||
|
#22
SPRING (SOFT,K=4.8)
62211-37FH0
|
$307.47 | ||
|
Unavailable |
|||
|
#22
SPRING (HARD,K=5.3)
62211-37FK0
|
$399.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
SPRING (HARD,K=5.5)
62211-37FL0
|
$283.10 | ||
|
Unavailable |
|||
