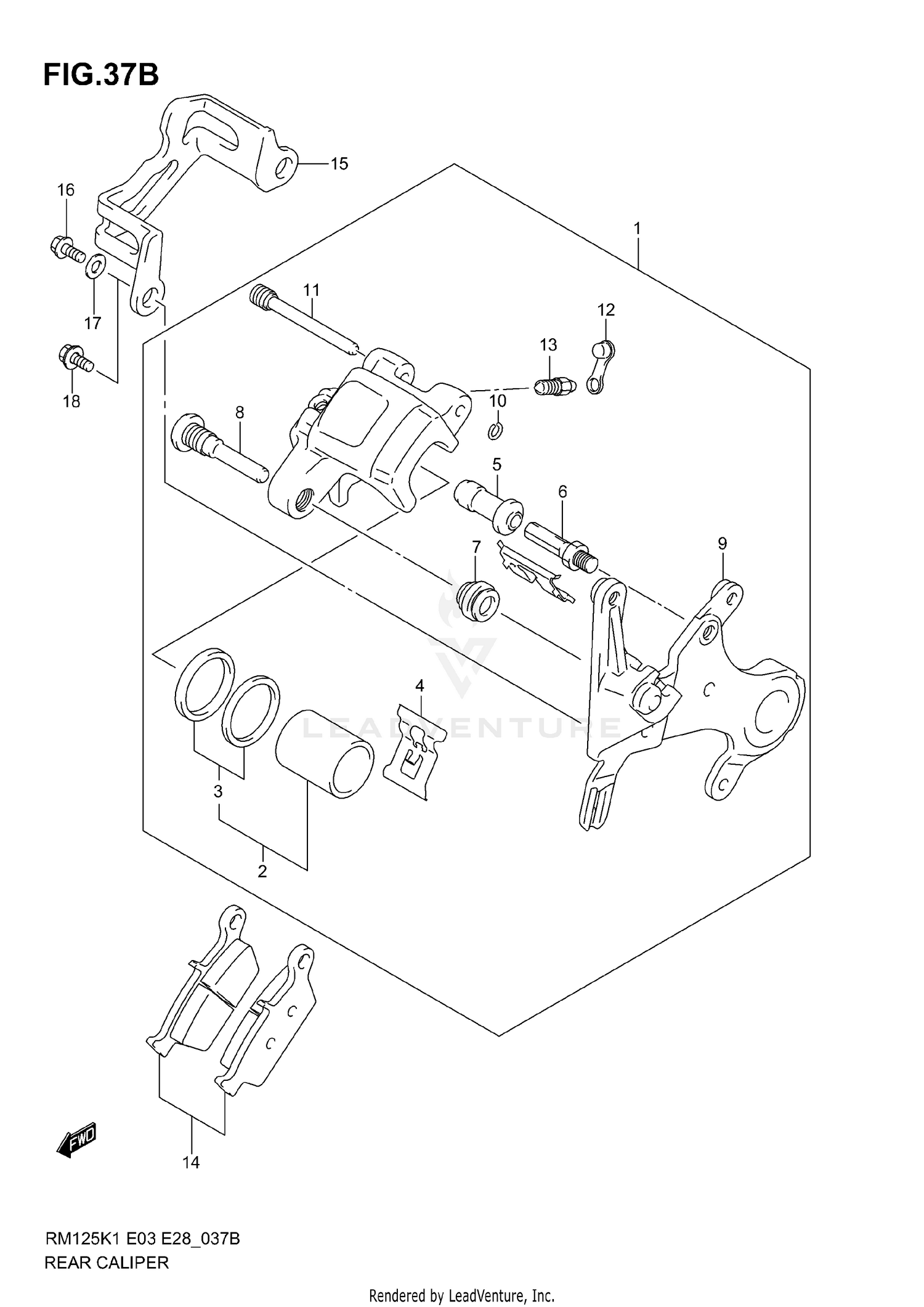

2001 Suzuki RM 125 REAR CALIPER (MODEL K5/K6) OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 CALIPER ASSY, REAR 69100-37F40-999	$379.23
Available: Ships in 7-12 days. Add to View Price
#2 PISTON SET 69100-43810	$38.13
Available: Ships in 7-12 days. Add to View Price
#3 SEAL SET, PISTON 69100-36810	$9.39
Available: Ships in 7-12 days. Add to View Price
#4 SPRING 59315-36E00	$10.05
Available: Ships in 7-12 days. Add to View Price
#5 BOOT 59386-13A00	$8.22
Available: Ships in 7-12 days. Add to View Price
#6 PIN 59382-27C30	$9.33
Available: Ships in 7-12 days. Add to View Price
#7 BOOT 59303-14500	$5.71
Available: Ships in 7-12 days. Add to View Price
#8 PIN 59305-36E00	$18.83
In Stock: Ready to ship. Add to View Price
#9 BRACKET 69350-37F20	$142.91
Available: Ships in 7-12 days. Add to View Price
#10 RING, STOPPER 59145-37F00	$4.89
Available: Ships in 7-12 days. Add to View Price
#11 PIN 69345-37F00	$18.22
Available: Ships in 7-12 days. Add to View Price
#12 BLEEDER 59121-01A00	$9.03
Available: Ships in 7-12 days. Add to View Price
#13 CAP 59122-01A00	$4.49
Available: Ships in 7-12 days. Add to View Price
#14 PAD SET 69100-37820	$72.41
Available: Ships in 7-12 days. Add to View Price
#14 PAD SET 69100-37830	$69.90
Available: Ships in 7-12 days. Add to View Price
#15 GUARD, REAR CALIPER 69725-37F00 Superseded by 69725-37F01	$22.56
Available: Ships in 7-12 days. Add to View Price
#16 BOLT 09103-06256	$2.07
Available: Ships in 7-12 days. Add to View Price
#17 WASHER 08322-01067	$1.81
In Stock: Ready to ship. Add to View Price
#18 BOLT 09116-06197	$2.55
Available: Ships in 7-12 days. Add to View Price
