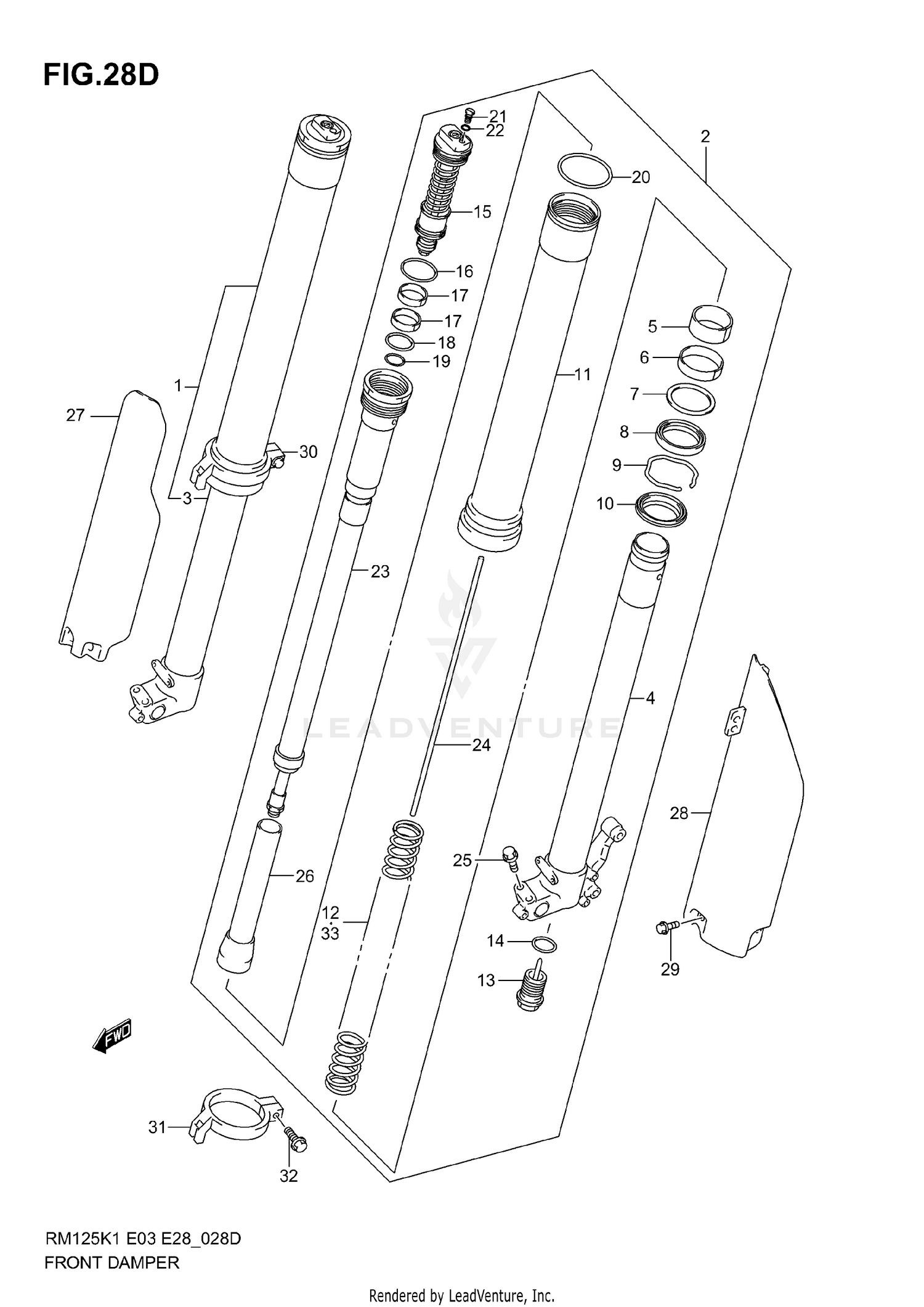

2001 Suzuki RM 125 FRONT DAMPER (MODEL K5) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DAMPER ASSY, FRONT FORK RH
51103-36FB0
|
$1,796.00 | ||
|
Unavailable |
|||
|
#2
DAMPER ASSY, FRONT FORK LH
51104-36FB0
|
$1,796.00 | ||
|
Unavailable |
|||
|
#3
TUBE, INNER RH
51110-37F80
|
$496.44 | ||
|
Unavailable |
|||
|
#4
TUBE, INNER LH
51120-37F80
|
$496.44 | ||
|
Unavailable |
|||
|
#5
BUSH, GUIDE
51121-36F00
|
$24.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
BUSH, GUIDE
51167-36F00
|
$20.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
SPACER, SEAL
51158-36F00
|
$8.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
SEAL, OIL
51153-37F80
|
$30.51 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
RING, OIL SEAL STOPPER
51156-27C40
|
$5.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
SEAL, DUST
51173-37F80
|
$27.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
TUBE, OUTER
51130-37F70
|
$714.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
SPRING, FRONT (K=0.42)
51171-37FD0
|
$153.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
BOLT, CENTER
51170-37F80
|
$195.64 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
O RING
51177-36E20
|
$4.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
BOLT, FORK
51351-36FB0
|
$223.85 | ||
|
Unavailable |
|||
|
#16
O RING
51117-37F80
|
$6.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
BUSH, FORK BOLT SLIDE
51123-28E30
|
$13.33 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
O RING
51174-36E40
|
$4.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
O RING
51175-37F80
|
$5.11 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
O RING
51118-37F80
|
$6.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
BOLT, PLUG
51357-36F20
|
$12.59 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
O RING
51358-28E30
|
$3.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
ROD, DAMPER
51190-37F80
|
$691.47 | ||
|
Unavailable |
|||
|
#24
ROD, PUSH
51191-36F40
|
$20.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
BOLT
51328-37F80
|
$7.48 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
COLLAR, SPRING
51198-37F80
|
$66.76 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
PROTECTOR, RH
51501-37F60
Superseded by 51501-37F61
|
$119.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
PROTECTOR, LH
51511-37F60
Superseded by 51511-37F61
|
$119.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
BOLT
09103-06256
|
$2.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
GUIDE, PROTECTOR RH
51220-36E61
|
$51.61 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
GUIDE, PROTECTOR LH
51210-36E61
|
$51.61 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
BOLT
01547-06207
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#33
SPRING, FRONT (HARD K=0.44)
51171-37FC0
|
$97.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#33
SPRING, FRONT (SOFT K=0.40)
51171-36F60
|
$112.39 | ||
|
Unavailable |
|||
