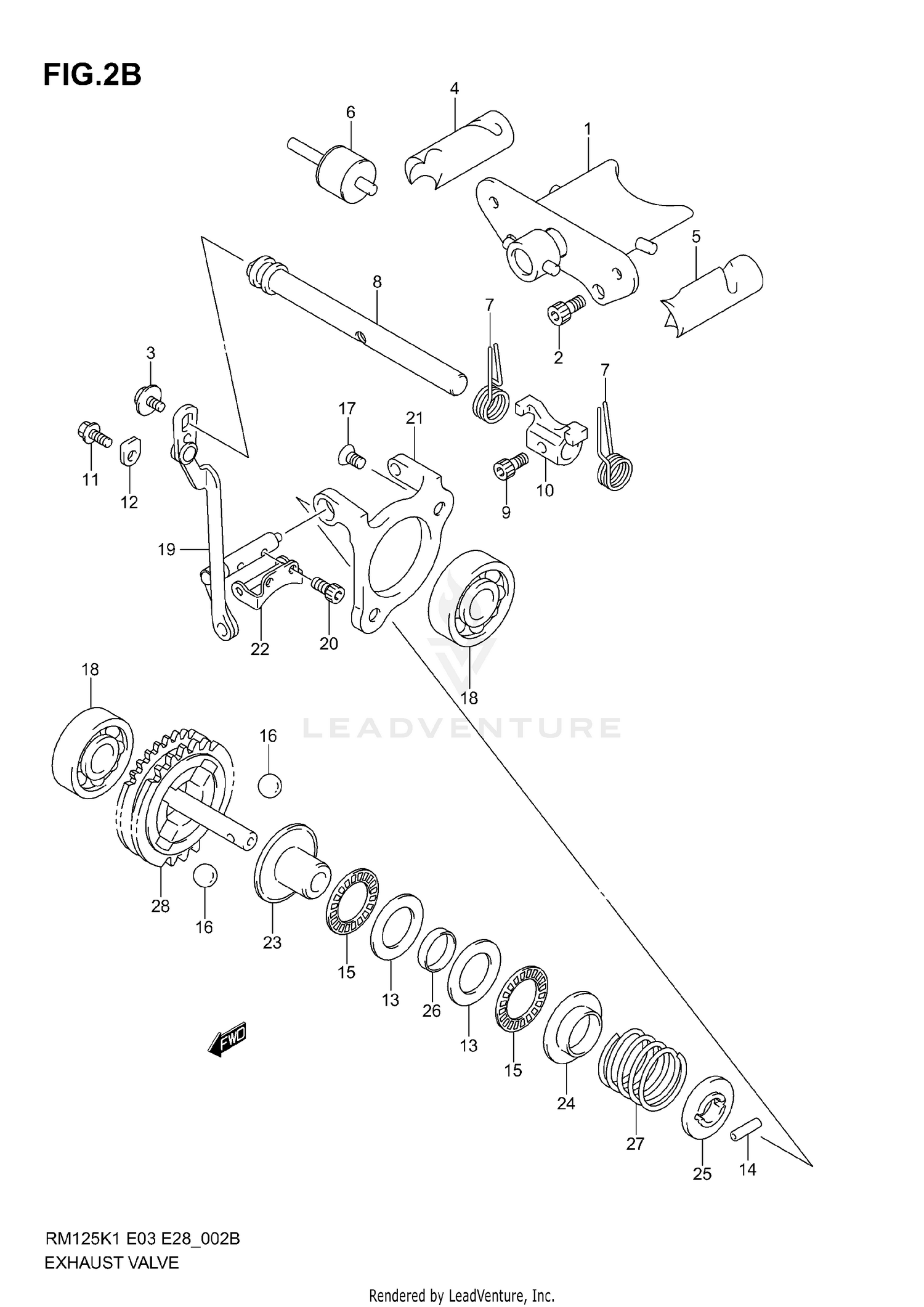

2001 Suzuki RM 125 EXHAUST VALVE (MODEL K4/K5/K6) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
VALVE ASSY, EXHAUST MAIN
11250-36F30
|
$176.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#1
VALVE ASSY, EXHAUST MAIN
11250-36F40
|
$227.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
BOLT
07130-05123
Superseded by 07130-0512B
|
$2.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
BOLT, EXHAUST VALVE
09103-05022
|
$1.81 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
VALVE, EXHAUST SIDE, R
11255-36F30
|
$51.96 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
VALVE, EXHAUST SIDE, R
11255-36F40
|
$52.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
VALVE, EXHAUST SIDE, L
11256-36F30
|
$51.96 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
VALVE, EXHAUST SIDE, L
11256-36F40
|
$52.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
SHAFT, EXHAUST SIDE VALVE
11260-36F30
|
$17.64 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
SPRING, EXHAUST VALVE
11257-36F11
|
$6.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
SHAFT, EXHAUST VALVE
11259-36F30
|
$70.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
BOLT, EXHAUST VALVE SHAFT
09106-04003
|
$1.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
ARM, EXHAUST VALVE SHAFT
11264-36F30
|
$65.27 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
BOLT, EXHAUST VALVE SHAFT STOP
09103-06256
|
$2.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
RETAINER, EXHAUST VALVE SHAFT STOP
24741-21A00
|
$2.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
WASHER, GOVERNOR THRUST
09181-15223
|
$2.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
PIN, GOVERNOR SHAFT
09261-03017
|
$2.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
BEARING, GOVERNOR THRUST
09263-15003
|
$8.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
BALL, GOVERNOR
06111-12004
|
$1.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
SCREW, ACTUATOR BASE
09120-05003
|
$1.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
BEARING, GOVERNOR SHAFT
09262-08005
|
$12.64 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
ACTUATOR, EXHAUST
12689-36F30
|
$50.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
BOLT, ACTUATOR ARM
09106-04003
|
$1.75 | ||
|
Unavailable |
|||
|
#21
BASE, ACTUATOR
12681-03B00
|
$63.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
ARM, ACTUATOR
12682-36F21
|
$8.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
GOVERNOR, DRIVEN
12672-36F10
|
$33.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
STOPPER, GOVERNOR SPRING
12674-36F10
|
$24.76 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
STOPPER, GOVERNOR SPRING
12675-36F11
|
$18.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
SPACER, GOVERNOR
12676-36F10
|
$15.50 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
SPRING, GOVERNOR
12677-36F30
|
$5.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
SPRING, GOVERNOR
12677-36F40
|
$5.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
GOVERNOR SET, EXHAUST
12670-36820
|
$67.19 | ||
|
Unavailable |
|||
|
#28
GOVERNOR SET, EXHAUST
12670-36830
|
$90.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
