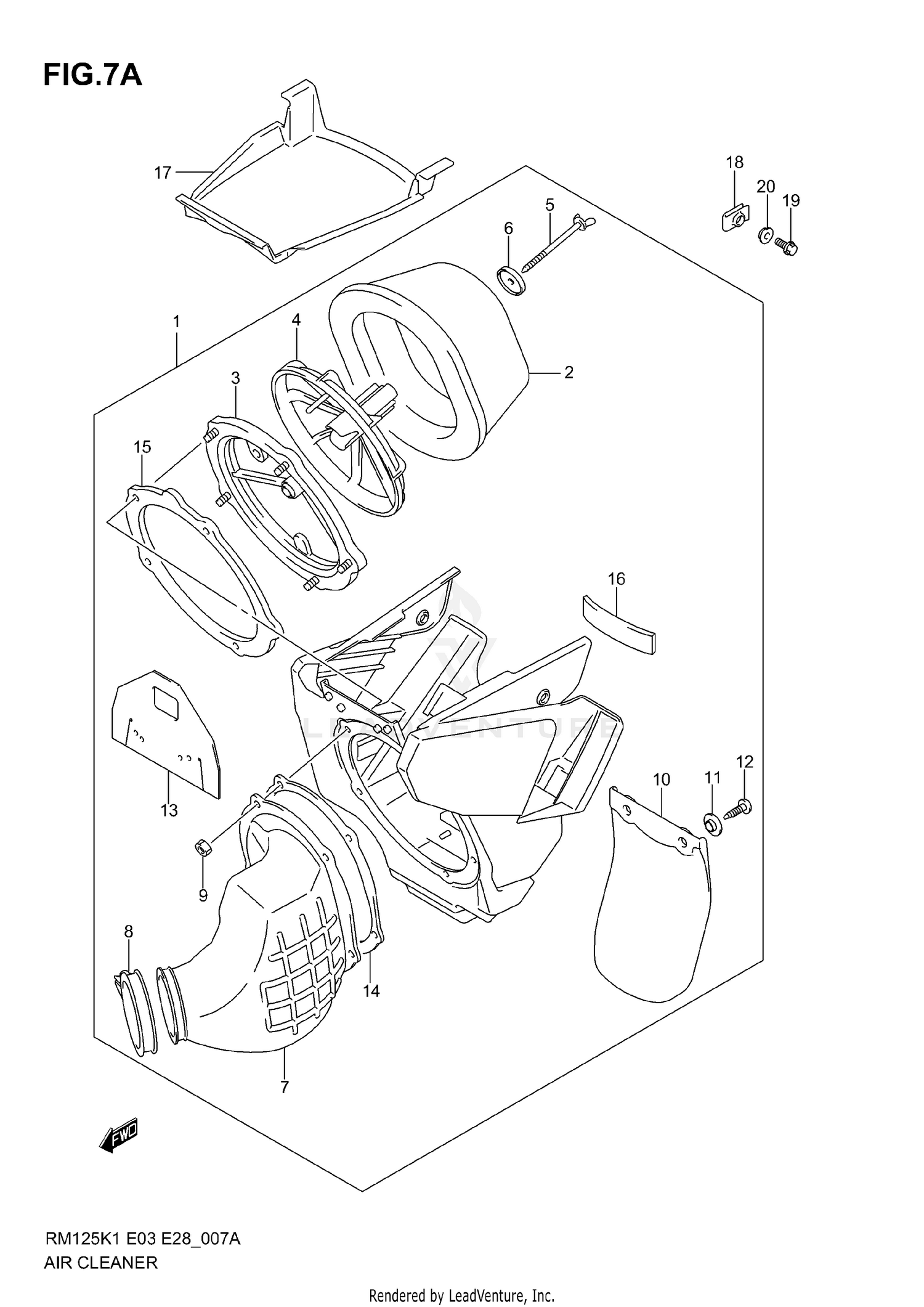

2001 Suzuki RM 125 AIR CLEANER (MODEL K4/K5/K6) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLEANER ASSY, AIR
13700-36F30
Superseded by 13700-36F31
|
$378.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#1
CLEANER ASSY, AIR
13700-36F31
|
$378.15 | ||
|
Unavailable |
|||
|
#1
CLEANER ASSY, AIR
13700-36F50
|
$356.48 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
FILTER ASSY
13780-37F20
|
$73.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
BASE, FILTER
13790-37F20
|
$19.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
HOLDER, FILTER
13791-37F20
|
$15.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
BOLT, WING
13831-37F20
|
$8.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
WASHER
13792-13A01
|
$4.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
TUBE, OUTLET
13881-36F30
|
$88.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
CLAMP
09402-70902
|
$5.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
NUT
08310-00057
|
$1.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
.NUT
08319-21053
Superseded by 08319-2105A
|
$2.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
MUD GUARD
13738-36E01
|
$22.67 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
COLLAR, MUD GUARD
13838-02B00
|
$3.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
SCREW
13831-35F00
|
$2.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
COVER, AIR CLEANER
13749-37F30
|
$23.87 | ||
|
Unavailable |
|||
|
#14
PLATE
13795-37F20
|
$15.50 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
GASKET
13796-37F20
|
$12.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
CUSHION, AIR CLEANER
13736-37F30
|
$11.44 | ||
|
Unavailable |
|||
|
#16
CUSHION, AIR CLEANER
13736-37F50
|
$16.64 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
CAP, AIR CLEANER
13741-36F30
|
$18.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
NUT
71812-82010
Superseded by 09148-06021
|
$3.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
BOLT, AIR CLEANER
09103-06256
|
$2.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
WASHER, METER CABLE NO.1
09169-06054
Superseded by 09169-06053
|
$1.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
