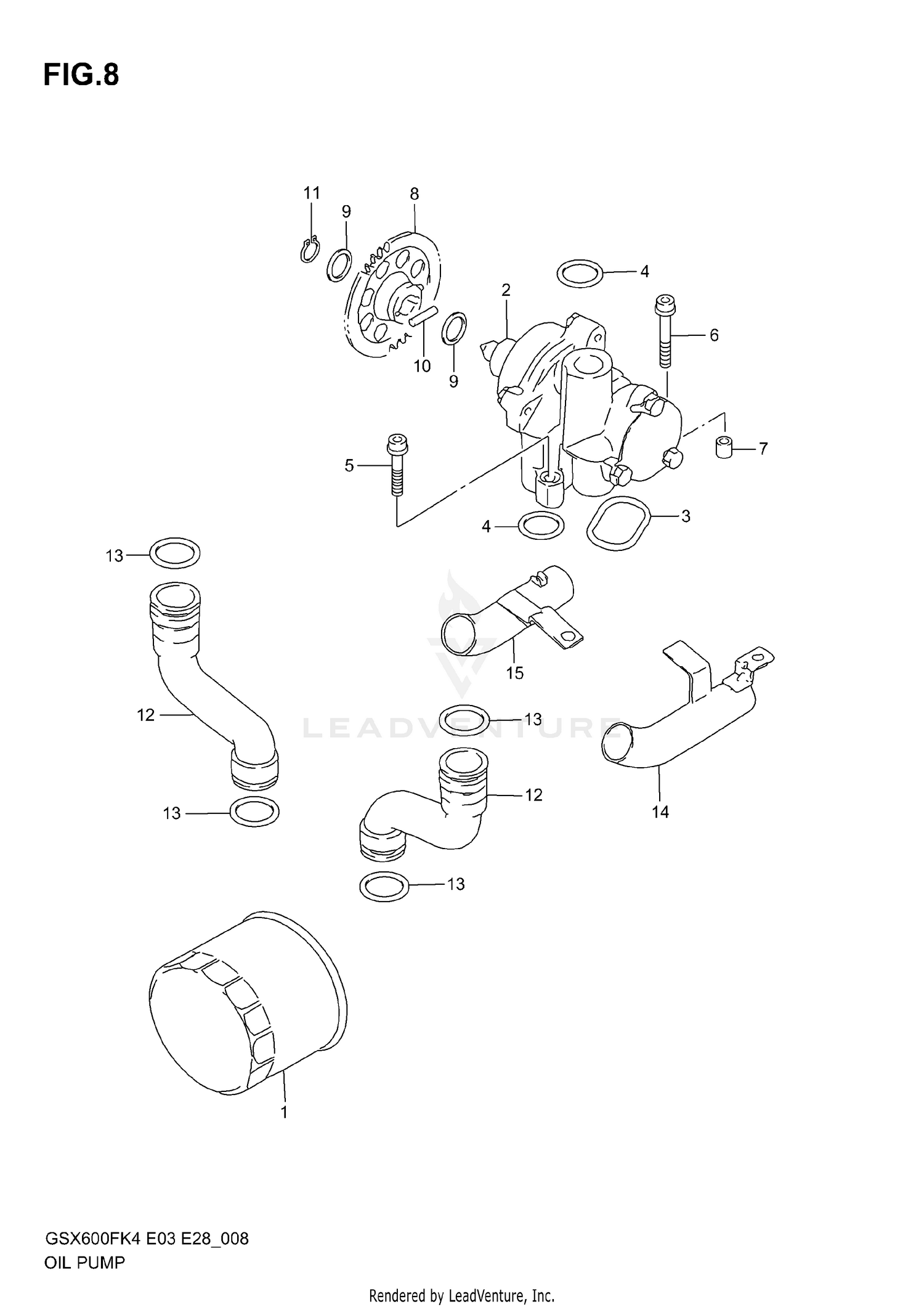

2006 Suzuki KATANA 600 OIL PUMP OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FILTER, ENGINE OIL
16510-03G00-X07
Superseded by 16510-07J00
|
$14.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
PUMP ASSY, ENGINE OIL
16400-06B31
|
$317.44 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
O RING, OIL PUMP
16491-27A01
|
$5.31 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
O RING (D:3.2,ID:17.8)
09280-18009
|
$5.61 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
BOLT (6X30)
09106-06089
|
$3.27 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
BOLT (6X35)
09106-06088
|
$3.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
PIN (8.5X18X2.3)
04211-09149
|
$1.56 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
GEAR, OIL PUMP DRIVEN
16332-19C00
|
$62.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
WASHER
08221-12205
|
$1.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
PIN
09261-05006
|
$1.37 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
CIRCLIP
08331-31126
Superseded by 08331-3112A
|
$1.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
PIPE, OUTLET
16481-17D00
|
$43.43 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
O RING (D:3.7,ID:21.7)
09280-22016
|
$5.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
PIPE, OIL UNDER, LH
16530-27A02
|
$14.58 | ||
|
Unavailable |
|||
|
#15
PIPE, OIL UNDER, RH
16540-27A02
|
$21.44 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
