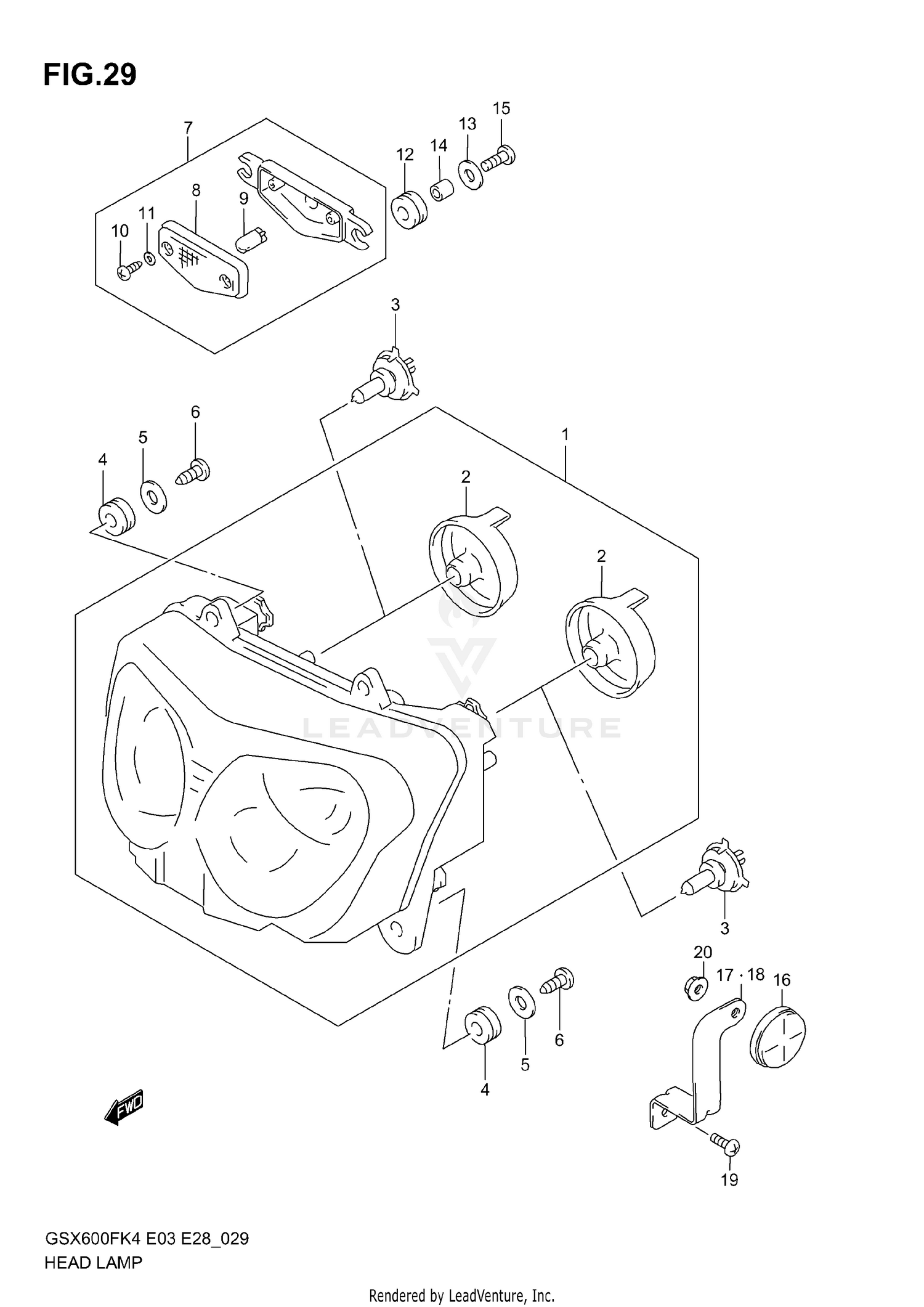

2006 Suzuki KATANA 600 HEADLAMP OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLAMP ASSY
35100-08F30-999
|
$602.42 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, SOCKET
35125-74F00
|
$15.52 | ||
|
Available to order. Add to View Price |
|||
|
#3
.BULB (12V60/55W,H4)
09471-12185
Superseded by 09471-12060
|
$14.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
CUSHION, HEADLAMP
35137-33E00
|
$3.86 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER (5.5X18X1)
09160-05045
|
$1.93 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
03512-05163
Superseded by 03511-0516A
|
$1.86 | ||
|
Available to order. Add to View Price |
|||
|
#7
LAMP ASSY, FRONT POSITION
36110-08F00
|
$65.02 | ||
|
Available to order. Add to View Price |
|||
|
#8
LENS
36112-08F00
|
$10.42 | ||
|
Available to order. Add to View Price |
|||
|
#9
BULB (12V5W)
09471-12081
Superseded by 09471-12216
|
$5.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
SCREW
03211-04123
Superseded by 03211-0412A
|
$1.93 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER
35128-37B00
|
$2.85 | ||
|
Unavailable |
|||
|
#12
CUSHION (8X18X10)
09320-08001
Superseded by 09320-08527
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, FRONT POSITION
09160-05045
|
$1.93 | ||
|
Unavailable |
|||
|
#14
SPACER, FRONT
09180-05048
|
$2.04 | ||
|
Available to order. Add to View Price |
|||
|
#15
.SCREW
02142-05203
Superseded by 02142-0520B
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#16
REFLEX REFLECTOR ASSY
35950-14A00
|
$17.89 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET,FR SIDE
35956-08F01
Superseded by 35956-08F0V
|
$6.63 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRACKET,FR SIDE
35957-08F01
Superseded by 35957-08F0V
|
$8.58 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW
02142-05103
Superseded by 02142-0510B
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
08316-10053
Superseded by 08316-1005A
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
