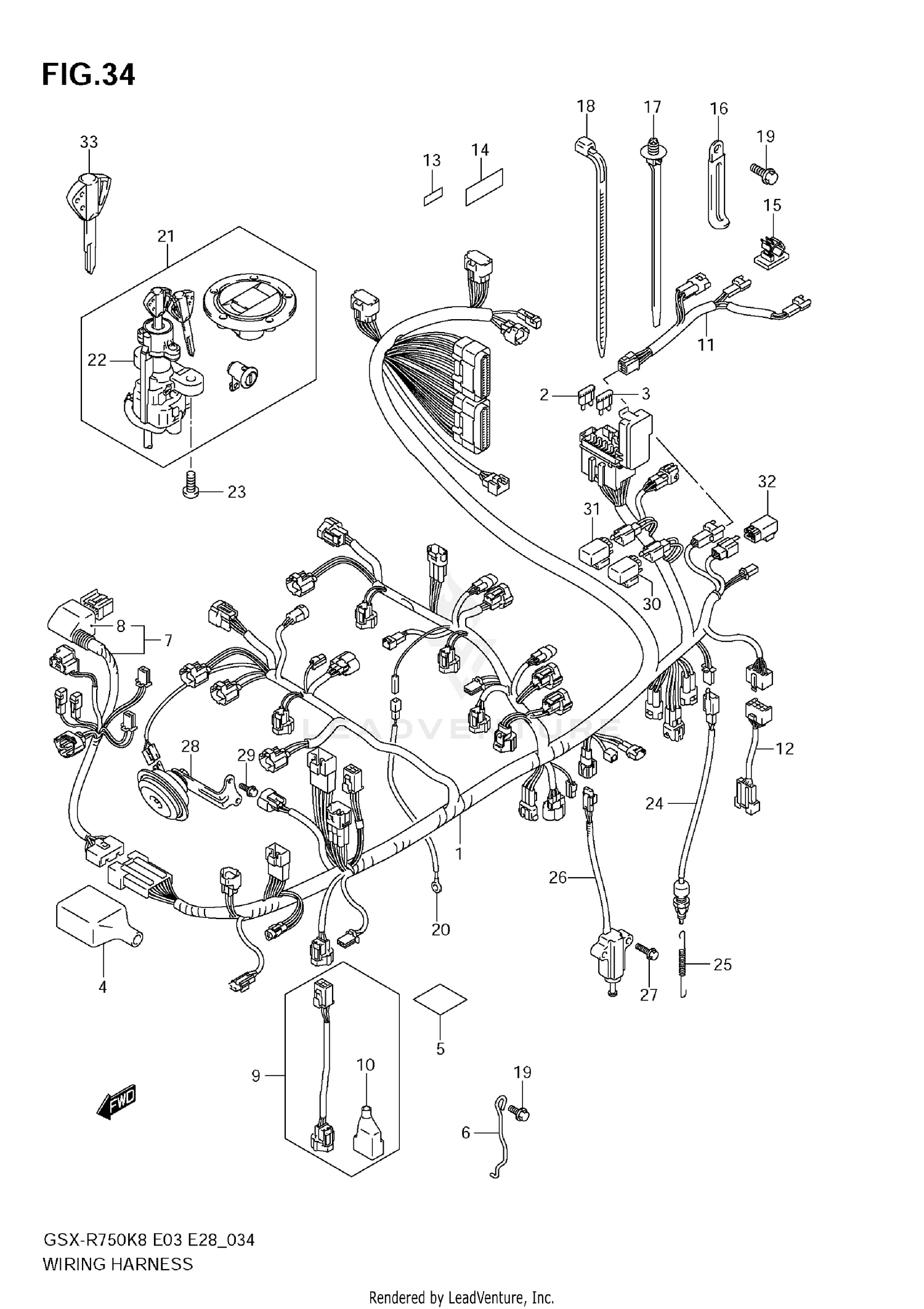

2009 Suzuki GSX-R 750 WIRING HARNESS OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS,WIRING
36610-37H30
Superseded by 36610-37H31
|
$739.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
FUSE (10A)
09481-10501
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
FUSE (15A)
09481-15501
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
BOOT
36618-18G00
|
$9.12 | ||
|
Unavailable |
|||
|
#5
PROTECTOR, HARNESS (30X80X1)
33652-29F00
|
$3.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
GUIDE, WIRING HARNESS
36619-37H00
|
$5.76 | ||
|
Unavailable |
|||
|
#7
HARNESS,WIRING
36620-37H00
Superseded by 36620-37H01
|
$171.51 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
COVER, SPEEDOMETER
36618-41G00
|
$6.75 | ||
|
Unavailable |
|||
|
#9
WIRE, ACTUATOR LEAD
36854-37H00
|
$47.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
BOOT
13311-01H10
|
$12.13 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
WIRE,GRIP HEATE
36855-37H00
Superseded by 36855-37H01
|
$43.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
WIRE, RELAY LEAD
36857-37H00
|
$69.74 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
PROTECTOR,WIRING HARNESS (10X
36920-37H00
|
$2.80 | ||
|
Unavailable |
|||
|
#14
PROTECTOR (20X50X2.0)
36920-45G00
|
$2.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
CLAMP
09403-06310
|
$1.85 | ||
|
Unavailable |
|||
|
#16
CLAMP (L:45)
09404-06429
|
$1.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
CLAMP (L:170)
09407-17403
|
$5.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
CLAMP (L:125)
09407-14403
|
$2.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
BOLT
01550-0612A
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
WIRE,OIL PRESSU
36851-01H00
Superseded by 36851-01H01
|
$10.74 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
LOCK SET
37101-40820
Superseded by 37101-40822
|
$443.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
LOCK SET
37101-40840
Superseded by 37101-40842
|
$476.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
LOCK ASSY, STEERING
37100-41G10
Superseded by 37100-41G11
|
$236.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
SCREW, STEERING LOCK
09139-08016
|
$3.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
SWITCH ASSY, STOP LAMP
37740-45D00
|
$15.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
SPRING
09443-06087
|
$3.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
SWITCH ASSY,SID
37840-35F10
Superseded by 37840-35F11
|
$72.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
BOLT
01550-0616A
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
HORN ASSY
38500-37H00
|
$76.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
BOLT
01550-0616A
|
$1.94 | ||
|
Unavailable |
|||
|
#30
RELAY ASSY, FAN MOTOR
38740-24X50
|
$46.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
RELAY ASSY, FUEL PUMP
38740-24X50
|
$46.80 | ||
|
Unavailable |
|||
|
#32
RELAY ASSY, HEAD LAMP
38740-39G00
|
$55.44 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#33
KEY,BLANK (IMMOBI)
37146-41G00
|
$44.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
