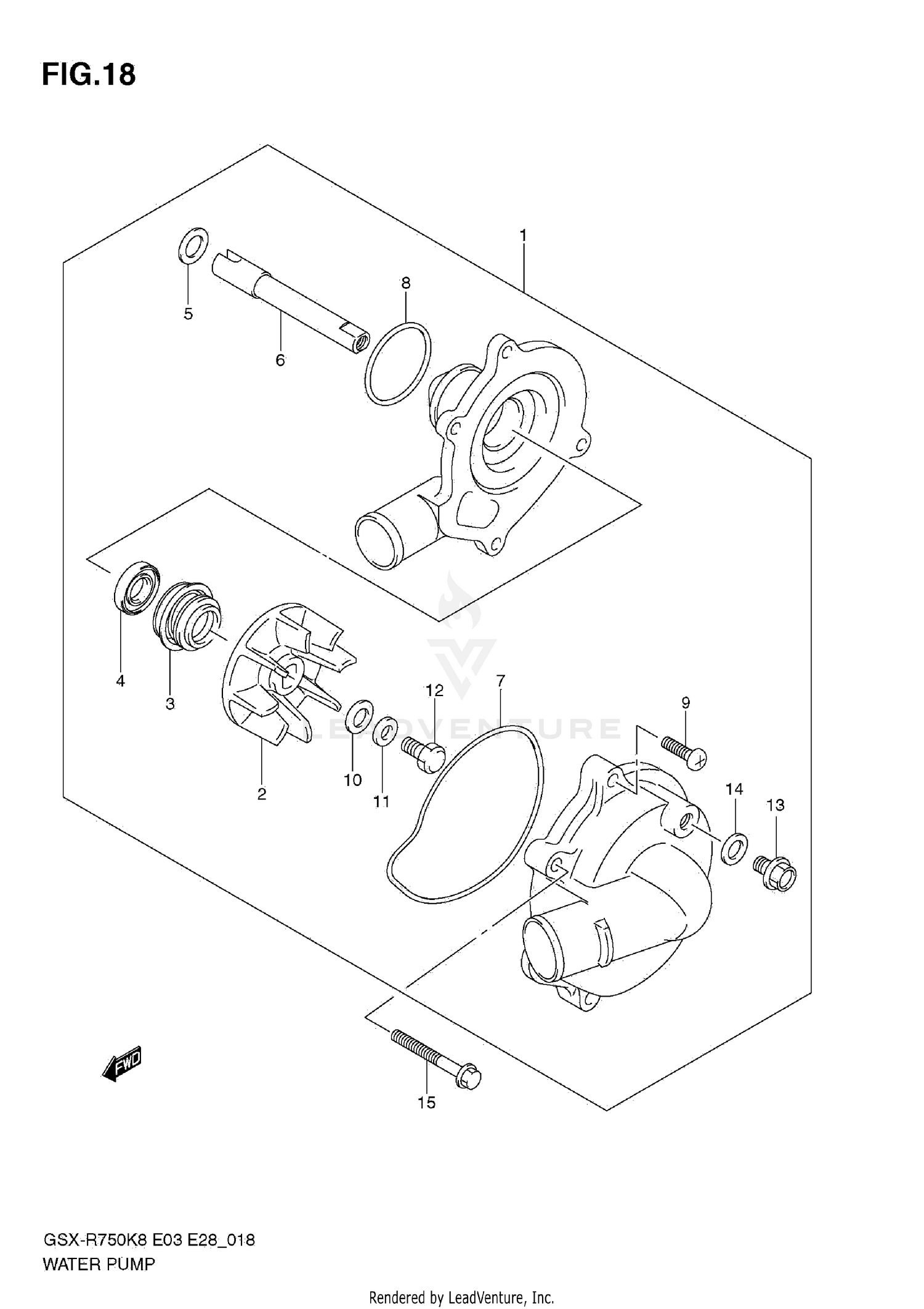

2009 Suzuki GSX-R 750 WATER PUMP OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY,WATER
17400-01H10
Superseded by 17400-01H11
|
$297.50 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
IMPELLER
17491-01H00
|
$32.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
.SEAL,WATER PUMP SHAFT MECH
17470-02F10
Superseded by 17470-02F11
|
$30.27 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
SEAL, OIL
17461-01H00
|
$18.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
WASHER
17432-07G00
|
$2.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
SHAFT
17511-01H00
|
$43.11 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
.O-RING
17418-33400
Superseded by 17418-33401
|
$4.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
O RING
17435-33400
|
$15.82 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
SCREW
02112-0616A
|
$1.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
GASKET
09168-06016
Superseded by 09168-06025
|
$2.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
WASHER
09164-06006
|
$2.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
BOLT (6X13)
09100-06099
|
$1.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
BOLT, DRAIN
17415-20920
|
$7.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
WASHER
09168-08016
|
$1.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
BOLT
01547-0635A
|
$2.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
