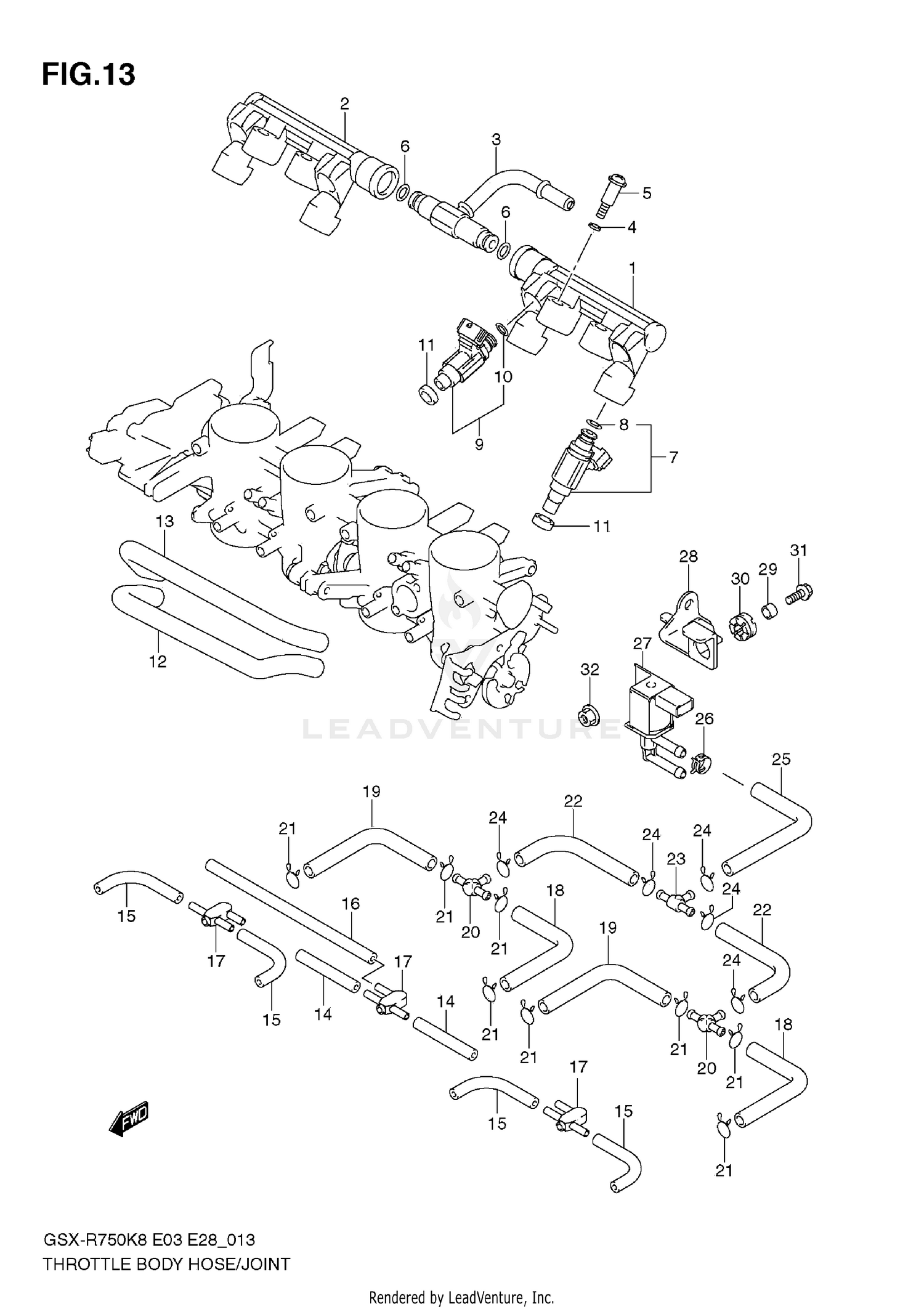

2009 Suzuki GSX-R 750 THROTTLE BODY HOSE/JOINT OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DELIVERY PIPE ASSY
13473-37H00
|
$64.22 | ||
|
Unavailable |
|||
|
#2
DELIVERY PIPE ASSY
13473-37H10
|
$64.22 | ||
|
Unavailable |
|||
|
#3
NIPPLE ASSY
13473-29G00
|
$84.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
.PACKING
13602-29G00
Superseded by 13602-29G01
|
$2.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
SCREW
13601-29G00
|
$3.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
O RING
15721-29G00
Superseded by 15721-08J00
|
$9.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
INJECTOR ASSY
15710-37H00
|
$292.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
O RING
15717-16G00
|
$10.31 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
INJECTOR ASSY
15710-37H10
|
$275.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
O RING
15717-16G00
|
$10.31 | ||
|
Unavailable |
|||
|
#11
SEAL
15722-29G00
|
$11.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
HOSE
13698-37H00
|
$41.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
HOSE
13698-37H10
|
$41.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
HOSE
13683-37H00
|
$10.86 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
HOSE
13683-37H10
|
$6.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
HOSE (L:425)
13683-04F50
Superseded by 13683-10F61
|
$14.98 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
NIPPLE
13471-18H00
|
$9.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
HOSE
13683-37H20
|
$27.74 | ||
|
Unavailable |
|||
|
#19
HOSE
13683-37H30
|
$27.74 | ||
|
Unavailable |
|||
|
#20
NIPPLE
13685-29G00
|
$9.92 | ||
|
Unavailable |
|||
|
#21
CLIP
13671-29G00
|
$3.24 | ||
|
Unavailable |
|||
|
#22
HOSE
13680-37H00
|
$30.72 | ||
|
Unavailable |
|||
|
#23
NIPPLE
13685-48B00
|
$12.58 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
CLIP
13671-06A10
|
$2.68 | ||
|
Unavailable |
|||
|
#25
HOSE
13680-37H10
|
$32.39 | ||
|
Unavailable |
|||
|
#26
CLIP
09401-10411
|
$2.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
VALVE, CANISTER PURGE
18117-82K00
|
$107.85 | ||
|
Unavailable |
|||
|
#28
BRACKET
13165-37H00
|
$11.35 | ||
|
Unavailable |
|||
|
#29
SPACER
09180-06310
|
$1.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
CUSHION
09320-10055
|
$4.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
BOLT
09116-06212
|
$2.31 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
NUT
08316-1006A
|
$2.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
