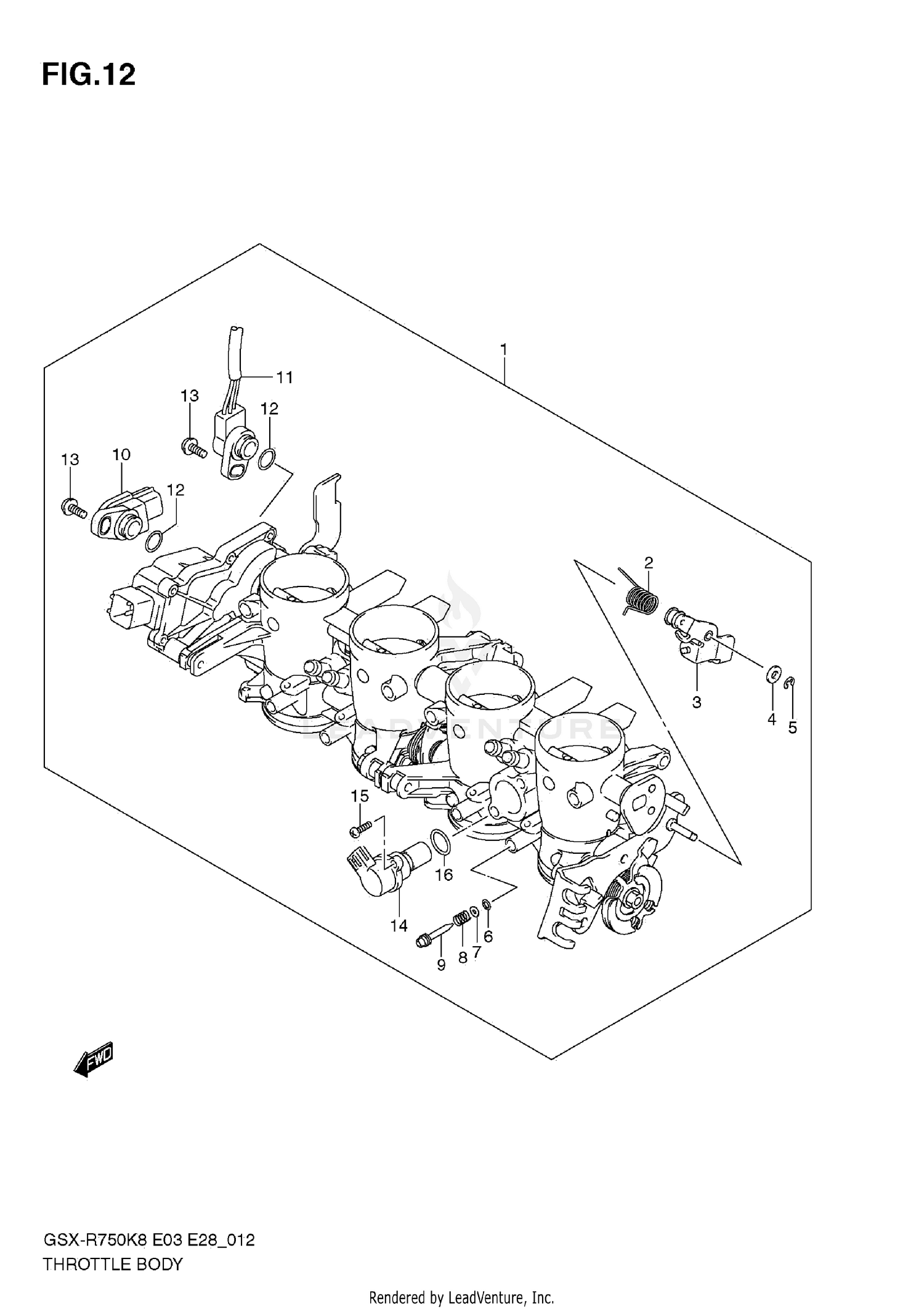

2009 Suzuki GSX-R 750 THROTTLE BODY OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 BODY ASSY,THROT 13406-38H00 Superseded by 13406-38H01	$1,583.34
Available: Ships in 7-12 days. Add to View Price
#1 BODY ASSY,THROT 13406-38H10 Superseded by 13406-38H11	$1,452.46
Available: Ships in 7-12 days. Add to View Price
#2 TORSION SPRING 13426-29G00	$5.30
Available: Ships in 7-12 days. Add to View Price
#3 LEVER ASSY 13420-37H00	$61.59
Available: Ships in 7-12 days. Add to View Price
#4 PACKING 13427-29G00	$3.66
Available: Ships in 7-12 days. Add to View Price
#5 E RING 13424-29G00	$3.59
Available: Ships in 7-12 days. Add to View Price
#6 .O RING 13295-29900 Superseded by 13295-29901	$4.49
Available: Ships in 7-12 days. Add to View Price
#7 WASHER 13606-47A00	$2.88
Available: Ships in 7-12 days. Add to View Price
#8 SPRING, THROTTLE SCREW 13268-48700	$4.49
Available: Ships in 7-12 days. Add to View Price
#9 SCREW 13269-33E00	$11.43
Available: Ships in 7-12 days. Add to View Price
#10 SENSOR ASSY 13580-29G00	$123.32
Available: Ships in 7-12 days. Add to View Price
#11 SENSOR ASSY, THROTTLE SUB 13580-40F30 Superseded by 13580-40F31	$219.59
Available: Ships in 7-12 days. Add to View Price
#12 .O RING 13575-29G00 Superseded by 13575-29G01	$3.24
Available: Ships in 7-12 days. Add to View Price
#13 SCREW 13605-02F00	$3.81
Available: Ships in 7-12 days. Add to View Price
#14 VALVE,ISC 18117-37H00 Superseded by 18117-37H01	$343.40
Available: Ships in 7-12 days. Add to View Price
#15 SCREW 13605-37H00	$3.66
Available: Ships in 7-12 days. Add to View Price
#16 O RING 13679-37H00	$6.36
Available: Ships in 7-12 days. Add to View Price
