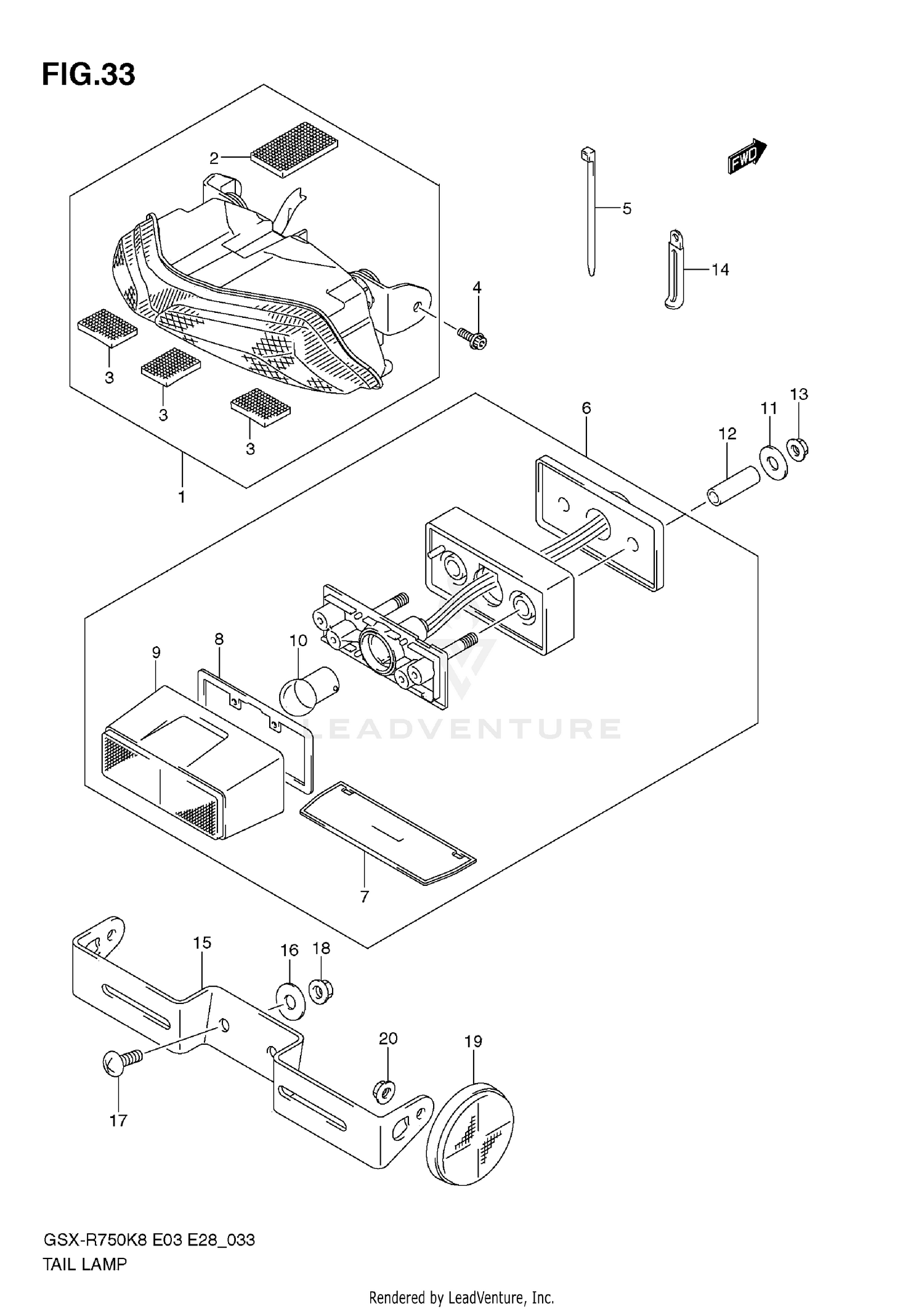

2009 Suzuki GSX-R 750 TAIL LAMP OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY, REAR COMBINATION
35710-37H30
|
$268.37 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
FASTENER, REAR COMB
44572-13G10
|
$13.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
FASTENER, REAR COMB
47912-37H00
|
$10.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
SCREW (5X12)
09106-05031
|
$2.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
CLAMP (L:145)
09407-14407
|
$3.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
LAMP ASSY, LICENSE
35910-41G30
Superseded by 35910-41G32
|
$76.06 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
LENS, LICENSE
35912-41G00
Superseded by 35912-41G01
|
$11.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
GASKET
35913-41G00
|
$9.96 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
COVER
35917-41G00
|
$30.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
BULB (12V5W)
09471-12140
Superseded by 09471-12058
|
$1.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
WASHER (6.5X20X1.2)
09160-06077
|
$1.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
SPACER (6.5X9X33.3)
09180-06278
|
$3.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
NUT
08316-1006A
|
$2.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
CLAMP (L:45)
09404-06429
|
$1.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
BRACKET, LICENSE PLATE
35927-41G30
|
$13.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
WASHER (6.5X20X1.2)
09160-06077
|
$1.88 | ||
|
Unavailable |
|||
|
#17
SCREW, BRK
02142-0616A
|
$1.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
NUT, BRK
08316-1006A
|
$2.15 | ||
|
Unavailable |
|||
|
#19
REFLECTOR ASSY, REAR SIDE
35970-14A20
|
$15.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
NUT, REAR SIDE RR
08316-1005A
|
$2.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
