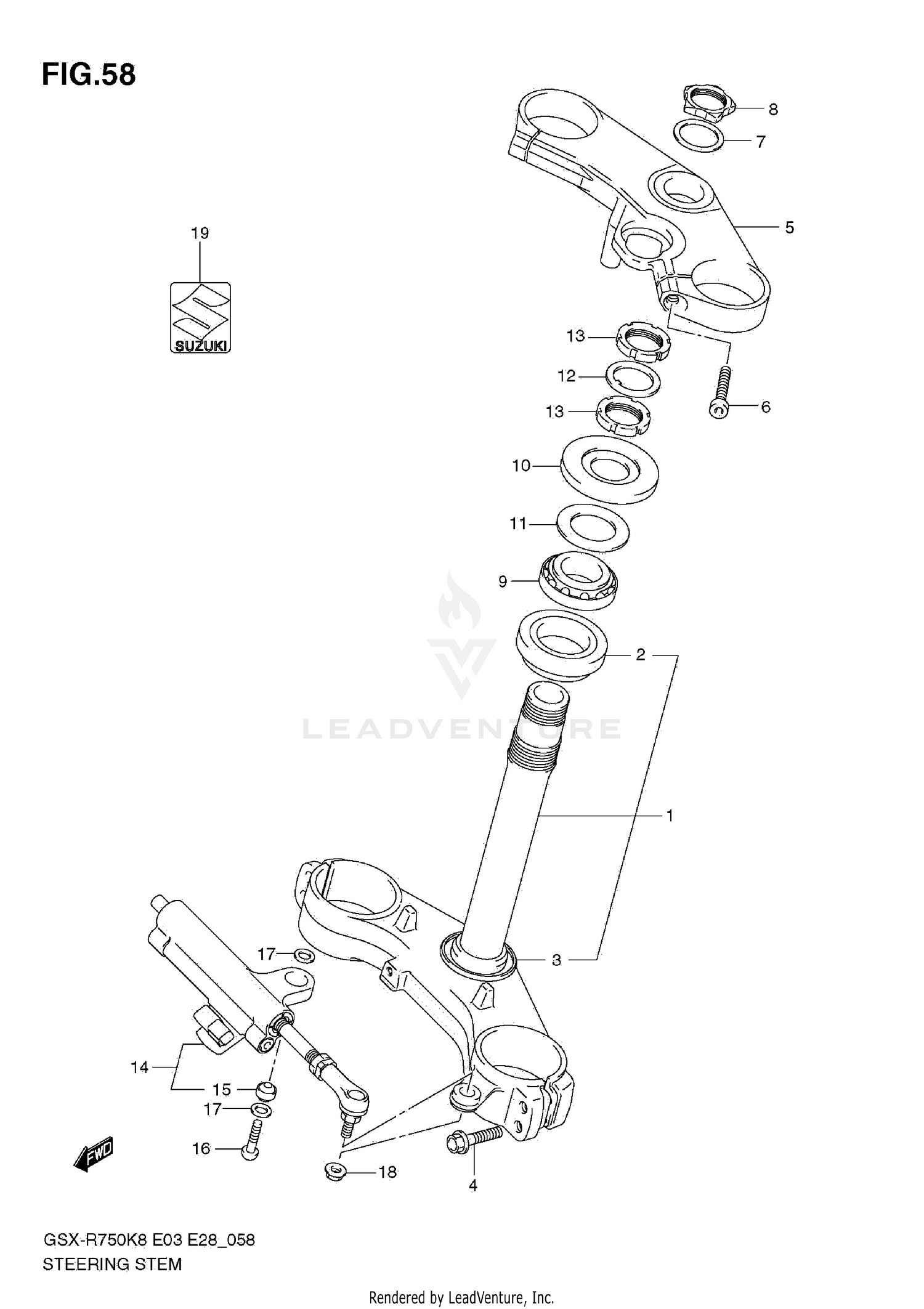

2009 Suzuki GSX-R 750 STEERING STEM OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STEM,STEERING
51410-01H00
Superseded by 51410-01H10
|
$867.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
BEARING (30X55X17)
09267-30010
|
$47.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
SEAL, STEM LOWER
51644-12C00
|
$9.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
BOLT, HOLDER AXLE LH (8X40)
51328-27E30
|
$4.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
HEAD,STEERING STEM
51311-01H00
|
$370.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
BOLT
51147-01H00
|
$33.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
WASHER,STEM HEAD
51354-01H00
|
$7.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
NUT
51353-01H00
|
$37.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
BEARING (30X55X17)
09267-30010
|
$47.99 | ||
|
Unavailable |
|||
|
#10
SEAL, STEM UPPER DUST
51643-41G10
|
$8.98 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
SEAL, UPPER DUST
51644-12C00
|
$9.78 | ||
|
Unavailable |
|||
|
#12
WASHER, STEM
51641-33E00
|
$6.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
NUT, STEM
51631-33E00
|
$24.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
DAMPER ASSY,STEERING
51750-21H10
|
$1,398.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
BEARING (8X17.5X11)
09269-08003
|
$50.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
BOLT
09106-08130
|
$4.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
SEAL, DUST
64339-14101
|
$8.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
NUT
08319-3108A
|
$2.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
EMBLEM, "S"
68281-35F00
|
$17.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
