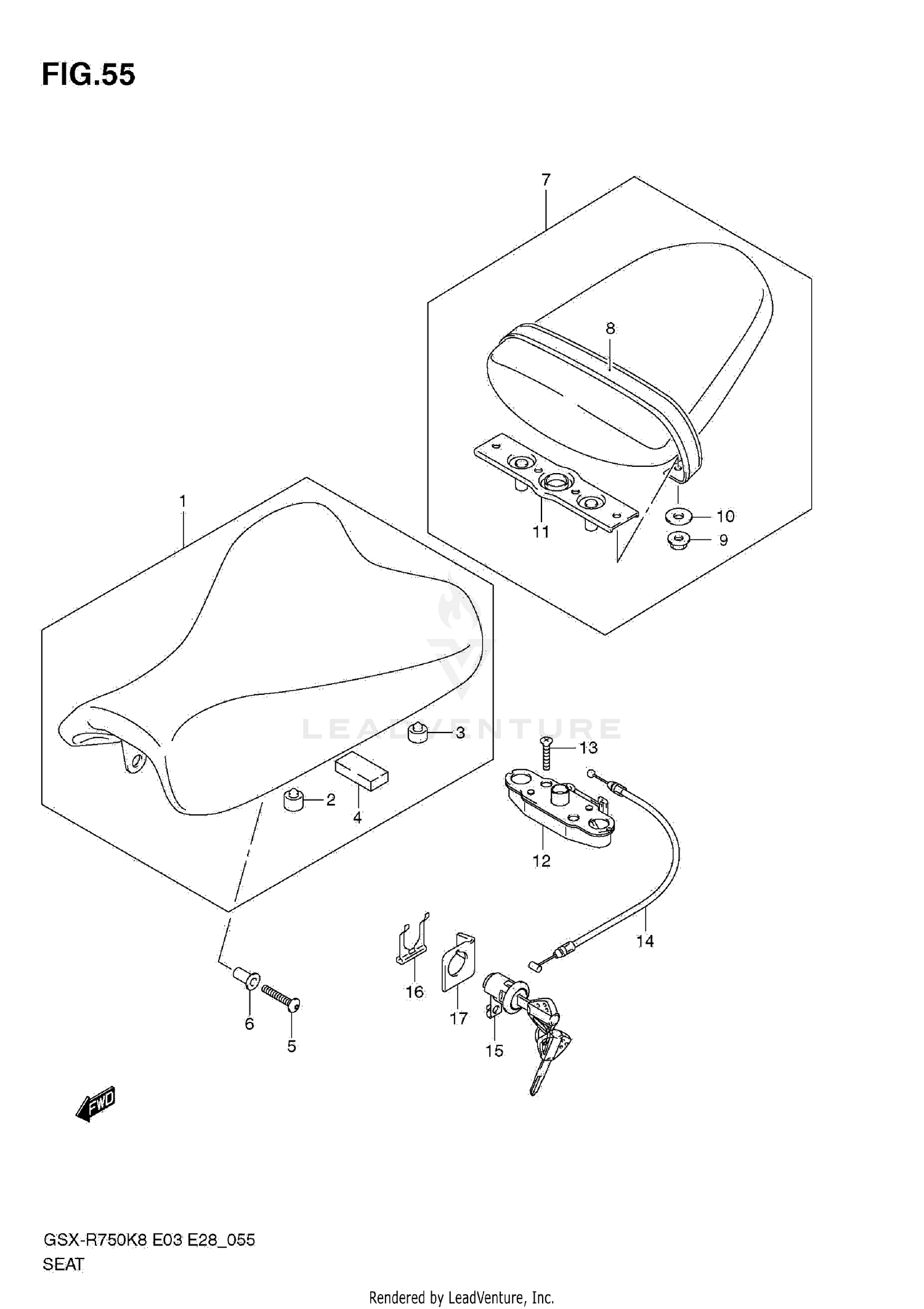

2009 Suzuki GSX-R 750 SEAT OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT ASSY
45100-37H00-6BY
Superseded by 45100-37H01-6BY
|
$119.42 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
CUSHION, FRONT
09321-10039
|
$5.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
CUSHION
09321-10011
|
$2.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
CUSHION
45149-37H00
|
$6.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
BOLT, SEAT
09139-06065-XC0
|
$2.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
WASHER, SEAT
09180-06320
|
$4.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
SEAT ASSY,PILLI
45300-37H00-6BY
Superseded by 45300-37H01-6BY
|
$215.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
BAND ASSY, SEAT
45180-37H00-6BY
|
$39.74 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
NUT
08319-3106A
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
WASHER
09160-06088
|
$1.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
STRIKER,SEAT LO
45290-18G00
Superseded by 45290-18G01
|
$35.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
BRACKET, SEAT SUPPORT
45220-20A01
Superseded by 45220-47H00
|
$121.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
SCREW, REAR
02122-0630A
|
$1.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
CABLE, SEAT LOCK
45280-13A01
|
$12.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
LOCK SET, SEAT
95700-14810
|
$111.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
PLATE, SEAT LOCK ASSY
45289-11F00
|
$6.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
GUIDE, SEAT LOCK CABLE
45288-14F00
|
$5.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
