2009 Suzuki GSX-R 750 REAR SWINGING ARM OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|

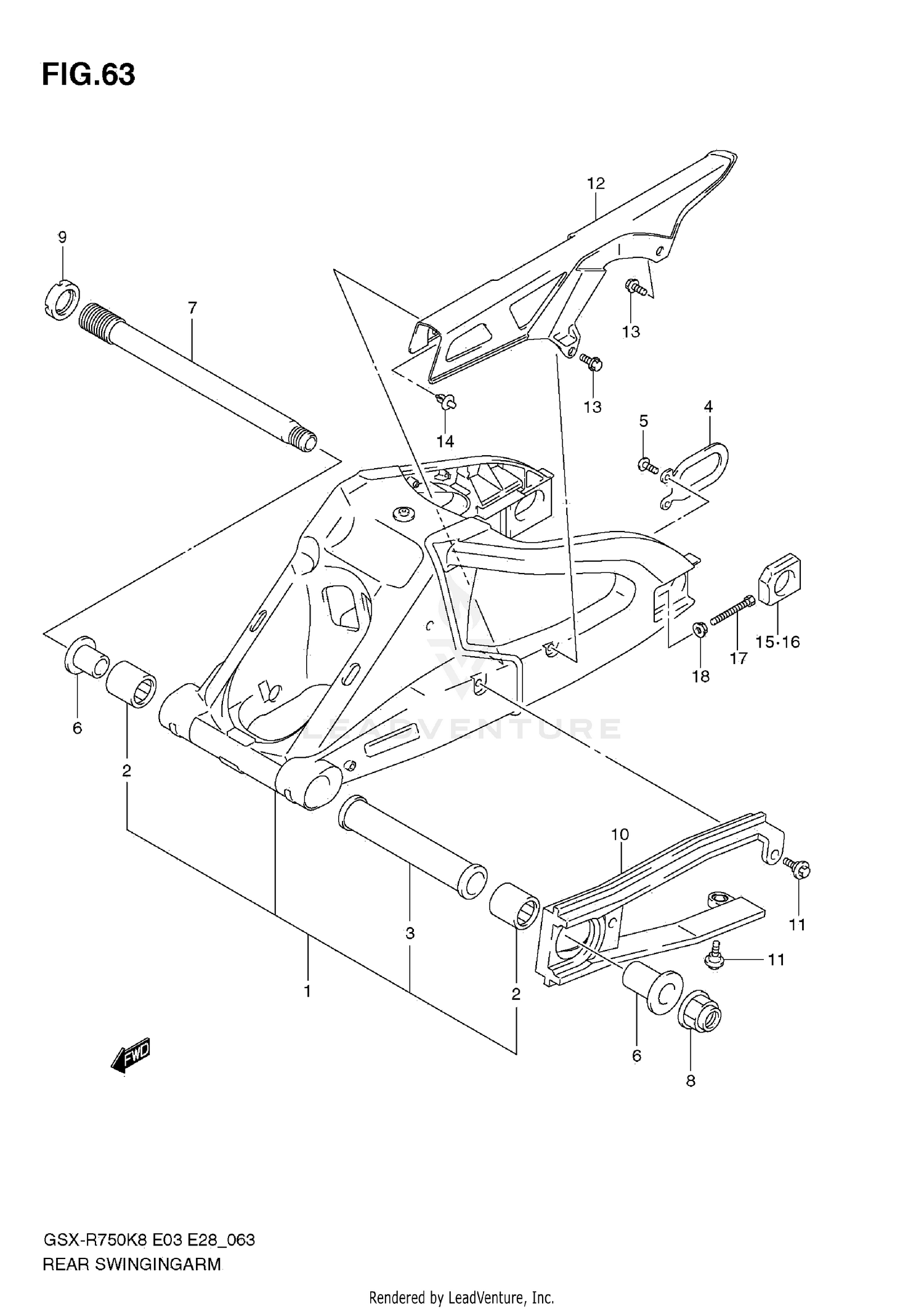

#1
SWINGING ARM ASSY, REAR (BLACK)
61000-01H10-YAP
|
$1,952.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
.BEARING (27X35X35)
09263-27013
Superseded by 09263-27015
|
$27.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
SPACER, CENTER
61281-41G00
|
$48.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
PLATE,RR SWGARM BRKT
61124-41G00
|
$7.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
SCREW
09125-06073
|
$1.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
SPACER, BEARING
61251-41G00
|
$39.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
SHAFT,RR SWGARM PIVOT
61211-01H00
|
$149.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
NUT
09159-20006
|
$26.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
NUT, PIVOT
61214-42E00
Superseded by 61214-42E10
|
$37.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
BUFFER, CHAIN TOUCH DEFENSE
61273-01H00
|
$54.37 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
SCREW
09111-06072
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
CASE, CHAIN
61311-01H10
|
$37.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
BOLT
09103-06289
|
$2.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
CLIP (BLACK)
09409-08308-5ES
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
ADJUSTER, CHAIN, R
61445-40F20
Superseded by 61445-40F00
|
$48.86 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
ADJUSTER, CHAIN, L
61446-40F10
Superseded by 61446-40F00
|
$48.86 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
BOLT (8X50)
09100-08287
|
$3.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
NUT
08316-1008A
|
$2.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
