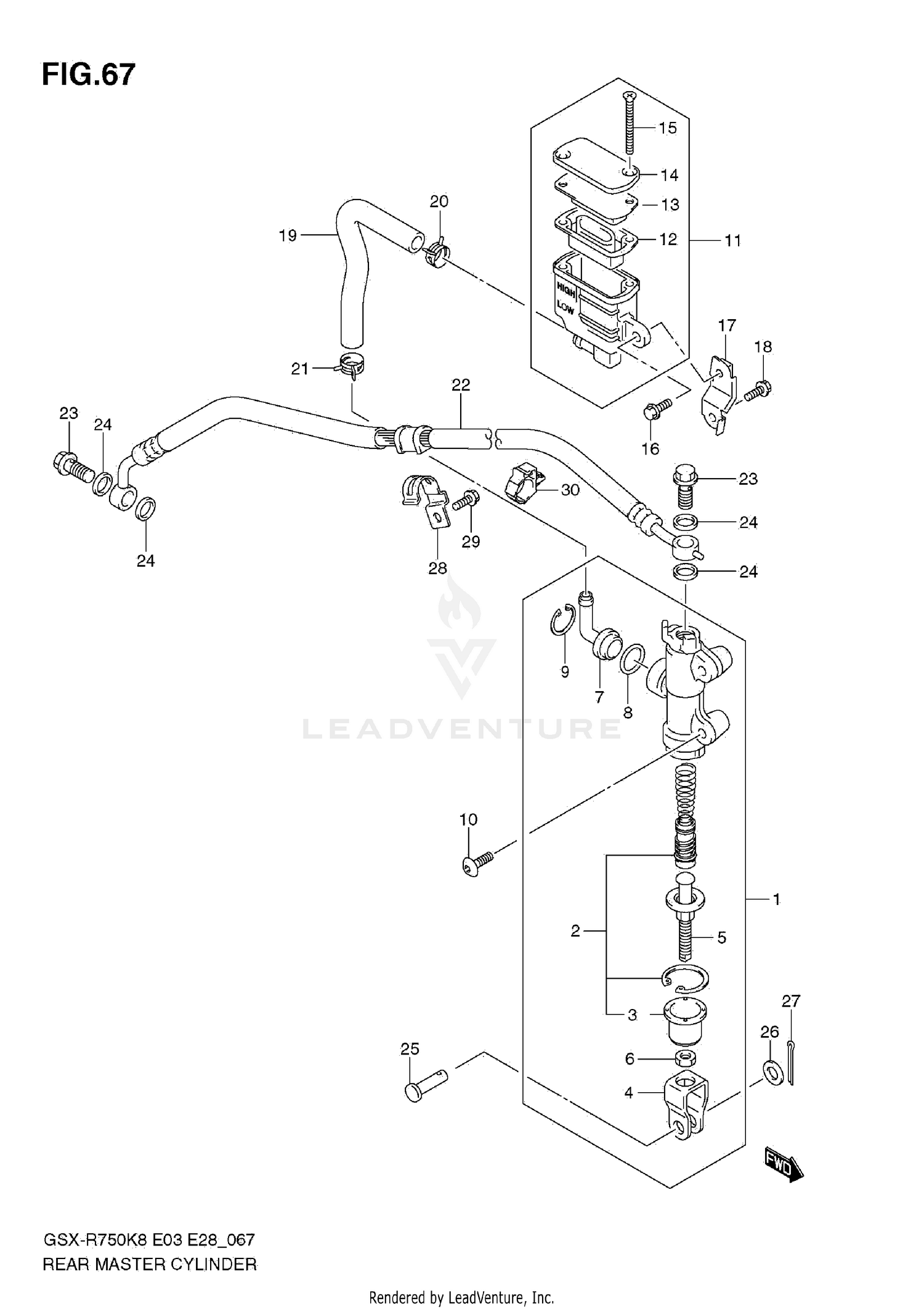

2009 Suzuki GSX-R 750 REAR MASTER CYLINDER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER ASSY, REAR MASTER
69600-01H20
|
$274.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
PISTON / CAP SET
69600-34820
|
$40.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
BOOT
69691-00A00
|
$5.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
YOKE
69692-22H00
|
$14.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
ROD, PUSH
69670-01H00
|
$21.11 | ||
|
Unavailable |
|||
|
#6
NUT
69693-05A00
|
$1.74 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
CONNECTOR
69672-00B20
|
$7.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
O RING
69686-34200
|
$3.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
CIRCLIP
69674-00B20
|
$4.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
BOLT
09139-06125
|
$3.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
TANK ASSY, REAR RESERVOIR
69740-01H10
Superseded by 69740-18K00
|
$29.10 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
DIAPHRAGM
69667-01H00
|
$5.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
PLATE, DIAPHRAGM
69668-01H00
|
$5.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
CAP
69669-01H00
|
$11.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
SCREW
69689-01H00
|
$3.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
BOLT, RESERVOIR TANK
01547-0612A
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
BRACKET, RR RESERVOIR TANK
69750-01H00
|
$10.33 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
BOLT, BRACKET
01547-0612A
|
$2.00 | ||
|
Unavailable |
|||
|
#19
HOSE, RESERVOIR TANK
69730-01H10
|
$27.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
CLAMP
09401-12404
|
$2.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
CLIP, LOWER
09401-14410
|
$1.92 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
HOSE
69480-01H00
Superseded by 69480-01H01
|
$86.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
BOLT, BRAKE FLUID
09360-10062
|
$6.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
WASHER (10X15X1.5)
09161-10009
|
$1.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
PIN
09200-06068
|
$4.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
WASHER
08322-0106A
|
$1.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
PIN, COTTER
04111-2015A
|
$1.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
CLAMP, RR BRAKE HOSE
69268-01H00
|
$9.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
BOLT
01547-0612A
|
$2.00 | ||
|
Unavailable |
|||
|
#30
GUIDE, RR BRAKE HOSE
09403-17306
|
$2.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
