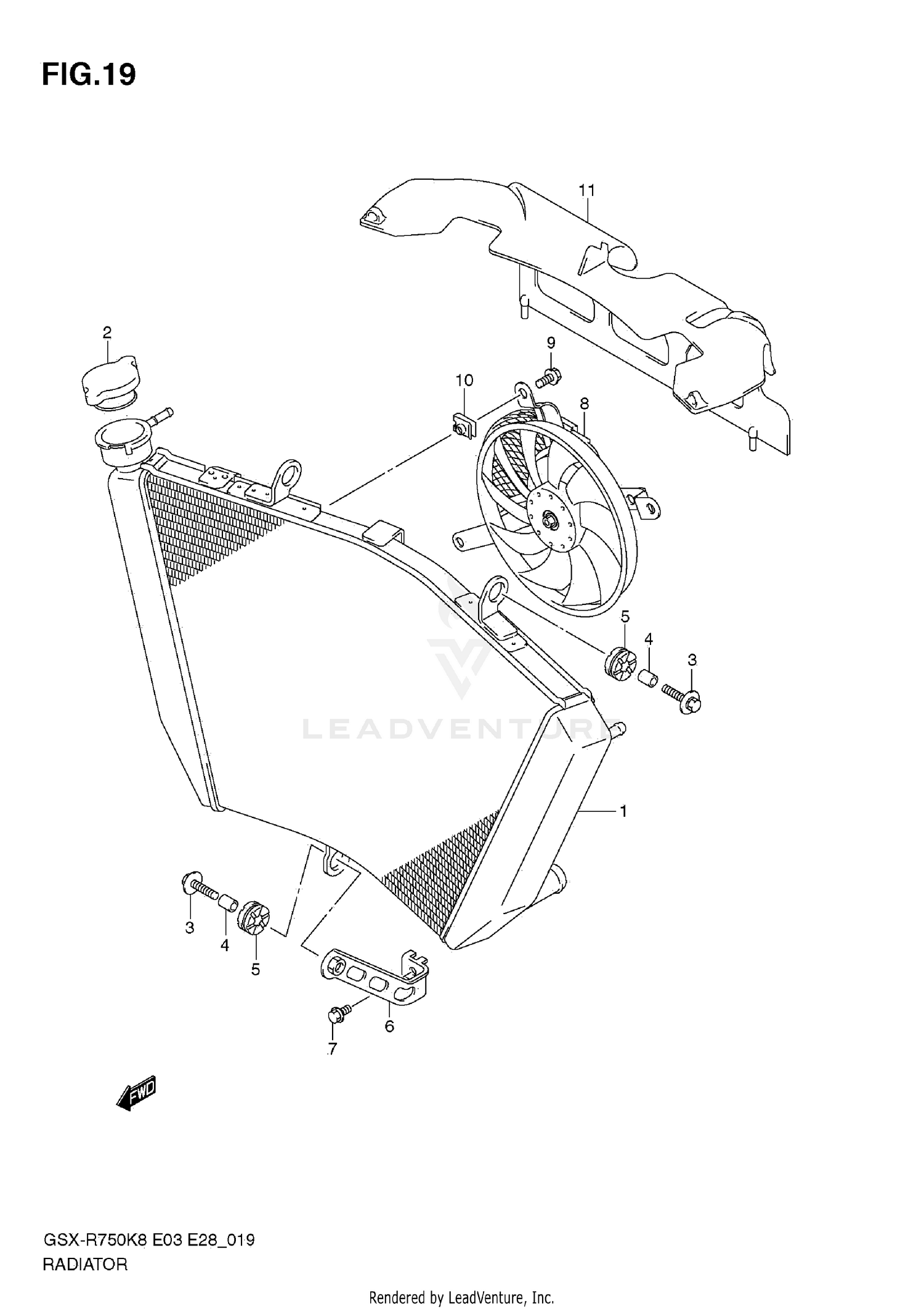

2009 Suzuki GSX-R 750 RADIATOR OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR ASSY, WATER
17710-01H10
|
$979.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
CAP
17730-14G00
|
$44.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
BOLT
09118-06097
|
$2.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
SPACER
09180-06290
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
CUSHION
09320-10051
|
$3.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
BRACKET
17750-01H00
|
$10.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
BOLT
01550-0612A
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
FAN ASSY, RADIATOR
17800-01H00
|
$623.56 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
BOLT,FAN ASSY
17711-14G00
|
$3.59 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
NUT
17802-14F00
|
$3.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
SHIELD, HEAT
17771-37H00
|
$65.27 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
