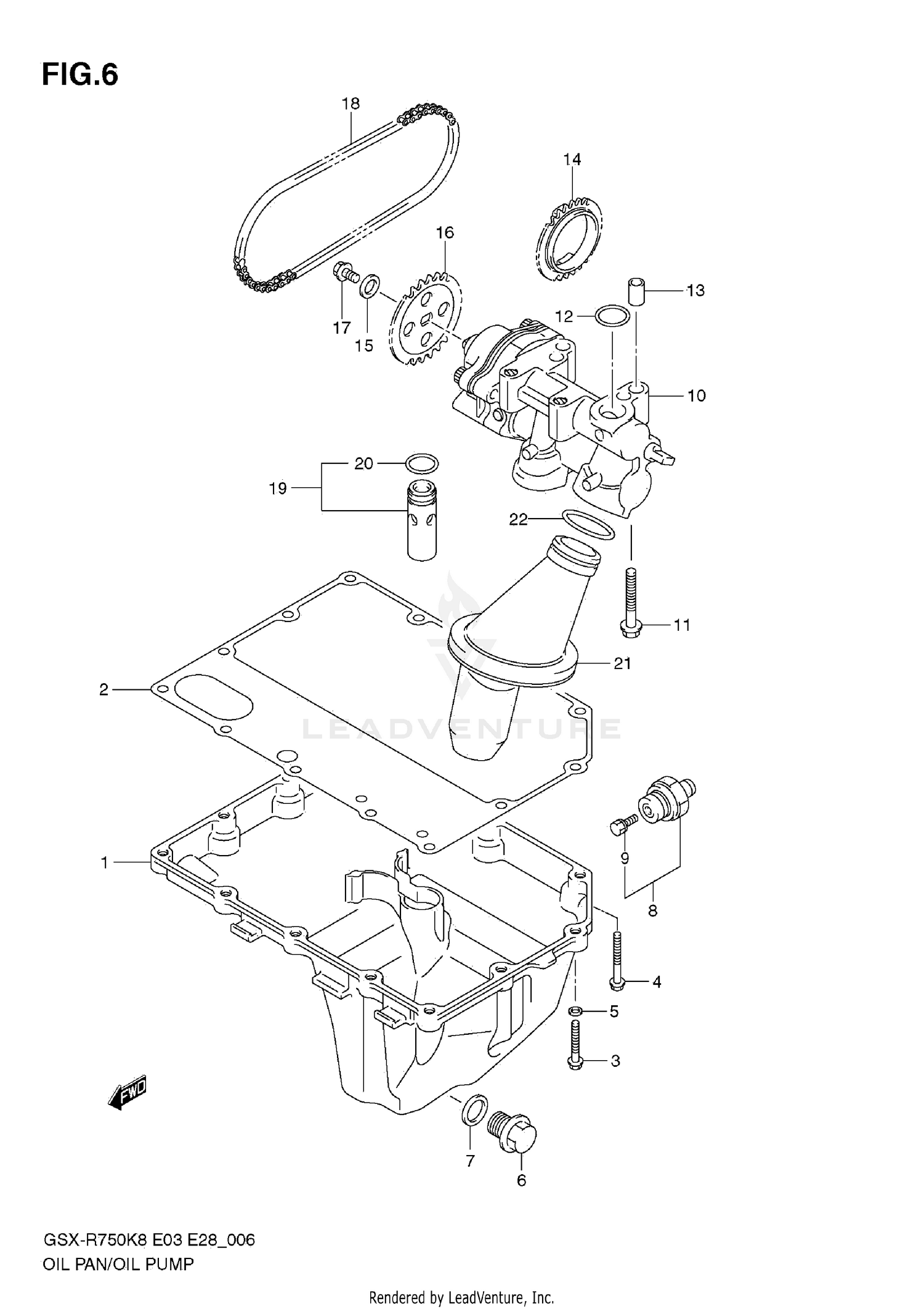

2009 Suzuki GSX-R 750 OIL PAN - OIL PUMP OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PAN,OIL
11511-01H00
|
$222.24 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
GASKET
11489-01H01
|
$15.97 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
BOLT
01547-0625A
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
BOLT (6X30)
09103-06204
|
$2.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
GASKET (5.8X13X1.2)
09168-06023
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
PLUG, OIL DRAIN
09247-14036
|
$6.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
GASKET
09168-14002
|
$2.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
SWITCH, OIL PRESSURE
37820-33D10
|
$36.31 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
BOLT
37822-33D00
|
$3.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
PUMP ASSY, OIL
16400-01H00
|
$226.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
BOLT
01547-0635A
|
$2.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
O RING
09280-15007
|
$1.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
PIN
04211-09149
|
$1.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
SPROCKET, DRIVE
16321-01H00
|
$67.35 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
WASHER
09181-10158
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
SPROCKET, DRIVEN
16331-01H00
|
$21.86 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
BOLT (6X12)
09103-06285
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
CHAIN ASSY,OIL PUMP DRIVE
16310-01H00
|
$29.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
VALVE ASSY, OIL RELIEF
16440-24F00
|
$51.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
O RING (D:1.9,ID:13.0)
09280-13004
|
$2.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
STRAINER, ENGINE OIL NO.1
16520-01H00
Superseded by 16520-01H01
|
$29.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
O RING
09280-25004
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
